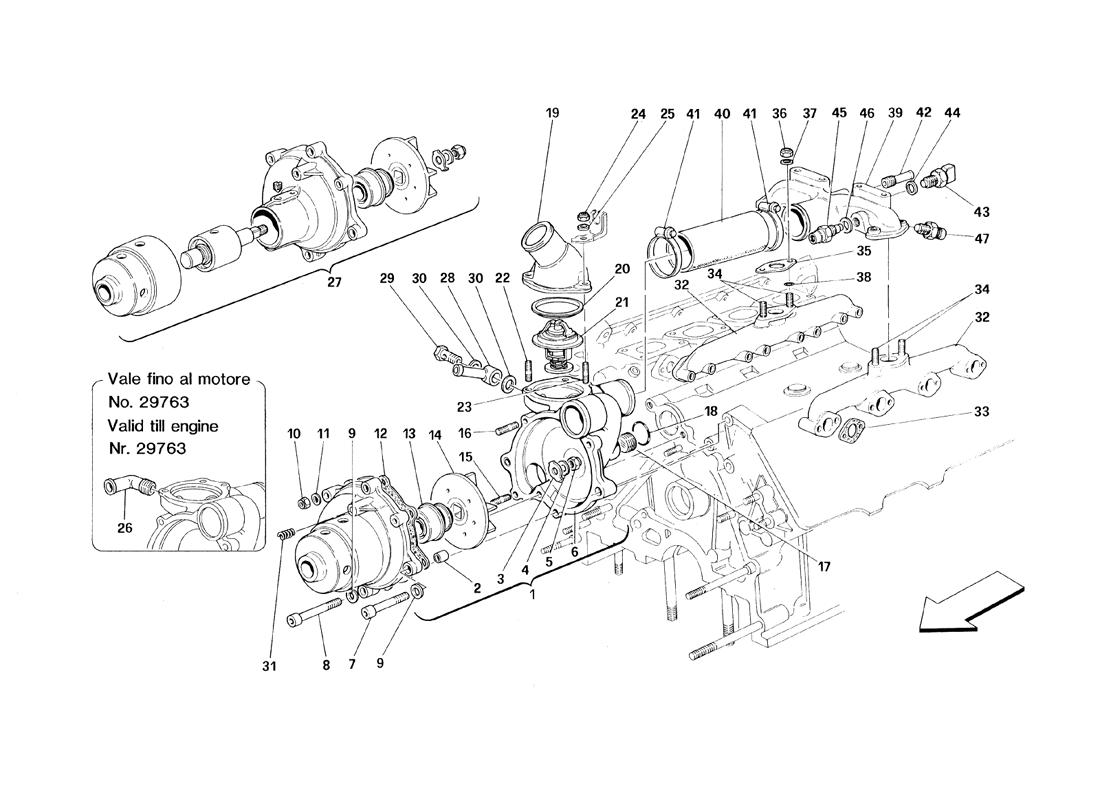

WATER PUMP

Go to Split View

WATER PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 152429 *Qty: 1 COMPLETE WATER PUMP Superseded
Location: 2 Prev | Next Part: 102704 *Qty: 2 DOWEL $19.74
Location: 3 Prev | Next Part: 139457 *Qty: 1 PLATE $11.41
Location: 4 Prev | Next Part: 10730321 *Qty: 1 WASHER $0.90
Location: 5 Prev | Next Part: 100436 *Qty: 1 NUT $13.30
Location: 6 Prev | Next Part: 156350 *Qty: 1 WATER PUMP BODY WITH STUDS $1,018.74
Location: 7 Prev | Next Part: 14306921 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 14302221 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 12575411 *Qty: 4 NUT Superseded
Location: 11 Prev | Next Part: 12639701 *Qty: 4 WASHER Call
Location: 12 Prev | Next Part: 132979 *Qty: 1 GASKET $35.36
Location: 13 Prev | Next Part: 183759 *Qty: 1 SEAL RING $39.84
Location: 14 Prev | Next Part: 132599 *Qty: 1 WATER PUMP IMPELLER Superseded
Location: 15 Prev | Next Part: 13541124 *Qty: 1 STUD $8.43
Location: 16 Prev | Next Part: 13541321 *Qty: 3 STUD Superseded
Location: 17 Prev | Next Part: 10268450 *Qty: 1 PLUG $2.95
Location: 18 Prev | Next Part: 101044 *Qty: 1 O.R. GASKET $5.00
Location: 19 Prev | Next Part: 136570 *Qty: 1 THERMOSTATIC VALVE COVER $109.79
Location: 20 Prev | Next Part: 105192 *Qty: 1 GASKET $21.41
Location: 21 Prev | Next Part: 130346 *Qty: 1 THERMOSTAT Superseded
Location: 22 Prev | Next Part: 13541124 *Qty: 2 STUD $8.43
Location: 23 Prev | Next Part: 13541221 *Qty: 1 STUD Superseded
Location: 24 Prev | Next Part: 12574211 *Qty: 3 NUT Superseded
Location: 25 Prev | Next Part: 12639701 *Qty: 3 WASHER Call
Location: 26 Prev | Next Part: 150919 *Qty: 1 UNION
Valid till engine Nr. 29763 Not as spare part now Replaced by 152416. 152417 and 10259960
$32.21
Location: 27 Prev | Next Part: 143275 *Qty: 1 FRONT PART COMPLETE WATER PUMP $1,449.00
Location: 28 Prev | Next Part: 152416 *Qty: 1 UNION
Valid from engine Nr. 29764
$61.49
Location: 29 Prev | Next Part: 152417 *Qty: 1 UNION
Valid from engine Nr. 29764
$119.55
Location: 30 Prev | Next Part: 10259960 *Qty: 2 GASKET
Valid from engine Nr. 29764
$0.90
Location: 31 Prev | Next Part: 13525470 *Qty: 1 THREADED INSERT $0.90
Location: 32 Prev | Next Part: 138852 *Qty: 2 WATER MANIFOLD $2,715.68
Location: 33 Prev | Next Part: 132980 *Qty: 8 GASKET $1.93
Location: 34 Prev | Next Part: 13516821 *Qty: 4 STUD $1.10
Location: 35 Prev | Next Part: 132981 *Qty: 2 GASKET $4.60
Location: 36 Prev | Next Part: 16100811 *Qty: 4 NUT Superseded
Location: 37 Prev | Next Part: 11198079 *Qty: 4 WASHER Superseded
Location: 38 Prev | Next Part: 103039 *Qty: 4 O.R. GASKET $1.18
Location: 39 Prev | Next Part: 138027 *Qty: 1 WATER OUTLET MANIFOLD CONNECTION DUCT
Valid for M. 2.5
$141.14
Location: 39 Prev | Next Part: 144246 *Qty: 1 WATER OUTLET MANIFOLD CONNECTION DUCT
Valid for M. 2.7
$440.38
Location: 40 Prev | Next Part: 138981 *Qty: 1 SLEEVE $44.14
Location: 41 Prev | Next Part: 12177090 *Qty: 2 SCREW COLLAR Superseded
Location: 42 Prev | Next Part: 106241 *Qty: 1 UNION $40.00
Location: 43 Prev | Next Part: 125769 *Qty: 2 TEMPERATURE SENSOR $32.54
Location: 44 Prev | Next Part: 10298460 *Qty: 2 GASKET $0.90
Location: 45 Prev | Next Part: 136304 *Qty: 1 THERMOMETRIC SWITCH $58.57
Location: 46 Prev | Next Part: 10298460 *Qty: 1 GASKET $0.90
Location: 47 Prev | Next Part: 104628 *Qty: 1 THERMISTOR $69.95

* Quantity shown indicates the number of pieces used in the diagram.
