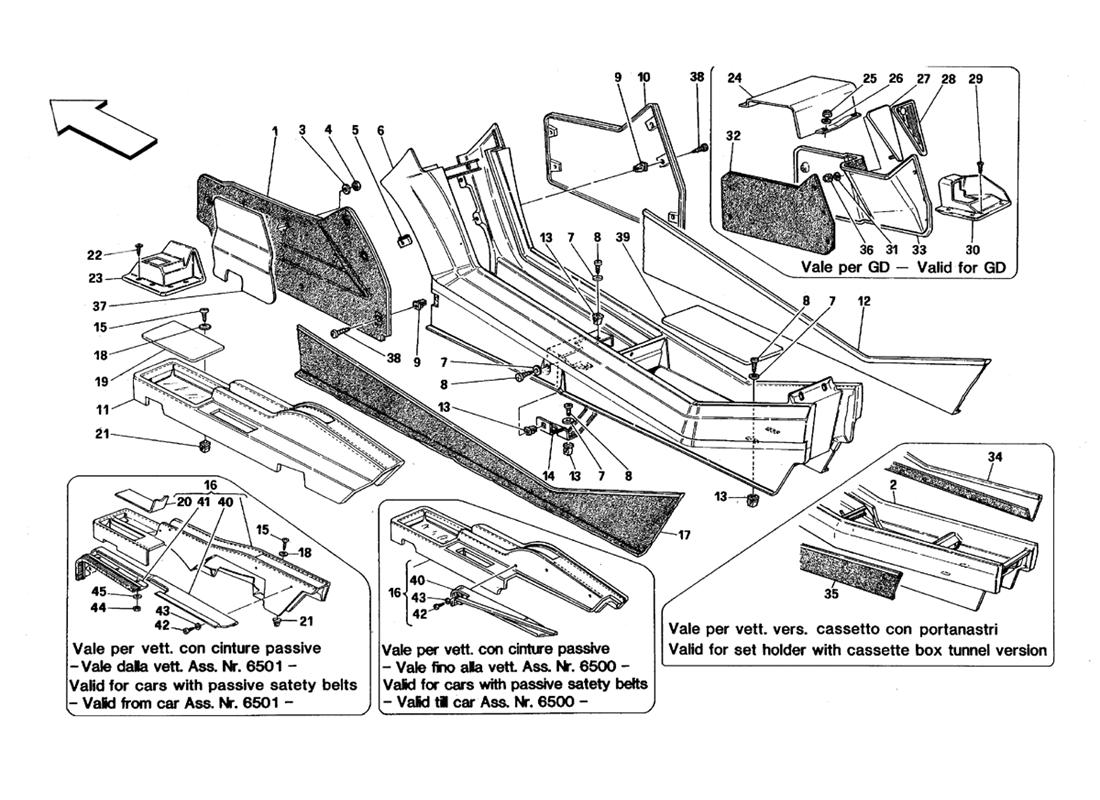

TUNNEL - FRAMEWORK AND TRIMS - VALID FOR TB

Go to Split View

TUNNEL - FRAMEWORK AND TRIMS - VALID FOR TB

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 63376800 *Qty: 1 COVERED R.H. FRONT FACING
Red Not for GD Valid from car Ass. Nr. 7575
Call
Location: - Prev | Next Part: 63377000 *Qty: 1 COVERED R.H. FRONT FACING
Dark brown Not for GD Valid from car Ass. Nr. 7575
Call
Location: 1 Prev | Next Part: 621486.. *Qty: 1 CARPETTRIM
Not for GD Valid till car Ass. Nr. 7574
Call
Location: 1 Prev | Next Part: 63376200 *Qty: 1 COVERED L.H. FRONT FACING
Beaver Not for GD Valid from car Ass. Nr. 7575
Call
Location: 1 Prev | Next Part: 63376400 *Qty: 1 COVERED L.H. FRONT FACING
Blue Not for GD Valid from car Ass. Nr. 7575
Call
Location: 1 Prev | Next Part: 63376500 *Qty: 1 COVERED L.H. FRONT FACING
Dark brown Not for GD Valid from car Ass. Nr. 7575
Call
Location: 1 Prev | Next Part: 63376300 *Qty: 1 COVERED L.H. FRONT FACING
Red Not for GD Valid from car Ass. Nr. 7575
Call
Location: 1 Prev | Next Part: 63376100 *Qty: 1 COVERED L.H. FRONT FACING
Not for GD--Valid from car Ass. Nr. 7575
Call
Location: 1 Prev | Next Part: 62148500 *Qty: 1 LH. FRONT FACING FRAMEWORK
Without trim Not for GD valid till car Ass. Nr. 7574
$242.52
Location: 2 Prev | Next Part: 63376900 *Qty: 1 COVERED R.H. FRONT FACING
Blue Not for GD Valid from car Ass. Nr. 7575
Call
Location: 2 Prev | Next Part: 632839.. *Qty: 1 COVERED TUNNEL
Not for GD Valid for set holder with cassette box car version
Call
Location: 2 Prev | Next Part: 632869.. *Qty: 1 COVERED TUNNEL
Valid for GD Valid for set holder with cassette box car version
Call
Location: 2 Prev | Next Part: 633385.. *Qty: 1 L.H. SIDE TRIM
Valid for set holder with cassette boxcar version
Call
Location: 2 Prev | Next Part: 633384.. *Qty: 1 R.H. SIDE TRIM
Valid for set holder with cassette box car version
Call
Location: 3 Prev | Next Part: 12637801 *Qty: 5 WASHER
Not for GD
Superseded
Location: 4 Prev | Next Part: 10794011 *Qty: 5 NUT
Not for GD
$0.90
Location: 5 Prev | Next Part: 14189876 *Qty: 4 BRACKET $1.75
Location: 6 Prev | Next Part: 629963.. *Qty: 1 FRONT TRIM FOR GLOVE BOX
Valid for set holder with key car version
Call
Location: 6 Prev | Next Part: 632957.. *Qty: 1 LH. SIDE TRIM
Valid for set holder with key car version
Call
Location: 6 Prev | Next Part: 632956.. *Qty: 1 R.H. SIDE TRIM
Valid for set holder with key car version
Call
Location: 6 Prev | Next Part: 629964.. *Qty: 1 REAR TRIM FOR GLOVE BOX
Valid for set holder with key car version
Call
Location: 6 Prev | Next Part: 628774.. *Qty: 1 UPHOLSTERED TUNNEL
Not for GD Valid for set holder with key car version
Call
Location: 6 Prev | Next Part: 628775.. *Qty: 1 UPHOLSTERED TUNNEL
Valid for GD Valid for set holder with key car version
Call
Location: 7 Prev | Next Part: 12638177 *Qty: 6 WASHER Superseded
Location: 8 Prev | Next Part: 15688375 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 14202782 *Qty: 5 BLOCK $0.90
Location: 10 Prev | Next Part: 621483.. *Qty: 1 CARPETTRIM
Not for GD Valid till car Ass. Nr. 7574
Call
Location: 10 Prev | Next Part: 63376700 *Qty: 1 COVERED R.H. FRONT FACING
Beaver Not for GD Valid from car Ass. Nr. 7575
$232.88
Location: 10 Prev | Next Part: 63376600 *Qty: 1 COVERED R.H. FRONT FACING
Black Not for GD Valid from car Ass. Nr. 7575
$172.14
Location: 10 Prev | Next Part: 62148200 *Qty: 1 R.H. FRONT FACING FRAMEWORK
Without trim Not for GD Valid till car Ass. Nr. 7574
$242.52
Location: 11 Prev | Next Part: 626849.. *Qty: 1 COVERED HAND BRAKE CONSOLE
Not for GD Valid for cars without passive safety belts
Call
Location: 12 Prev | Next Part: 628490.. *Qty: 1 COVERED HAND BRAKE CONSOLE
Valid for GD
Call
Location: 12 Prev | Next Part: 626850.. *Qty: 1 LINING
Not for GD Valid for cars without passive safety belts
Call
Location: 12 Prev | Next Part: 628492.. *Qty: 1 LINING
Valid for GD
Call
Location: 12 Prev | Next Part: - *Qty: 1 R.H. TRIM FOR CARPET
Valid for set holder with key tunnel version Not as spare part With the carpet trim series
Call
Location: 13 Prev | Next Part: 14202782 *Qty: 6 BLOCK $0.90
Location: 14 Prev | Next Part: 62146900 *Qty: 1 TUNNEL FIXING BRACKET $5.09
Location: 15 Prev | Next Part: 15688178 *Qty: 3 SCREW $2.31
Location: 16 Prev | Next Part: 626850.. *Qty: 1 CONSOLETRIM
Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
Call
Location: 16 Prev | Next Part: 633083.. *Qty: 1 CONSOLETRIM
Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
Call
Location: 16 Prev | Next Part: 626845.. *Qty: 1 COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
Call
Location: 16 Prev | Next Part: 633081.. *Qty: 1 COVERED PARKING BRAKE CONSOLE WITH COVERED PROTECTION
Valid for cars with passive safely belts Valid from car Ass. Nr. 6501
Call
Location: 17 Prev | Next Part: - *Qty: 1 L.H. TRIM FOR CARPET
Valid for set holder with key tunnel version Not as spare part With the carpet trim series
Call
Location: 18 Prev | Next Part: 12638177 *Qty: 3 WASHER Superseded
Location: 19 Prev | Next Part: 626842.. *Qty: 1 HAND BRAKE CONSOLE CASING MOULDING
Valid for cars with pasive safety belts till car Ass. Nr. 6500
Call
Location: 20 Prev | Next Part: 633091.. *Qty: 1 HAND BRAKE CONSOLE CASING MOULDING
Valid for cars with passive safety belts Valid from car Ass. Nr. 6501
Call
Location: 21 Prev | Next Part: 14115980 *Qty: 3 BLOCK $0.90
Location: 22 Prev | Next Part: 15914707 *Qty: 4 SCREW
Not for GD
$0.90
Location: 23 Prev | Next Part: 62844600 *Qty: 1 IACCELERATOR PEDAL COVER
Not for GD
$310.83
Location: 24 Prev | Next Part: 63002600 *Qty: 1 ACCELERATOR PEDAL TRANSMISSION PROTECTION
Valid for GD
Call
Location: 25 Prev | Next Part: 12575411 *Qty: 4 NUT
Valid for GD
Superseded
Location: 26 Prev | Next Part: 10519401 *Qty: 4 WASHER
Valid for GD
Superseded
Location: 27 Prev | Next Part: 63222500 *Qty: 1 feASE HOLDER
Valid for GD
$32.26
Location: 28 Prev | Next Part: 62986300 *Qty: 1 PILOT FOOT REST SUPPORT BASE
Valid for GD
$85.96
Location: 29 Prev | Next Part: 15914707 *Qty: 4 SCREW
Valid for GD
$0.90
Location: 30 Prev | Next Part: 63006900 *Qty: 1 ACCELERATOR PEDAL COVER
Valid for GD
$22.96
Location: 31 Prev | Next Part: 12642801 *Qty: 2 WASHER
Valid for GD
$0.90
Location: 32 Prev | Next Part: 62178000 *Qty: 1 L.H. FRONT FACING FRAMEWORK
Without trim Valid for GD Valid till car Ass. Nr. 9472
$90.55
Location: 32 Prev | Next Part: 621779.. *Qty: 1 CARPETTRIM
Valid for GD Valid till car Ass. Nr. 9472
Call
Location: 32 Prev | Next Part: 63558400 *Qty: 1 COVERED L.H. FRONT FACING
Dark brown Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 32 Prev | Next Part: 63558300 *Qty: 1 COVERED L.H. FRONT FACING
Blue Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 32 Prev | Next Part: 63558200 *Qty: 1 COVERED L.H. FRONT FACING
Red Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 32 Prev | Next Part: 63558100 *Qty: 1 COVERED L.H. FRONT FACING
Beaver Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 32 Prev | Next Part: 63558000 *Qty: 1 COVERED L.H. FRONT FACING
Black Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 33 Prev | Next Part: 621776.. *Qty: 1 CARPETTRIM
Valid for GD Valid till car Ass. Nr. 9472
Call
Location: 33 Prev | Next Part: 63557200 *Qty: 1 COVERED R.H. FRONT FACING
Black Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 33 Prev | Next Part: 63557600 *Qty: 1 COVERED R.H. FRONT FACING
Dark brown Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 33 Prev | Next Part: 63557400 *Qty: 1 COVERED R.H. FRONT FACING
Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 33 Prev | Next Part: 63557300 *Qty: 1 COVERED R.H. FRONT FACING
Beaver Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 33 Prev | Next Part: 63557500 *Qty: 1 COVERED R.H. FRONT FACING
Blue Valid for GD Valid from car Ass. Nr. 9473
Call
Location: 33 Prev | Next Part: 62177700 *Qty: 1 R.H. FRONT FACING FRAMEWORK
Without trim Valid for GD Valid till car Ass. Nr. 9472
$150.76
Location: 34 Prev | Next Part: - *Qty: 1 R.H. CARPET UPHOLSTERY
Valid for set holder with cassette box tunnel version Not as spare part With the carpet trim series
Call
Location: 35 Prev | Next Part: - *Qty: 1 LH. CARPET UPHOLSTERY
Valid for set holder with cassette box tunnel version Not as spare part With the carpet trim series
Call
Location: 36 Prev | Next Part: 12574011 *Qty: 2 NUT
Valid for GD
Superseded
Location: 37 Prev | Next Part: 62148700 *Qty: 1 PROTECTION FOR L.H. FRONT FACING FRAMEWORK
Not for GD
$38.70
Location: 38 Prev | Next Part: 15687708 *Qty: 9 SCREW Call
Location: 39 Prev | Next Part: 621445.. *Qty: 1 COVERED BOX BOTTOM
Valid for set holder with key tunnel version
Call
Location: 40 Prev | Next Part: 628959.. *Qty: 1 TRIM PROTECTION
Valid for cars with passive safety belts Valid till car Ass. Nr. 6500
Call
Location: 40 Prev | Next Part: 633087.. *Qty: 1 TRIM PROTECTION
valid for cars with passive safety belts valid from car Ass.Nr. 6501
Call
Location: 40 Prev | Next Part: 633089.. *Qty: 1 PROTECTION TRIM
valid for cars with passive safety belts valid from car Ass.Nr. 6501
Call
Location: 40 Prev | Next Part: 628963.. *Qty: 1 PROTECTION TRIM
valid for cars with passive safety belts valid till car Ass.Nr. 6500
Call
Location: 41 Prev | Next Part: 63309000 *Qty: 1 BRUSH
valid for cars with passive safety belts valid from car Ass.Nr. 6501
$112.43
Location: 42 Prev | Next Part: 15957201 *Qty: 5 SCREW
valid for cars with passive safety belts valid till car Ass.Nr. 6500
$0.90
Location: 43 Prev | Next Part: 14497701 *Qty: 5 WASHER
valid for cars with passive safety belts till car Ass.Nr. 6500
$0.90
Location: 44 Prev | Next Part: 16101711 *Qty: 4 NUT
valid for cars with passive safety belts valid from car Ass.Nr. 6501
$0.90
Location: 45 Prev | Next Part: 13577411 *Qty: 4 WASHER
valid for cars with passive safety belts valid from car Ass.Nr. 6501
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
