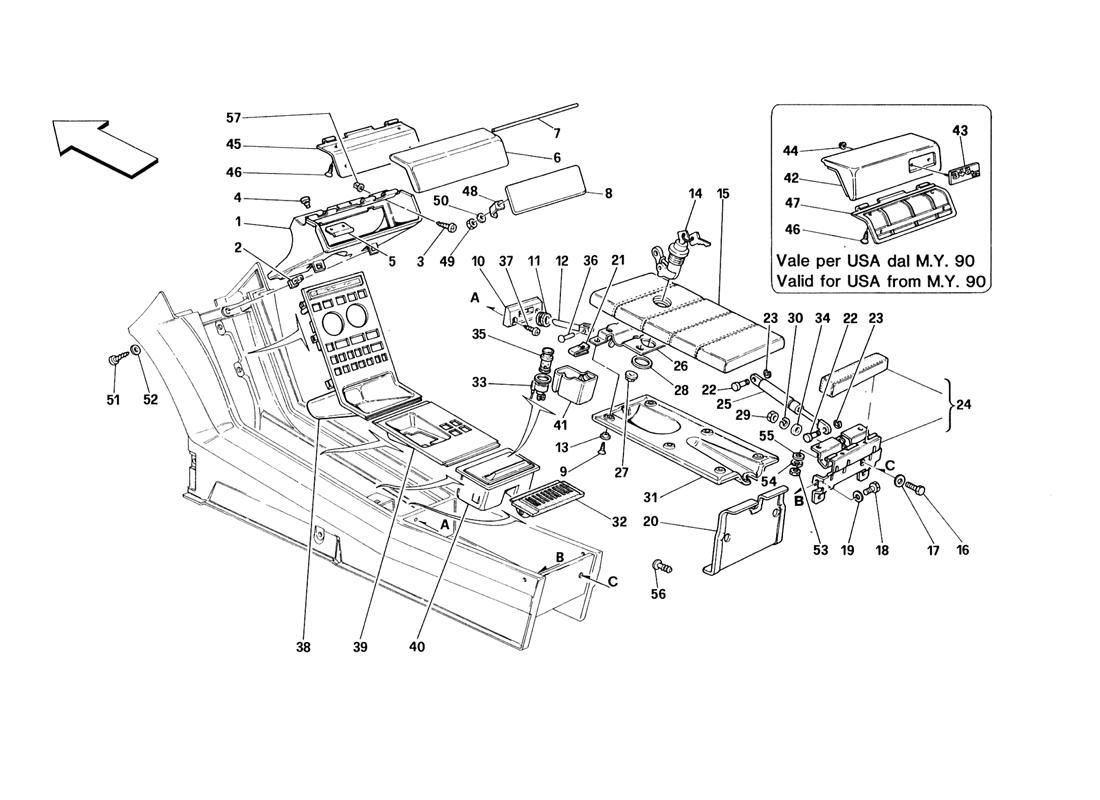

TUNNEL - ACCESSORIES - VALID FOR TS - SET HOLDER WITHOUT DOOR VERSION

Go to Split View

TUNNEL - ACCESSORIES - VALID FOR TS - SET HOLDER WITHOUT DOOR VERSION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62147100 *Qty: 1 RADIO CASING $470.34
Location: 2 Prev | Next Part: 14202782 *Qty: 2 BLOCK $0.90
Location: 3 Prev | Next Part: 15688375 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 14624487 *Qty: 1 RUBBER PLUG Superseded
Location: 5 Prev | Next Part: 62147900 *Qty: 1 SPRING FOR DOOR $83.20
Location: 6 Prev | Next Part: 621474.. *Qty: 1 COVERED CAR RADIO OUTER SET HOLDER
Not for USA from M.Y. 90
Call
Location: 6 Prev | Next Part: 621477.. *Qty: 1 DOORTRIM
Not for USA from M.Y. 90
Call
Location: 7 Prev | Next Part: 62147800 *Qty: 1 PIN FOR DOOR $3.39
Location: 8 Prev | Next Part: 62993700 *Qty: 1 COVERED INNER GLOVE BOX PLATE $36.96
Location: 9 Prev | Next Part: 15915807 *Qty: 6 SCREW $0.90
Location: 10 Prev | Next Part: 62195600 *Qty: 1 STRIKER PLATE FOR LOCK $41.27
Location: 11 Prev | Next Part: 62195700 *Qty: 1 BUSHING $11.56
Location: 12 Prev | Next Part: 62196700 *Qty: 1 LOCK ROD $9.68
Location: 13 Prev | Next Part: 12612207 *Qty: 6 WASHER Call
Location: 14 Prev | Next Part: 62652300 *Qty: 1 LOCK COMPLETE WITH KEY Superseded
Location: 14 Prev | Next Part: 95401030 *Qty: 1 LOCK RAW KEY $10.33
Location: 15 Prev | Next Part: 621610.. *Qty: 1 COVERED MOVABLE DOOR Call
Location: 15 Prev | Next Part: 632320.. *Qty: 1 LINING Call
Location: 16 Prev | Next Part: 13313011 *Qty: 1 SCREW $0.90
Location: 17 Prev | Next Part: 12611442 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 10902011 *Qty: 2 SCREW $8.96
Location: 19 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 621618.. *Qty: 1 COVERED REAR INSERT Call
Location: 21 Prev | Next Part: 62366700 *Qty: 6 BRACKET FOR SCREW $0.90
Location: 22 Prev | Next Part: 62162800 *Qty: 2 PIN $8.05
Location: 23 Prev | Next Part: 11087576 *Qty: 2 FLEXIBLE RING $0.90
Location: 24 Prev | Next Part: 621614.. *Qty: 1 COVERED FIXED COMPLETE DOOR Call
Location: 25 Prev | Next Part: 62146200 *Qty: 1 DOOR STABILUS $121.83
Location: 26 Prev | Next Part: 62195800 *Qty: 1 LOCK SUPPORT PLATE $5.44
Location: 27 Prev | Next Part: 13831801 *Qty: 4 NUT $0.90
Location: 28 Prev | Next Part: 62195500 *Qty: 1 WASHER $2.54
Location: 29 Prev | Next Part: 15896211 *Qty: 1 NUT Superseded
Location: 30 Prev | Next Part: 106850 *Qty: 1 WASHER Superseded
Location: 31 Prev | Next Part: 621622.. *Qty: 1 LINING Call
Location: 31 Prev | Next Part: 621621.. *Qty: 1 DOOR LOWER TRIM Call
Location: 32 Prev | Next Part: 62146500 *Qty: 1 PLATE FOR MONEY Call
Location: 33 Prev | Next Part: 61107600 *Qty: 1 CIGAR LIGHTER BODY Call
Location: 34 Prev | Next Part: 12646601 *Qty: 1 WASHER $0.90
Location: 35 Prev | Next Part: 61107500 *Qty: 1 CIGAR LIGHTER Superseded
Location: 36 Prev | Next Part: 13764550 *Qty: 1 RIVET $0.90
Location: 37 Prev | Next Part: 12669701 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 146375 *Qty: 1 CONSOLE PLATE Call
Location: 39 Prev | Next Part: 147111 *Qty: 1 TUNNEL PLATE
Not for GD
$209.37
Location: 39 Prev | Next Part: 147112 *Qty: 1 TUNNEL PLATE
Valid for GD
$280.34
Location: 40 Prev | Next Part: 62146600 *Qty: 1 ASH TRAY
Only part. 41 included
Call
Location: 41 Prev | Next Part: - *Qty: 1 ASHTRAY PAN
Not as spare part With the assembly 62146600
Call
Location: 42 Prev | Next Part: 622260.. *Qty: 1 COVERED CAR RADIO OUTER SET HOLDER
Valid for USA from M.Y. 90
Call
Location: 42 Prev | Next Part: 622261.. *Qty: 1 DOORTRIM
Valid for USA from M.Y. 90
Call
Location: 43 Prev | Next Part: 62990000 *Qty: 1 348 TS NAMEPLATE
Valid for USA from M.Y. 90
Call
Location: 44 Prev | Next Part: 60324506 *Qty: 2 CLIP
Valid for USA from M.Y. 90
Superseded
Location: 45 Prev | Next Part: 62147500 *Qty: 1 CAR RADIO GLOVE BOX INNER DOOR
Not for USA from M.Y. 90
$84.56
Location: 46 Prev | Next Part: 15669706 *Qty: 4 SCREW $0.90
Location: 47 Prev | Next Part: 62220600 *Qty: 1 CAR RADIO GLOVE BOX INNER DOOR
Valid for USA from M.Y. 90
Superseded
Location: 48 Prev | Next Part: 62993400 *Qty: 2 CLIP $2.10
Location: 49 Prev | Next Part: 16101711 *Qty: 2 NUT $0.90
Location: 50 Prev | Next Part: 10615179 *Qty: 2 WASHER Superseded
Location: 51 Prev | Next Part: 15688375 *Qty: 2 SCREW $0.90
Location: 52 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 53 Prev | Next Part: 15896211 *Qty: 2 NUT Superseded
Location: 54 Prev | Next Part: 106850 *Qty: 2 WASHER Superseded
Location: 55 Prev | Next Part: 10519401 *Qty: 2 WASHER Superseded
Location: 56 Prev | Next Part: 14591687 *Qty: 2 FIXING BUTTON $0.90
Location: 57 Prev | Next Part: 14115980 *Qty: 2 BLOCK $0.90

* Quantity shown indicates the number of pieces used in the diagram.
