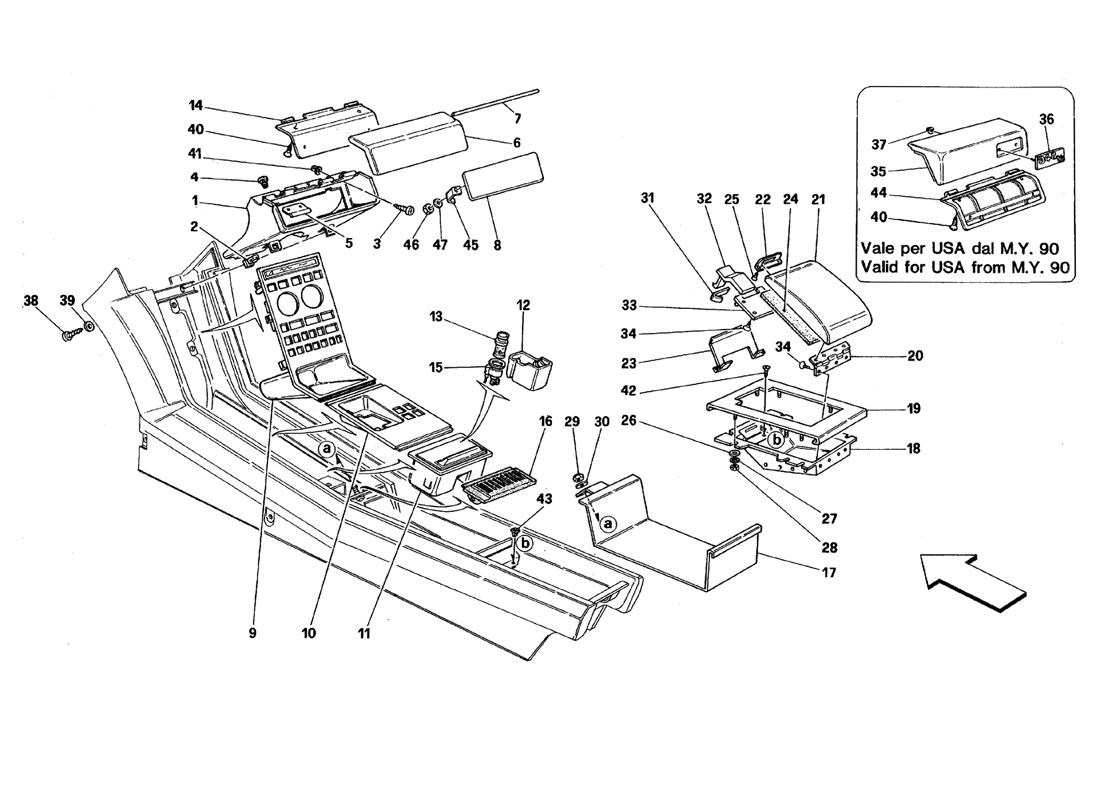

TUNNEL - ACCESSORIES - VALID FOR TB - DOOR WITH KEY VERSION-

Go to Split View

TUNNEL - ACCESSORIES - VALID FOR TB - DOOR WITH KEY VERSION-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62147100 *Qty: 1 RADIO CASING $485.04
Location: 2 Prev | Next Part: 14202782 *Qty: 2 BLOCK $0.90
Location: 3 Prev | Next Part: 15688375 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 14624487 *Qty: 1 RUBBER PLUG Superseded
Location: 5 Prev | Next Part: 62147900 *Qty: 1 SPRING FOR DOOR $85.80
Location: 6 Prev | Next Part: 621474.. *Qty: 1 COVERED CAR RADIO OUTER SET HOLDER
Not for USA from M.Y. 90
Call
Location: 6 Prev | Next Part: 621477.. *Qty: 1 DOORTRIM
Not for USA from M.Y. 90
Call
Location: 7 Prev | Next Part: 62147800 *Qty: 1 PIN FOR DOOR $3.50
Location: 8 Prev | Next Part: 62993700 *Qty: 1 COVERED INNER GLOVE BOX PLATE $36.96
Location: 9 Prev | Next Part: 146375 *Qty: 1 CONSOLE PLATE Call
Location: 10 Prev | Next Part: 147111 *Qty: 1 TUNNEL PLATE
Not for GD
$215.92
Location: 10 Prev | Next Part: 147112 *Qty: 1 TUNNEL PLATE
Valid for GD
$289.10
Location: 11 Prev | Next Part: 62146600 *Qty: 1 ASH TRAY
Only part. 12 included
Call
Location: 12 Prev | Next Part: - *Qty: 1 ASHTRAY PAN
Not as spare part With the assembly 62146600
Call
Location: 13 Prev | Next Part: 61107500 *Qty: 1 CIGAR LIGHTER Superseded
Location: 14 Prev | Next Part: 62147500 *Qty: 1 CAR RADIO GLOVE BOX INNER DOOR
Not for USA from M.Y. 90
$87.21
Location: 15 Prev | Next Part: 61107600 *Qty: 1 CIGAR LIGHTER BODY Call
Location: 16 Prev | Next Part: 62146500 *Qty: 1 PLATE FOR MONEY Call
Location: 17 Prev | Next Part: 633222.. *Qty: 1 GLOVE BOX BOTTOM COVER Call
Location: 17 Prev | Next Part: 633219.. *Qty: 1 LINING Call
Location: 18 Prev | Next Part: 61059000 *Qty: 1 CASSETTE BOX $15.60
Location: 19 Prev | Next Part: 63322300 *Qty: 1 SUPPORT FOR CASSETTE BOX $172.84
Location: 20 Prev | Next Part: 61059200 *Qty: 1 HINGE $27.16
Location: 21 Prev | Next Part: 610594.. *Qty: 1 CASSETTE BOX WITH MOULDING Call
Location: 21 Prev | Next Part: 610595.. *Qty: 1 LINING Call
Location: 22 Prev | Next Part: 61059900 *Qty: 1 BUTTON MOULDING $8.75
Location: 23 Prev | Next Part: 61059100 *Qty: 4 CASSETTE BOX SHIELD $2.09
Location: 24 Prev | Next Part: 61060000 *Qty: 1 INNER DOOR TRIM $5.09
Location: 25 Prev | Next Part: 15913508 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 20159109 *Qty: 8 WASHER $0.90
Location: 27 Prev | Next Part: 10615179 *Qty: 8 WASHER Superseded
Location: 28 Prev | Next Part: 16101711 *Qty: 8 NUT $0.90
Location: 29 Prev | Next Part: 12577811 *Qty: 1 NUT Superseded
Location: 30 Prev | Next Part: 12638101 *Qty: 1 WASHER Superseded
Location: 31 Prev | Next Part: 61059700 *Qty: 1 SPRING $5.53
Location: 32 Prev | Next Part: 61059600 *Qty: 1 PUSH BUTTON $3.86
Location: 33 Prev | Next Part: 61059800 *Qty: 1 COVER FOR SPRING $2.80
Location: 34 Prev | Next Part: 15914608 *Qty: 12 SCREW $0.90
Location: 35 Prev | Next Part: 622260.. *Qty: 1 COVERED CAR RADIO OUTER SET HOLDER
Valid for USA from M.Y. 90
Call
Location: 35 Prev | Next Part: 622261.. *Qty: 1 DOORTRIM
Valid for USA from M.Y. 90
Call
Location: 36 Prev | Next Part: 62989900 *Qty: 1 348 TB NAMEPLATE
Valid for USA from M.Y. 90
Call
Location: 37 Prev | Next Part: 60324506 *Qty: 2 CLIP
Valid for USA from M.Y. 90
Superseded
Location: 38 Prev | Next Part: 15688375 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 40 Prev | Next Part: 15669706 *Qty: 4 SCREW $0.90
Location: 41 Prev | Next Part: 14115980 *Qty: 2 BLOCK $0.90
Location: 42 Prev | Next Part: 15641278 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 14115580 *Qty: 2 BLOCK $0.90
Location: 44 Prev | Next Part: 62220600 *Qty: 1 CAR RADIO GLOVE BOX INNER DOOR
Valid for USA from M.Y. 90
Superseded
Location: 45 Prev | Next Part: 62993400 *Qty: 2 CLIP $2.10
Location: 46 Prev | Next Part: 16101711 *Qty: 2 NUT $0.90
Location: 47 Prev | Next Part: 10615179 *Qty: 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
