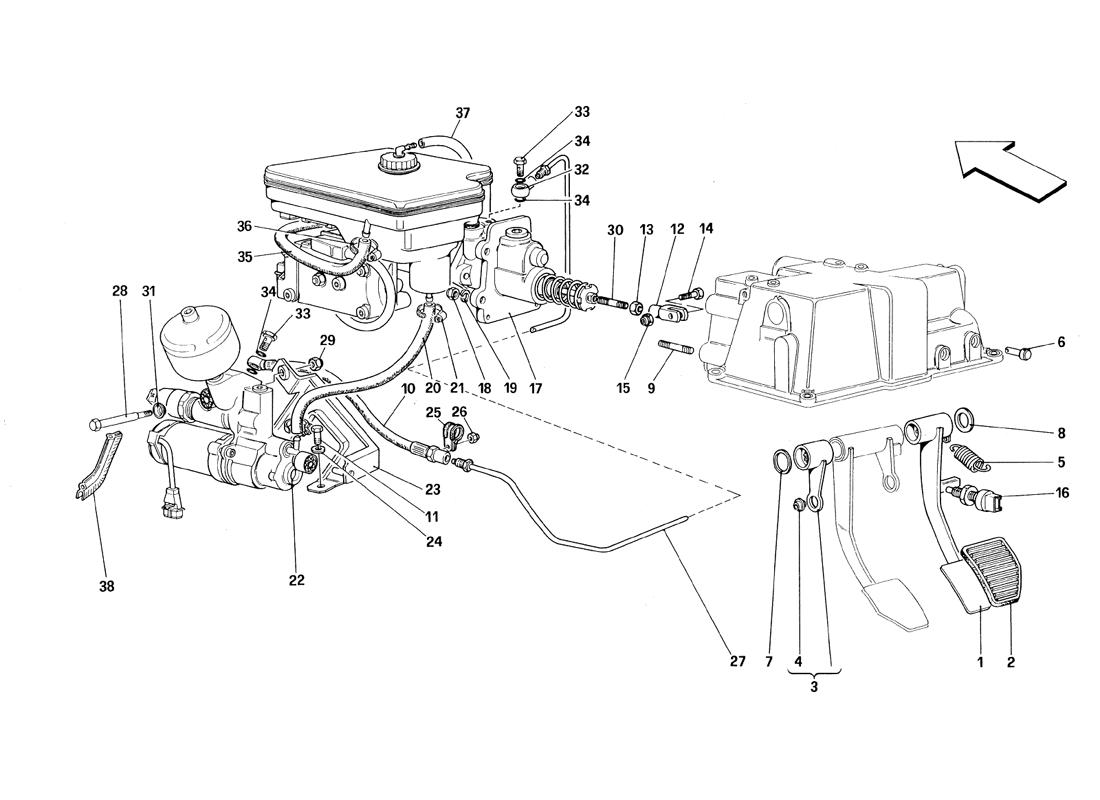

THROTTLE PEDAL AND BRAKE HYDRAULIC SYSTEM - VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 134276 *Qty: 1 BRAKE PEDAL
Valid till car Nr. 90916
$221.08
Location: 1 Prev | Next Part: 149290 *Qty: 1 BRAKE PEDAL
Valid from car Nr. 90917
$178.82
Location: 2 Prev | Next Part: 149292 *Qty: 1 PEDAL RUBBER
Valid for pedal 149290
$163.68
Location: 2 Prev | Next Part: 132819 *Qty: 1 PEDAL RUBBER
Valid for pedal 134276
Call
Location: 3 Prev | Next Part: 129609 *Qty: 1 TRANSMISSION LEVER $463.64
Location: 4 Prev | Next Part: 109407 *Qty: 1 BALL JOINT $27.57
Location: 5 Prev | Next Part: 101305 *Qty: 1 SPRING $5.99
Location: 6 Prev | Next Part: 129612 *Qty: 1 PIN $3.06
Location: 7 Prev | Next Part: 112125 *Qty: 1 SPACER WASHER $2.54
Location: 8 Prev | Next Part: 112131 *Qty: 1 WASHER
mm. 1.3 Possible fitting
$0.90
Location: 8 Prev | Next Part: 112128 *Qty: 1 WASHER
mm.1.0 Possible fitting
$0.90
Location: 8 Prev | Next Part: 112130 *Qty: 1 WASHER
mm.1.2 Possible fitting
$0.97
Location: 8 Prev | Next Part: 112129 *Qty: 1 WASHER
mm. 1.1 Possible fitting
$0.90
Location: 8 Prev | Next Part: 112127 *Qty: 1 WASHER
mm. 0.9 Possible fitting
$0.90
Location: 9 Prev | Next Part: 13543421 *Qty: 4 STUD Superseded
Location: 10 Prev | Next Part: 136315 *Qty: 1 HOSE Superseded
Location: 11 Prev | Next Part: 16043124 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 10007871 *Qty: 1 FORK $19.78
Location: 13 Prev | Next Part: 16102311 *Qty: 1 NUT Superseded
Location: 14 Prev | Next Part: 130926 *Qty: 1 SCREW $9.03
Location: 15 Prev | Next Part: 16104411 *Qty: 1 NUT $0.90
Location: 16 Prev | Next Part: 133555 *Qty: 1 STOP CONTROL SWITCH $111.55
Location: 17 Prev | Next Part: - *Qty: 1 HYDRAULIC CONTROL STATION
See Table 31
Call
Location: 18 Prev | Next Part: 16104111 *Qty: 4 NUT Superseded
Location: 19 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 132411 *Qty: 1 RUBBER HOSE $14.19
Location: 21 Prev | Next Part: 12179190 *Qty: 2 SCREW COLLAR Superseded
Location: 22 Prev | Next Part: - *Qty: 1 BRAKE PUMP
See Table 31
Call
Location: 23 Prev | Next Part: 140498 *Qty: 1 BRACKET $59.79
Location: 24 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 10441590 *Qty: 1 BRACKET $0.90
Location: 26 Prev | Next Part: 12575411 *Qty: 1 NUT Superseded
Location: 27 Prev | Next Part: 143676 *Qty: 1 PIPE $26.60
Location: 28 Prev | Next Part: 129636 *Qty: 1 SCREW $5.76
Location: 29 Prev | Next Part: 12574211 *Qty: 1 NUT Superseded
Location: 30 Prev | Next Part: 13517121 *Qty: 1 STUD Call
Location: 31 Prev | Next Part: 130861 *Qty: 1 WASHER $4.65
Location: 32 Prev | Next Part: 136311 *Qty: 1 UNION Superseded
Location: 33 Prev | Next Part: 131873 *Qty: 2 UNION $7.15
Location: 34 Prev | Next Part: 131874 *Qty: 4 GASKET Superseded
Location: 35 Prev | Next Part: 151845 *Qty: 1 PIPE $63.79
Location: 36 Prev | Next Part: 12179190 *Qty: 2 SCREW COLLAR Superseded
Location: 37 Prev | Next Part: 105959 *Qty: 1 VENT PIPE
Valid till car Ass. Nr. 7544
$2.03
Location: 38 Prev | Next Part: 144824 *Qty: 1 GASKET $1.84

* Quantity shown indicates the number of pieces used in the diagram.
