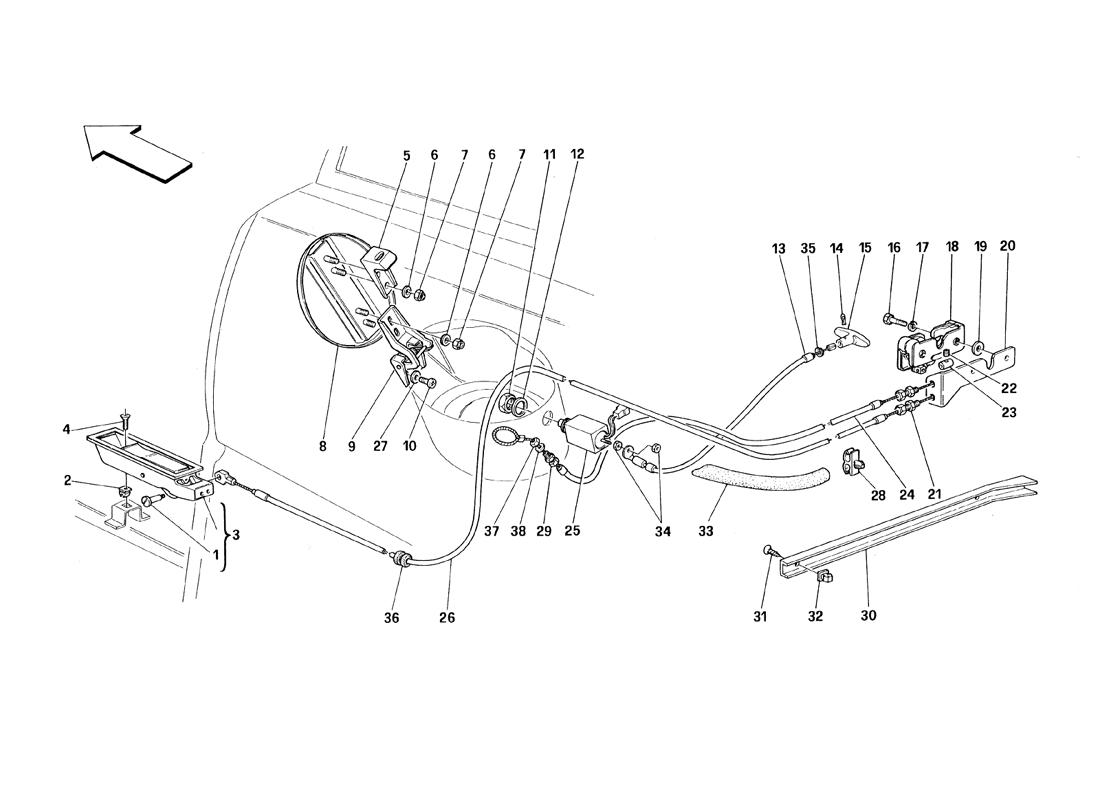

OPENING DEVICES FOR REAR HOOD AND GAS DOOR

Go to Split View

OPENING DEVICES FOR REAR HOOD AND GAS DOOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62552200 *Qty: 1 PIN FOR CABLE FASTENING $20.89
Location: 2 Prev | Next Part: 14115980 *Qty: 1 BLOCK $0.90
Location: 3 Prev | Next Part: 62551900 *Qty: 1 OPENING HANDLE FOR ENGINE HOOD $730.86
Location: 4 Prev | Next Part: 15672607 *Qty: 1 SCREW Superseded
Location: 5 Prev | Next Part: 60538100 *Qty: 1 STRIKER PLATE FOR GAS UNION DOOR $40.71
Location: 6 Prev | Next Part: 12638101 *Qty: 4 WASHER Superseded
Location: 7 Prev | Next Part: 12574115 *Qty: 4 NUT Superseded
Location: 8 Prev | Next Part: 62075200 *Qty: 1 FUEL INLET LID $84.75
Location: 9 Prev | Next Part: 62370400 *Qty: 1 HINGE FOR GAS UNION DOOR $367.15
Location: 10 Prev | Next Part: 13274011 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 60538800 *Qty: 1 RING NUT $10.23
Location: 12 Prev | Next Part: 60772600 *Qty: 1 WASHER $0.90
Location: 13 Prev | Next Part: 62830400 *Qty: 1 SAFETY CABLE FOR GAS UNION DOOR $12.60
Location: 14 Prev | Next Part: 60711000 *Qty: 1 CLIP $0.90
Location: 15 Prev | Next Part: 60710900 *Qty: 1 EMERGENCY HANDLE Call
Location: 16 Prev | Next Part: 10903021 *Qty: 2 SCREW Superseded
Location: 17 Prev | Next Part: 10615479 *Qty: 2 WASHER Superseded
Location: 18 Prev | Next Part: 60277407 *Qty: 1 ENGINE BONNET LOCK Call
Location: 19 Prev | Next Part: 12644401 *Qty: 2 WASHER Superseded
Location: 20 Prev | Next Part: 62616400 *Qty: 1 BRACKET
Valid for GD
$5.60
Location: 20 Prev | Next Part: 62616300 *Qty: 1 BRACKET
Vale per GD
$6.34
Location: 21 Prev | Next Part: 62828900 *Qty: 2 REGISTER FOR LOCK CABLES $4.96
Location: 22 Prev | Next Part: 60276805 *Qty: 1 DOWEL $1.81
Location: 23 Prev | Next Part: 60276607 *Qty: 1 CONNECTION $42.87
Location: 24 Prev | Next Part: 62991500 *Qty: 1 SAFETY LOCK CABLE FOR ENGINE HOOD
Valid for GD
$33.51
Location: 24 Prev | Next Part: 62829800 *Qty: 1 SAFETY LOCK CABLE FOR ENGINE HOOD
Not for GD
$16.57
Location: 25 Prev | Next Part: 60868600 *Qty: 1 ELECTRO-MAGNET $573.63
Location: 26 Prev | Next Part: 62829500 *Qty: 1 CABLE FOR ENGINE HOOD OPENING
Not for USA till M.Y. 91
$22.96
Location: 26 Prev | Next Part: 63309500 *Qty: 1 CABLE FOR MOTOR BONNET OPENING
Valid for USA from M.Y. 91
$1.94
Location: 27 Prev | Next Part: 12605270 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 62854300 *Qty: 3 CLIP $0.90
Location: 29 Prev | Next Part: 62828900 *Qty: 1 REGISTER FOR LOCK CABLES $4.96
Location: 30 Prev | Next Part: 62950700 *Qty: 1 CABLES PROTECTION $17.35
Location: 31 Prev | Next Part: 15917177 *Qty: 2 SCREW $1.53
Location: 32 Prev | Next Part: 14115885 *Qty: 2 BLOCK $0.90
Location: 33 Prev | Next Part: 62950900 *Qty: 1 PROTECTION SHEATH $1.00
Location: 34 Prev | Next Part: 16101711 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 36 Prev | Next Part: 10396380 *Qty: 1 CABLE GROMMET $0.90
Location: 37 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 38 Prev | Next Part: 14496301 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
