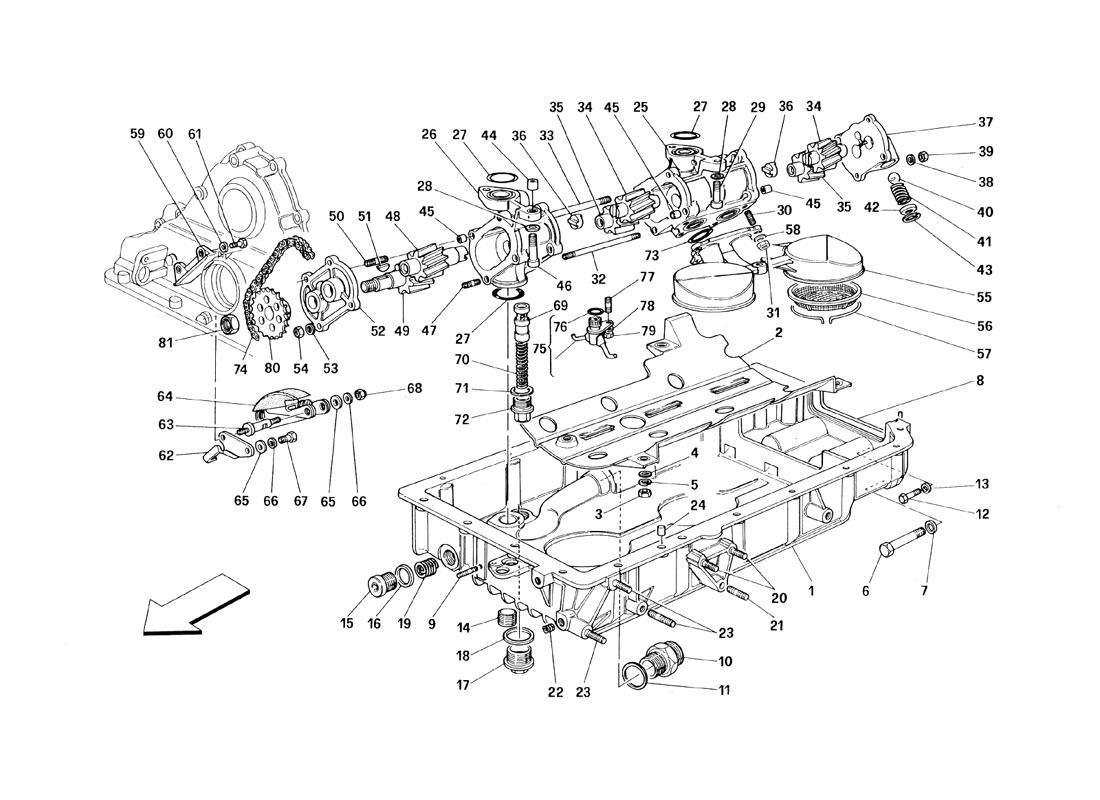

LUBRICATION - PUMPS AND OIL SUMPS

Go to Split View

LUBRICATION - PUMPS AND OIL SUMPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 143277 *Qty: 1 COMPLETE OIL SUMP $1,668.78
Location: 1 Prev | Next Part: - *Qty: 1 OIL SUMP
Not as spare part With complete oil sump
Call
Location: 2 Prev | Next Part: 149318 *Qty: 1 ANTI-SHAKING OIL PANEL $17.16
Location: 3 Prev | Next Part: 16102311 *Qty: 4 NUT Superseded
Location: 4 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 11288021 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 11190579 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 117036 *Qty: 1 GASKET
Valid for rear crankase cover 138257 Tab. 1
$6.63
Location: 9 Prev | Next Part: 11001221 *Qty: 1 STUD $2.63
Location: 10 Prev | Next Part: 138149 *Qty: 1 UNION $60.89
Location: 11 Prev | Next Part: 144485 *Qty: 1 GASKET $29.08
Location: 12 Prev | Next Part: 10902724 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 10268450 *Qty: 1 THREADED PLUG $2.95
Location: 15 Prev | Next Part: 10275040 *Qty: 1 THREADED PLUG Superseded
Location: 16 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 17 Prev | Next Part: 133284 *Qty: 1 THREADED PLUG $120.00
Location: 18 Prev | Next Part: 144485 *Qty: 1 GASKET $29.08
Location: 19 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.94
Location: 20 Prev | Next Part: 12354524 *Qty: 2 STUD $21.12
Location: 21 Prev | Next Part: 13543121 *Qty: 1 STUD Superseded
Location: 22 Prev | Next Part: 13525770 *Qty: 2 THREADED INSERT $1.11
Location: 23 Prev | Next Part: 12354524 *Qty: 3 STUD $21.12
Location: 24 Prev | Next Part: 102725 *Qty: 2 DOWEL $1.14
Location: 24 Prev | Next Part: 143276 *Qty: 1 RECOVERY PUMP BODY WITH STUD BOLTS $1,082.81
Location: 25 Prev | Next Part: 149530 *Qty: 1 DELIVERY PUMP BODY WITH STUD BOLTS
Valid from engine Nr. 24720
$1,187.60
Location: 25 Prev | Next Part: 143479 *Qty: 1 DELIVERY PUMP BODY WITH STUD BOLTS
Valid till engine Nr. 24719
$564.72
Location: 25 Prev | Next Part: - *Qty: 1 RECOVERY PUMP BODY
Not as spare part With the assembly 143276
Call
Location: 26 Prev | Next Part: - *Qty: 1 DELIVERY PUMP BODY
Not as spare part - With the assembly 143479 and 149530
Call
Location: 27 Prev | Next Part: 133939 *Qty: 3 O.R. GASKET $1.26
Location: 28 Prev | Next Part: 11198079 *Qty: 4 WASHER Superseded
Location: 29 Prev | Next Part: 14306421 *Qty: 3 SCREW Superseded
Location: 30 Prev | Next Part: 13540821 *Qty: 4 STUD Superseded
Location: 31 Prev | Next Part: 132877 *Qty: 4 NUT $2.78
Location: 32 Prev | Next Part: 133842 *Qty: 2 STUD $2.01
Location: 33 Prev | Next Part: 133843 *Qty: 2 STUD $1.74
Location: 34 Prev | Next Part: 132458 *Qty: 2 DRIVING GEAR $209.65
Location: 35 Prev | Next Part: 132460 *Qty: 2 DRIVEN GEAR $664.18
Location: 36 Prev | Next Part: 109309 *Qty: 2 COUPLING $17.31
Location: 37 Prev | Next Part: 132436 *Qty: 1 RECOVERY PUMP COVER $139.41
Location: 38 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 39 Prev | Next Part: 134041 *Qty: 4 NUT $0.90
Location: 40 Prev | Next Part: 121306 *Qty: 1 BALL $3.52
Location: 41 Prev | Next Part: 109980 *Qty: 1 SPRING $20.15
Location: 42 Prev | Next Part: 132772 *Qty: 1 SPACER $8.76
Location: 43 Prev | Next Part: 11057876 *Qty: 1 SEEGER RING $0.90
Location: 44 Prev | Next Part: 102704 *Qty: 1 DOWEL $19.74
Location: 45 Prev | Next Part: 102725 *Qty: 5 DOWEL $1.14
Location: 46 Prev | Next Part: 14306521 *Qty: 1 SCREW Superseded
Location: 47 Prev | Next Part: 13540821 *Qty: 2 STUD Superseded
Location: 48 Prev | Next Part: 132456 *Qty: 1 DRIVEN GEAR Superseded
Location: 49 Prev | Next Part: 132454 *Qty: 1 DRIVING GEAR $618.43
Location: 50 Prev | Next Part: 13541021 *Qty: 2 STUD Superseded
Location: 51 Prev | Next Part: 10205820 *Qty: 1 KEY $1.65
Location: 52 Prev | Next Part: 132434 *Qty: 1 FRONT COVER $96.84
Location: 53 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 54 Prev | Next Part: 134041 *Qty: 4 NUT $0.90
Location: 55 Prev | Next Part: 132371 *Qty: 1 RECOVERY PUMP FLOATER
Valid till engine Nr. 26715 Valid till stock exhaustion
$257.56
Location: 55 Prev | Next Part: 143797 *Qty: 1 RECOVERY PUMP FLOATER
Valid from engine Nr. 26716 Valid after stock exhaustion of 132371
$185.39
Location: 56 Prev | Next Part: 122429 *Qty: 2 FILTER
Valid from engine Nr. 26716 Valid for pump floater 143797
$11.65
Location: 57 Prev | Next Part: 103944 *Qty: 2 SEAL RING
Valid from engine Nr. 26716 Valid tor pump floater 143797
$132.17
Location: 58 Prev | Next Part: 12604279 *Qty: 4 WASHER
Valid from engine Nr. 26716 Valid for pump floater 143797
$0.90
Location: 59 Prev | Next Part: 136039 *Qty: 1 FIXED TENSION $74.00
Location: 60 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 61 Prev | Next Part: 10902324 *Qty: 2 SCREW Superseded
Location: 62 Prev | Next Part: 133093 *Qty: 1 SMALL PLATE
Valid till stock exhaustion
Superseded
Location: 62 Prev | Next Part: 155833 *Qty: 1 SMALL PLATE
Valid after stock exhaustion of 133093
$47.08
Location: 63 Prev | Next Part: 134263 *Qty: 1 STUD $103.92
Location: 64 Prev | Next Part: 147337 *Qty: 1 CHAIN TIGHTENER Superseded
Location: 65 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 66 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 67 Prev | Next Part: 10902211 *Qty: 1 SCREW Call
Location: 68 Prev | Next Part: 131837 *Qty: 1 NUT $7.55
Location: 69 Prev | Next Part: 129324 *Qty: 1 REGISTER $314.66
Location: 70 Prev | Next Part: 137614 *Qty: 1 SPRING $58.79
Location: 71 Prev | Next Part: 10257460 *Qty: 1 GASKET $0.90
Location: 72 Prev | Next Part: 129322 *Qty: 1 PRESSURE VALVE CAP $5.21
Location: 73 Prev | Next Part: 133938 *Qty: 2 O.R. GASKET $1.14
Location: 74 Prev | Next Part: 133089 *Qty: 1 OIL PUMP CONTROL CHAIN $43.64
Location: 75 Prev | Next Part: 137607 *Qty: 4 MULTIPLE UNION $158.12
Location: 76 Prev | Next Part: 137192 *Qty: 4 O.R. GASKET $0.90
Location: 77 Prev | Next Part: 11000821 *Qty: 4 STUD $0.90
Location: 78 Prev | Next Part: 11199279 *Qty: 4 WASHER $0.90
Location: 79 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 80 Prev | Next Part: 132462 *Qty: 1 OUTER GEAR $52.05
Location: 81 Prev | Next Part: 132876 *Qty: 1 NUT $56.19

* Quantity shown indicates the number of pieces used in the diagram.
