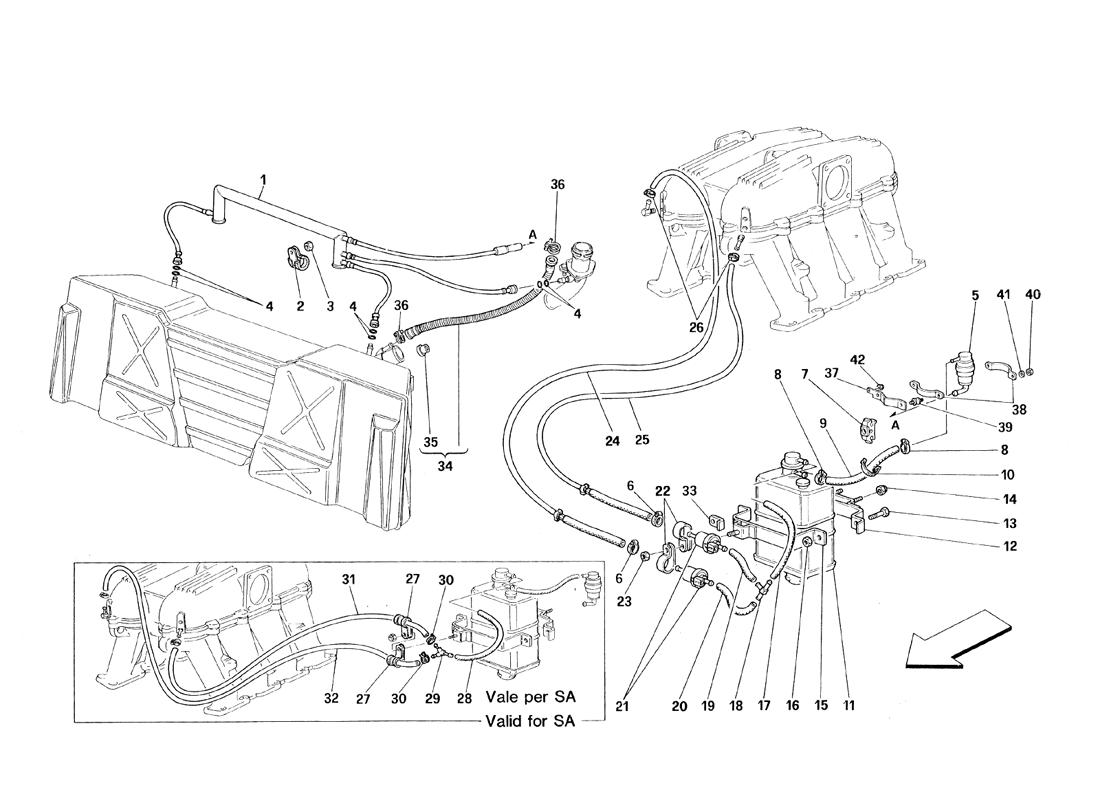

GASOLINE VENT SYSTEM - NOT FOR CATALYTIC VEHICLES

Go to Split View

GASOLINE VENT SYSTEM - NOT FOR CATALYTIC VEHICLES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 133959 *Qty: 1 DISAREATOR Call
Location: 2 Prev | Next Part: 10442290 *Qty: 2 BRACKET $0.97
Location: 3 Prev | Next Part: 12575411 *Qty: 2 NUT Superseded
Location: 4 Prev | Next Part: 133956 *Qty: 6 O.R. GASKET $1.22
Location: 5 Prev | Next Part: 139568 *Qty: 1 ANTI-TILTING VALVE Call
Location: 6 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 7 Prev | Next Part: 141699 *Qty: 1 CUP $1.26
Location: 8 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 9 Prev | Next Part: 133951 *Qty: 1 PIPE FROM ANTI-TURNING OVER VALVE TO FILTER $18.02
Location: 10 Prev | Next Part: 145855 *Qty: 1 CLAMP $0.90
Location: 11 Prev | Next Part: 138419 *Qty: 1 VAPOR FILTER Call
Location: 12 Prev | Next Part: 138494 *Qty: 1 FRAME FASTENING FILTER BRACKET $41.16
Location: 13 Prev | Next Part: 10902121 *Qty: 2 SCREW Superseded
Location: 14 Prev | Next Part: 12575411 *Qty: 2 NUT Superseded
Location: 15 Prev | Next Part: 138496 *Qty: 1 COMPLETE BRACKET $40.46
Location: 16 Prev | Next Part: 12575411 *Qty: 2 NUT Superseded
Location: 17 Prev | Next Part: 114874 *Qty: 1 PIPE FROM FILTER TO UNION
Not for SA
$6.88
Location: 18 Prev | Next Part: 105990 *Qty: 1 3-WAYS UNION
Not for SA
$1.27
Location: 19 Prev | Next Part: 142407 *Qty: 1 PIPE FROM UNION TO ANTIEVAPORATION VALVE $3.15
Location: 20 Prev | Next Part: 142408 *Qty: 1 PIPE FROM UNION TO ANTIEVAPORATION VALVE $3.34
Location: 21 Prev | Next Part: 130978 *Qty: 2 ANTI-EVAPORATION VALVE
Not for SA
Call
Location: 22 Prev | Next Part: 142196 *Qty: 2 BRACKET
Not for SA
$2.23
Location: 23 Prev | Next Part: 14058411 *Qty: 1 NUT Superseded
Location: 24 Prev | Next Part: 142409 *Qty: 1 PIPE FROM VALVE TO R.H. MANIFOLD
Not for SA
$102.44
Location: 25 Prev | Next Part: 141551 *Qty: 1 PIPE FROM VALVE TO LH. MANIFOLD
Not for SA
$78.10
Location: 26 Prev | Next Part: 12179090 *Qty: 2 SCREW COLLAR Superseded
Location: 27 Prev | Next Part: 10441290 *Qty: 2 BRACKET
Valid for SA
$0.90
Location: 28 Prev | Next Part: 133951 *Qty: 1 PIPE FROM FILTER TO UNION
Valid for SA
$18.02
Location: 29 Prev | Next Part: 146651 *Qty: 1 3-WAY UNION
Valid for SA
$86.86
Location: 30 Prev | Next Part: 13422877 *Qty: 2 CLAMP
Valid for SA
Call
Location: 31 Prev | Next Part: 118318 *Qty: 1 PIPE FROM UNION TO LH. MANIFOLD
Valid for SA
$20.84
Location: 32 Prev | Next Part: 114845 *Qty: 1 PIPE FROM UNION TO R.H. MANIFOLD
Valid for SA
$50.42
Location: 33 Prev | Next Part: 137716 *Qty: 1 PLATE $25.79
Location: 34 Prev | Next Part: 142104 *Qty: 1 VENT PIPE FROM TANK TO UNION Call
Location: 35 Prev | Next Part: 142106 *Qty: 2 GASKET $8.81
Location: 36 Prev | Next Part: 12181290 *Qty: 2 SCREW COLLAR Superseded
Location: 37 Prev | Next Part: 149438 *Qty: 1 BRACKET $3.86
Location: 38 Prev | Next Part: 149437 *Qty: 2 BRACKET $1.75
Location: 39 Prev | Next Part: 113021 *Qty: 2 PAD $11.45
Location: 40 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 41 Prev | Next Part: 127493 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 12575411 *Qty: 1 NUT Superseded

* Quantity shown indicates the number of pieces used in the diagram.
