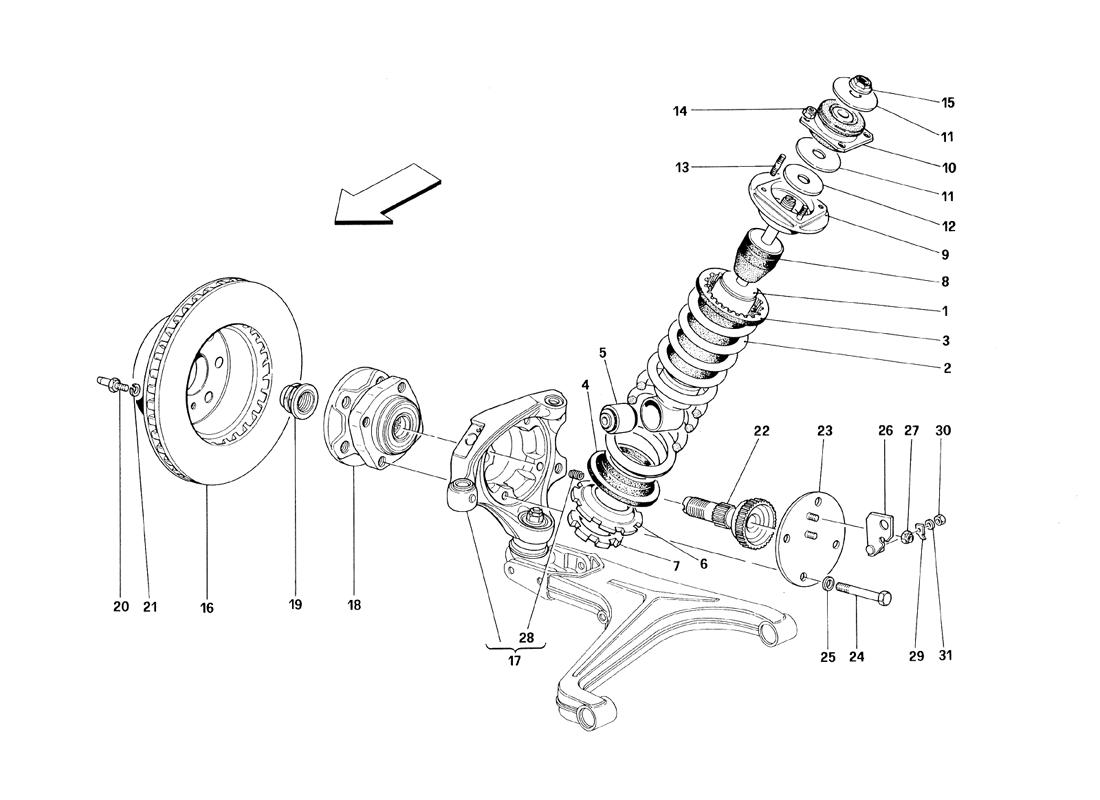

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC - VALID FROM CAR ASS. NR. 8799

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC - VALID FROM CAR ASS. NR. 8799

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 146290 *Qty: 2 SHOCK ABSORBER
Sold in pair
Call
Location: 2 Prev | Next Part: 151881 *Qty: 2 SPRING
Sold in pair Valid for USA SPYDER for TB/TS and D only valid from car Ass. Nr. 13560; for all other versions valid from car Ass. Nr. 13921
$582.39
Location: 2 Prev | Next Part: 148786 *Qty: 2 SPRING
Sold in pair Not for USA SPYDER; TB/TS I and D only valid till car Ass. Nr. 13559 for all other versions valid till car Ass. Nr. 13920
$148.06
Location: 3 Prev | Next Part: 113582 *Qty: 2 UPPER SPACER $114.97
Location: 4 Prev | Next Part: 113581 *Qty: 2 LOWER SPACER $12.86
Location: 5 Prev | Next Part: 130516 *Qty: 2 ESTENDBLOCK $34.53
Location: 6 Prev | Next Part: 155086 *Qty: 2 SPACER $86.00
Location: 7 Prev | Next Part: 141860 *Qty: 2 RING NUT $65.00
Location: 8 Prev | Next Part: 139448 *Qty: 2 PAD $29.05
Location: 9 Prev | Next Part: 151547 *Qty: 2 SPRING RETAINING CUP $48.51
Location: 10 Prev | Next Part: 114812 *Qty: 2 HYPERBLOCK $136.09
Location: 11 Prev | Next Part: 114815 *Qty: 4 WASHER $1.87
Location: 12 Prev | Next Part: 147143 *Qty: 2 SPACER $16.98
Location: 13 Prev | Next Part: 13543324 *Qty: 8 STUD $4.04
Location: 14 Prev | Next Part: 16104125 *Qty: 8 NUT Superseded
Location: 15 Prev | Next Part: 137826 *Qty: 2 NUT $4.23
Location: 16 Prev | Next Part: 131750 *Qty: 2 FRONT BRAKE DISC Call
Location: 17 Prev | Next Part: 145260 *Qty: 1 R.H. STEERING KNUCKLE $1,001.80
Location: 17 Prev | Next Part: 145261 *Qty: 1 LH. STEERING KNUCKLE $1,048.49
Location: 18 Prev | Next Part: 142882 *Qty: 2 HUB COMPLETE BEARING $2,003.51
Location: 19 Prev | Next Part: 148851 *Qty: 2 NUT Superseded
Location: 20 Prev | Next Part: 104370 *Qty: 4 CENTERING PIN $0.90
Location: 21 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 138939 *Qty: 2 PIN WITH TOOTHED WHEEL $1,159.71
Location: 23 Prev | Next Part: 149337 *Qty: 1 LH. COVER $16.15
Location: 23 Prev | Next Part: 149336 *Qty: 1 R.H. COVER $20.21
Location: 24 Prev | Next Part: 139973 *Qty: 4 SCREW $3.60
Location: 25 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 139693 *Qty: 1 LH. SUPPORT $29.40
Location: 26 Prev | Next Part: 139692 *Qty: 1 R.H. SUPPORT $32.40
Location: 27 Prev | Next Part: 12575411 *Qty: 4 NUT Superseded
Location: 28 Prev | Next Part: 133771 *Qty: 4 THREADED INSERT $4.65
Location: 29 Prev | Next Part: 143405 *Qty: 2 FASTON TONGUE $0.90
Location: 30 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
