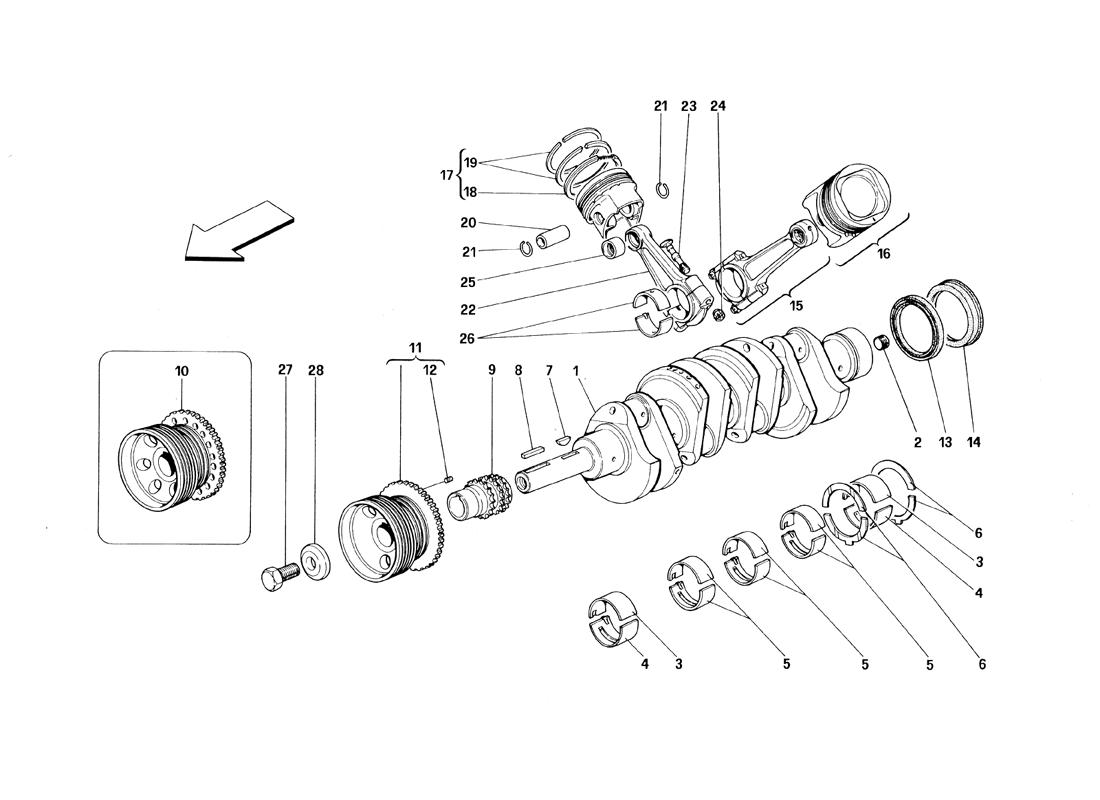

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138193 *Qty: 1 CRANKSHAFT $2,044.33
Location: 2 Prev | Next Part: 10268450 *Qty: 1 PLUG $2.95
Location: 2 Prev | Next Part: 100119 *Qty: 2 UPPER HALF BEARING
IstUNDERSIZE mm. 0.254
$44.83
Location: 2 Prev | Next Part: 100120 *Qty: 2 UPPER HALF BEARING
2nd UNDERSIZE mm. 0.508
$95.89
Location: 2 Prev | Next Part: 100123 *Qty: 2 LOWER HALF BEARING
1st UNDERSIZE mm. 0.254
$142.39
Location: 2 Prev | Next Part: 100124 *Qty: 2 LOWER HALF BEARING
2nd UNDERSIZE mm. 0.508
$48.87
Location: 3 Prev | Next Part: 100118 *Qty: 2 UPPER HALF BEARING $53.42
Location: 4 Prev | Next Part: 100122 *Qty: 2 LOWER HALF BEARING $45.99
Location: 5 Prev | Next Part: 104025 *Qty: 6 UPPER AND LOWER HALF BEARING
2nd UNDERSIZE mm. 0.508
$44.31
Location: 5 Prev | Next Part: 104024 *Qty: 6 UPPER AND LOWER HALF BEARING
1st UNDERSIZE mm. 0.254
Superseded
Location: 5 Prev | Next Part: 104023 *Qty: 6 UPPER AND LOWER HALF BEARING Call
Location: 6 Prev | Next Part: 100146 *Qty: 2 SHIM $37.68
Location: 6 Prev | Next Part: 100147 *Qty: 2 SHIM
2nd OVERSIZE mm. 0.250
$18.34
Location: 6 Prev | Next Part: 113984 *Qty: 2 SHIM
1st OVERSIZE mm. 0.127
$17.35
Location: 7 Prev | Next Part: 10206020 *Qty: 1 KEY $1.92
Location: 8 Prev | Next Part: 14723320 *Qty: 1 KEY $0.90
Location: 9 Prev | Next Part: 132807 *Qty: 1 TIMING GEAR $143.68
Location: 10 Prev | Next Part: 138524 *Qty: 1 TOOTHED WHEEL AND PULLEY
Valid till stock exhaustion
Superseded
Location: 11 Prev | Next Part: 153030 *Qty: 1 TOOTHED WHEEL AND PULLEY
Valid after stock exhaustion of 138524
$572.69
Location: 12 Prev | Next Part: 10841010 *Qty: 1 DOWEL $1.13
Location: 13 Prev | Next Part: 148671 *Qty: 1 SEAL RING Superseded
Location: 14 Prev | Next Part: 148672 *Qty: 1 SEAL RING Superseded
Location: 15 Prev | Next Part: 109738 *Qty: 8 COMPLETE CONNECTING ROD AND CAP $570.61
Location: 16 Prev | Next Part: 137980 *Qty: 8 PISTON WITH RINGS $1,342.16
Location: 17 Prev | Next Part: 132959 *Qty: 8 PISTONS RINGS SET $209.97
Location: 18 Prev | Next Part: - *Qty: 8 ROF OIL SCRAPING RING
(3rd groove) -Not as spare part - With complete series 132959
Call
Location: 19 Prev | Next Part: - *Qty: 16 AC SEAL RING
(1st and 2nd groove) -Not as spare part - With complete series 132959
Call
Location: 20 Prev | Next Part: 119537 *Qty: 8 PIN $81.78
Location: 21 Prev | Next Part: 100174 *Qty: 16 STOP RING $4.35
Location: 22 Prev | Next Part: - *Qty: 8 CONNECTING ROD WITH CAP
Not as spare part - With the assembly 109738
Call
Location: 23 Prev | Next Part: 100156 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $21.08
Location: 24 Prev | Next Part: 104011 *Qty: 16 CONNECTING ROD TIGHTENING NUT $12.96
Location: 25 Prev | Next Part: 107100 *Qty: 8 BUSHING $25.35
Location: 26 Prev | Next Part: 106183 *Qty: 16 CONNECTING ROD HALF BEARING $24.87
Location: 26 Prev | Next Part: 100151 *Qty: 16 CONNECTING ROD HALF BEARING
1st UNDERSIZE mm. 0.254
$83.01
Location: 26 Prev | Next Part: 100152 *Qty: 16 CONNECTING ROD HALF BEARING
2nd UNDERSIZE mm. 0.508
$117.46
Location: 27 Prev | Next Part: 138793 *Qty: 1 SCREW $114.54
Location: 28 Prev | Next Part: 138792 *Qty: 1 WASHER $6.41

* Quantity shown indicates the number of pieces used in the diagram.
