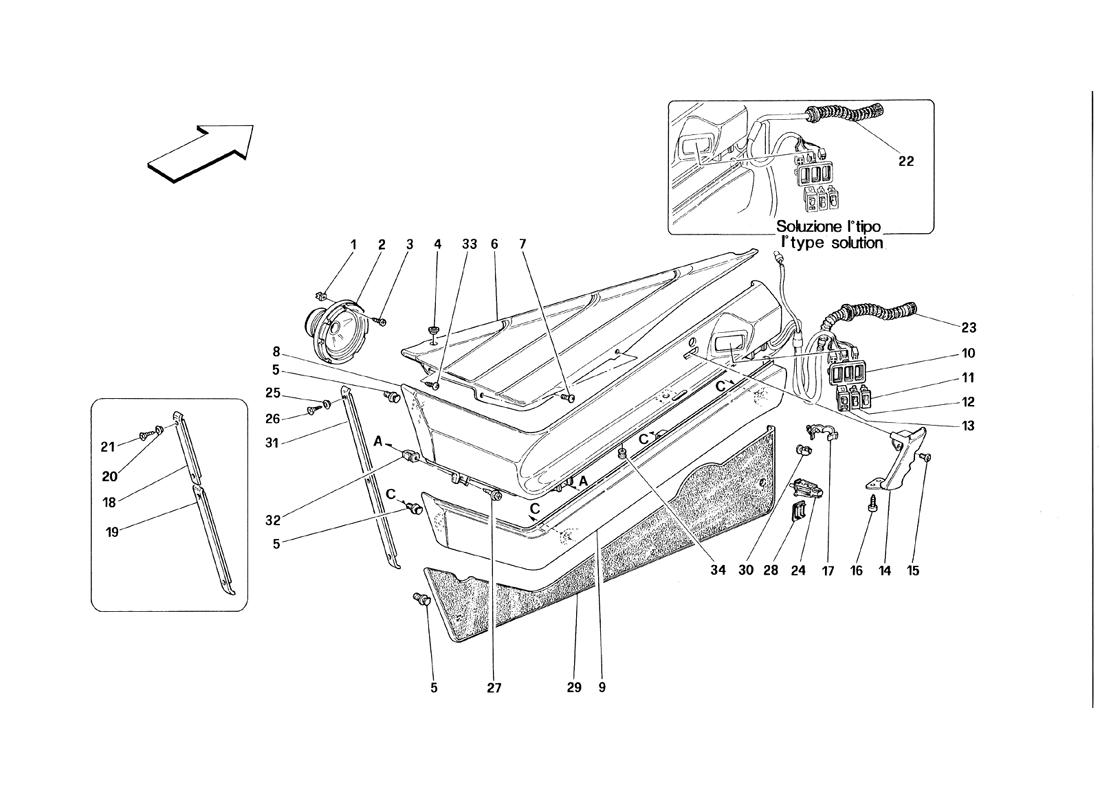

DOORS - INNER TRIMS

Go to Split View

DOORS - INNER TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 14215480 *Qty: 8 BLOCK Superseded
Location: 2 Prev | Next Part: 141392 *Qty: 2 LOUD SPEAKER WOOFER Call
Location: 3 Prev | Next Part: 15687270 *Qty: 8 SCREW $0.90
Location: 4 Prev | Next Part: 61617500 *Qty: 2 BUSHING $3.19
Location: 5 Prev | Next Part: 14188181 *Qty: 18 RETAINER $0.90
Location: 6 Prev | Next Part: 621538.. *Qty: 1 COVERED UPPER PANEL FOR L.H. DOOR Call
Location: 6 Prev | Next Part: 621537.. *Qty: 1 COVERED UPPER PANEL FOR R.H. DOOR Call
Location: 6 Prev | Next Part: 621540.. *Qty: 1 TRIM OF L.H. DOOR UPPER PANEL Call
Location: 6 Prev | Next Part: 621539.. *Qty: 1 TRIM OF R.H. DOOR UPPER PANEL Call
Location: 7 Prev | Next Part: 62926700 *Qty: 4 SCREW Superseded
Location: 8 Prev | Next Part: 621545.. *Qty: 1 COVERED CENTRAL PANEL FOR L.H. DOOR
Not for GD
Call
Location: 8 Prev | Next Part: 628730.. *Qty: 1 COVERED CENTRAL PANEL FOR L.H. DOOR
Valid for GD
Call
Location: 8 Prev | Next Part: 621544.. *Qty: 1 COVERED CENTRAL PANEL FOR R.H. DOOR
Not for GD
Call
Location: 8 Prev | Next Part: 628729.. *Qty: 1 COVERED CENTRAL PANEL FOR R.H. DOOR
Valid for GD
Call
Location: 8 Prev | Next Part: 621547.. *Qty: 1 TRIM FOR L.H. DOOR CENTRAL PANEL Call
Location: 8 Prev | Next Part: 621546.. *Qty: 1 TRIM FOR R.H. DOOR CENTRAL PANEL Call
Location: 9 Prev | Next Part: 621558.. *Qty: 1 COVERED LOWER PANEL FOR R.H. DOOR Call
Location: 9 Prev | Next Part: 629953.. *Qty: 1 TRIM FOR L.H. DOOR LOWER PANEL Call
Location: 9 Prev | Next Part: 629952.. *Qty: 1 TRIM FOR R.H. DOOR LOWER PANEL Call
Location: 9 Prev | Next Part: 621559.. *Qty: 1 COVERED LOWER PANEL FOR L.H. DOOR Call
Location: 10 Prev | Next Part: 62158700 *Qty: 1 PASSENGER SIDE SWITCHES FIXING PLATE $2.21
Location: 10 Prev | Next Part: 62158800 *Qty: 1 PILOT SIDE SWITCHES FIXING PLATE Call
Location: 11 Prev | Next Part: 144797 *Qty: 1 L.H. SWITCH FOR GLASS LIFT
For GD q.ty 2
Call
Location: 12 Prev | Next Part: 144798 *Qty: 2 R.H. SWITCH FOR GLASS LIFT
For GD q.ty 1
$38.04
Location: 13 Prev | Next Part: 134414 *Qty: 1 SWITCH FOR OUTER REARVIEW MIRRORS CONTROL Call
Location: 14 Prev | Next Part: 63296500 *Qty: 1 L.H. DOOR INNER HANDLE $878.16
Location: 14 Prev | Next Part: 63296400 *Qty: 1 R.H. DOOR INNER HANDLE $878.16
Location: 15 Prev | Next Part: 14778818 *Qty: 2 SCREW Call
Location: 16 Prev | Next Part: 13836371 *Qty: 4 SCREW $1.65
Location: 17 Prev | Next Part: 157386 *Qty: 2 CLIP $0.90
Location: 18 Prev | Next Part: 62956600 *Qty: 1 LH. DOOR UPPER MOLDING
Valid till stock exhaustion
$37.04
Location: 18 Prev | Next Part: 62956400 *Qty: 1 R.H. DOOR UPPER MOLDING
Valid till stock exhaustion
Superseded
Location: 19 Prev | Next Part: 62956500 *Qty: 1 R.H. DOOR UPPER MOLDING
Valid till stock exhaustion
Superseded
Location: 19 Prev | Next Part: 62956700 *Qty: 1 L.H. DOOR UPPER MOLDING
Valid till stock exhaustion
$37.04
Location: 20 Prev | Next Part: 62823200 *Qty: 8 WASHER $0.90
Location: 21 Prev | Next Part: 15908878 *Qty: 8 SCREW $0.90
Location: 22 Prev | Next Part: 138903 *Qty: 2 BELLOWS FOR CABLE BUSHING
Valid for door cables 146740 and 146741 See Table 132 and 132/A
$54.62
Location: 23 Prev | Next Part: 153703 *Qty: 2 BELLOWS ASSEMBLY FOR CABLE BUSHING
Valid for door cables 153783 and 153784 See Table 132 and 132/A
$353.17
Location: 24 Prev | Next Part: 134423 *Qty: 3 SWITCH FOR ROOF LIGHT
for EU till car nr.87685 q.ty 2 for USA from m.y. 90 q.ty 4 for GD and SA q.ty 2
$16.07
Location: 25 Prev | Next Part: 62823200 *Qty: 6 WASHER $0.90
Location: 26 Prev | Next Part: 15908878 *Qty: 6 SCREW $0.90
Location: 27 Prev | Next Part: 15785101 *Qty: 6 SCREW Call
Location: 28 Prev | Next Part: 145504 *Qty: 1 PLUG $1.25
Location: 29 Prev | Next Part: - *Qty: 1 L.H LOWER CARPET TRIM
not as spare part with carpet trims series
Call
Location: 29 Prev | Next Part: - *Qty: 1 R.H. LOWER CARPET TRIM
not as spare part with carpet trims series
Call
Location: 30 Prev | Next Part: 60123502 *Qty: 1 PASSENGER SIDE CLIP $0.97
Location: 30 Prev | Next Part: 157385 *Qty: 1 PILOT SIDE SPRING $0.90
Location: 31 Prev | Next Part: 63556000 *Qty: 1 L.H. DOOR MOULDING
valid for after stock exhaustion of 62956600 and 62956700
Call
Location: 31 Prev | Next Part: 63555900 *Qty: 1 R.H DOOR MOULDING
valid for after stock exhaustion of 62956400 and 62956500
$421.53
Location: 32 Prev | Next Part: 14202985 *Qty: 6 BLOCK $0.90
Location: 33 Prev | Next Part: 15687270 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 62885500 *Qty: 10 RING $0.93

* Quantity shown indicates the number of pieces used in the diagram.
