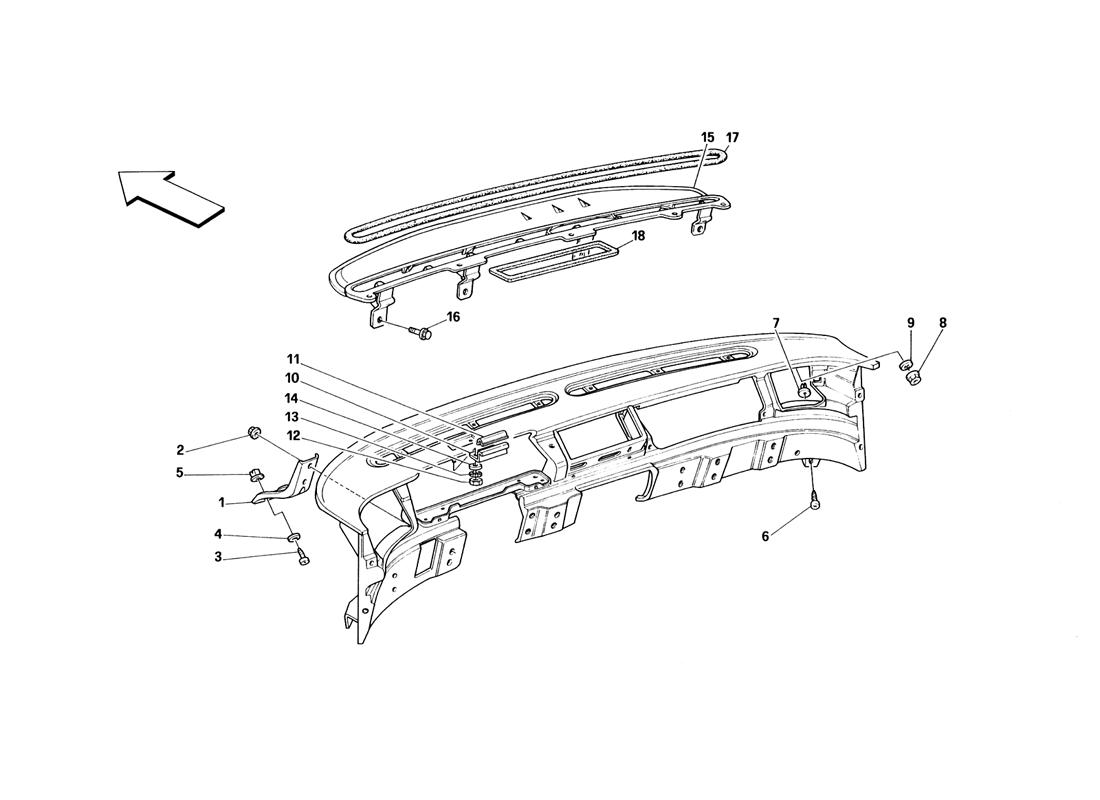

DASHBOARD - TRIM AND ACCESSORIES - VALID FOR USA FROM M.Y. 90

Go to Split View

DASHBOARD - TRIM AND ACCESSORIES - VALID FOR USA FROM M.Y. 90

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 633186.. *Qty: 1 LOWER UPHOLSTERY Call
Location: - Prev | Next Part: 633574.. *Qty: 1 UPHOLSTERED DASHBOARD Call
Location: - Prev | Next Part: 62136500 *Qty: 1 UPPER LINING $23.99
Location: 1 Prev | Next Part: 62224400 *Qty: 4 DASHBOARD LOWER FIXING BRACKET $11.91
Location: 2 Prev | Next Part: 14059211 *Qty: 16 NUT $0.90
Location: 3 Prev | Next Part: 15688375 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 12638101 *Qty: 4 WASHER Superseded
Location: 5 Prev | Next Part: 14202782 *Qty: 4 BLOCK $0.90
Location: 6 Prev | Next Part: 15785101 *Qty: 2 SCREW Call
Location: 7 Prev | Next Part: 14115980 *Qty: 2 BLOCK $0.90
Location: 8 Prev | Next Part: 13832101 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 12640601 *Qty: 2 WASHER Superseded
Location: 10 Prev | Next Part: 62139700 *Qty: 1 INSTRUMENTS PANEL FIXING PLATE $3.43
Location: 11 Prev | Next Part: 62139800 *Qty: 1 ANTI-VIBRATIONS Call
Location: 12 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 12605270 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 14496301 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 62185800 *Qty: 1 UNDER-DASHBOARD AIR DUCTING $92.43
Location: 16 Prev | Next Part: 13836371 *Qty: 4 SCREW $1.65
Location: 17 Prev | Next Part: 62200500 *Qty: 1 GASKET Call
Location: 18 Prev | Next Part: 62188000 *Qty: 1 AIR CONVEYOR GASKET $9.03

* Quantity shown indicates the number of pieces used in the diagram.
