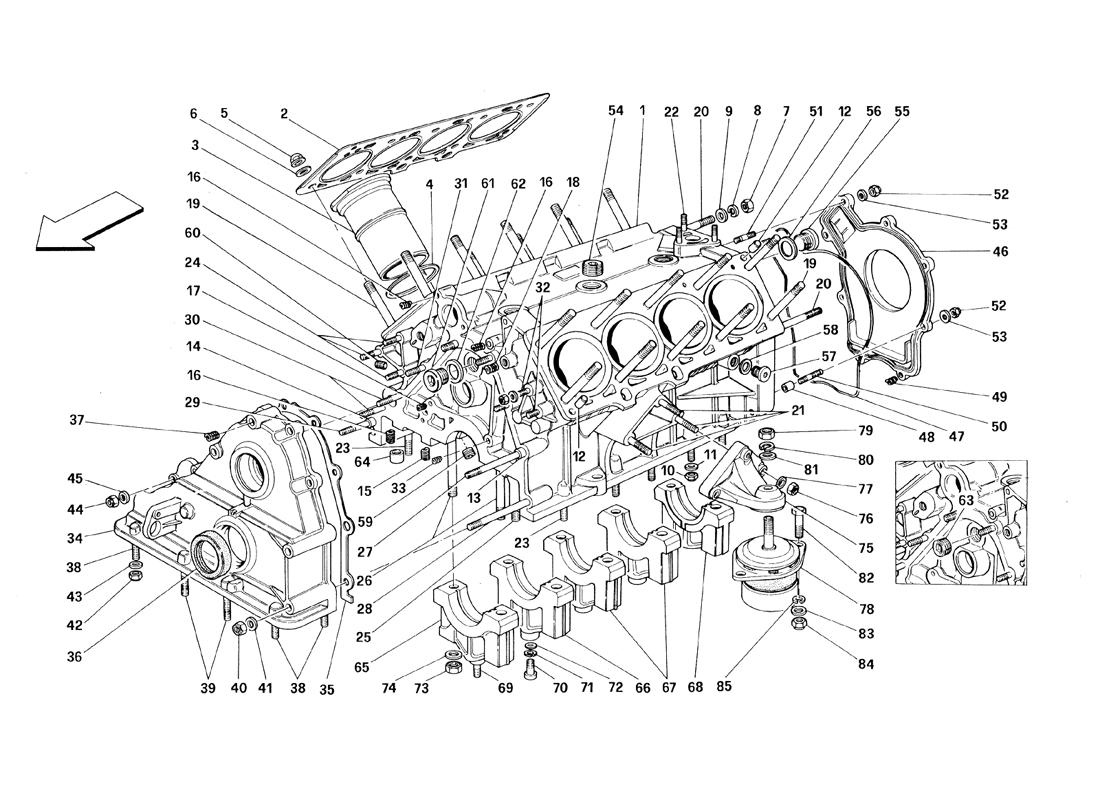

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 139571 *Qty: 1 COMPLETE CRANKCASE
Valid till engine Nr. 24719- -Valid till stock exhaustion-
Call
Location: - Prev | Next Part: 149508 *Qty: 1 COMPLETE CRANKCASE
Valid from engine Nr. 24720 to engine Nr. 25466 - Valid till stock exhaustion-
$5,474.21
Location: - Prev | Next Part: 152538 *Qty: 1 COMPLETE CRANKCASE
Valid from engine Nr. 25467 - Valid after stock exhaustion of 139571 and 149508-
$11,385.48
Location: 1 Prev | Next Part: - *Qty: 1 CRANKCASE
Not as spare part - With complete crankcase-
Call
Location: 2 Prev | Next Part: 152029 *Qty: 2 GASKET $253.66
Location: 3 Prev | Next Part: 136875 *Qty: 8 CYLINDER LINER $635.39
Location: 4 Prev | Next Part: 136258 *Qty: 8 GASKET $6.80
Location: 5 Prev | Next Part: 136269 *Qty: 20 NUT $10.20
Location: 6 Prev | Next Part: 136270 *Qty: 20 WASHER $6.51
Location: 7 Prev | Next Part: 133988 *Qty: 4 NUT $0.90
Location: 8 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 14496621 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 16104411 *Qty: 12 NUT $0.90
Location: 11 Prev | Next Part: 12604479 *Qty: 12 WASHER $4.10
Location: 12 Prev | Next Part: 152627 *Qty: 4 DOWEL $4.49
Location: 13 Prev | Next Part: 100052 *Qty: 1 DOWEL $2.77
Location: 14 Prev | Next Part: 100041 *Qty: 1 DOWEL $9.31
Location: 15 Prev | Next Part: 13525770 *Qty: 1 THREADED INSERT $0.90
Location: 16 Prev | Next Part: 13525870 *Qty: 7 THREADED INSERT $3.43
Location: 17 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.27
Location: 18 Prev | Next Part: 13526070 *Qty: 2 THREADED INSERT $4.44
Location: 19 Prev | Next Part: 137507 *Qty: 20 STUD $42.22
Location: 20 Prev | Next Part: 13547135 *Qty: 4 STUD $15.96
Location: 21 Prev | Next Part: 13546621 *Qty: 6 STUD $5.38
Location: 22 Prev | Next Part: 13543521 *Qty: 3 STUD Superseded
Location: 23 Prev | Next Part: 13543324 *Qty: 12 STUD $4.04
Location: 24 Prev | Next Part: 12354524 *Qty: 3 STUD $37.74
Location: 25 Prev | Next Part: 13516624 *Qty: 3 STUD $0.90
Location: 26 Prev | Next Part: 104075 *Qty: 10 STUD $14.41
Location: 27 Prev | Next Part: 13953521 *Qty: 1 STUD
Valid till engine Nr. 30737 - Valid for generator 139421 Table 42-
$9.17
Location: 27 Prev | Next Part: 13953221 *Qty: 1 STUD
Valid from engine Nr. 30738 - Valid for generator 155785 - Table 42/A-
Superseded
Location: 28 Prev | Next Part: 13450724 *Qty: 1 STUD
Valid from engine Nr. 30738 - Valid for generator 155785 - Table 42/A-
$11.38
Location: 28 Prev | Next Part: 13953321 *Qty: 1 STUD
Valid till engine Nr. 30737 - Valid for generator 139421 - Table 42-
$1.06
Location: 29 Prev | Next Part: 13544024 *Qty: 1 STUD $0.90
Location: 30 Prev | Next Part: 13543921 *Qty: 2 STUD $1.01
Location: 31 Prev | Next Part: 13543421 *Qty: 4 STUD Superseded
Location: 32 Prev | Next Part: 13543324 *Qty: 2 STUD $4.04
Location: 33 Prev | Next Part: 13525470 *Qty: 2 THREADED INSERT $0.90
Location: 34 Prev | Next Part: - *Qty: 1 FRONT COVER
Not as spare part - With complete crankcase-
Call
Location: 35 Prev | Next Part: 150077 *Qty: 1 GASKET $27.86
Location: 36 Prev | Next Part: 133628 *Qty: 1 GASKET $121.20
Location: 37 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.43
Location: 38 Prev | Next Part: 13543324 *Qty: 4 STUD $4.04
Location: 39 Prev | Next Part: 13543824 *Qty: 2 STUD Superseded
Location: 40 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 12638601 *Qty: 2 WASHER $0.90
Location: 42 Prev | Next Part: 16104411 *Qty: 6 NUT $0.90
Location: 43 Prev | Next Part: 12604479 *Qty: 6 WASHER $4.10
Location: 44 Prev | Next Part: 16104411 *Qty: 7 NUT $0.90
Location: 45 Prev | Next Part: 12601374 *Qty: 7 WASHER $0.90
Location: 46 Prev | Next Part: 138257 *Qty: 1 REAR COVER
-Without O.R. housing-
Superseded
Location: 46 Prev | Next Part: 142471 *Qty: 1 REAR COVER
-With O.R. housing-
$770.24
Location: 47 Prev | Next Part: 142472 *Qty: 1 OR-RING
-Valid for cover 142471-
$22.34
Location: 48 Prev | Next Part: 103038 *Qty: 2 DOWEL $1.60
Location: 49 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.27
Location: 50 Prev | Next Part: 13541124 *Qty: 2 STUD $8.18
Location: 51 Prev | Next Part: 13540821 *Qty: 4 STUD Superseded
Location: 52 Prev | Next Part: 15896211 *Qty: 6 NUT Superseded
Location: 53 Prev | Next Part: 12620479 *Qty: 6 WASHER $0.90
Location: 54 Prev | Next Part: 14325540 *Qty: 3 PLUG $12.13
Location: 55 Prev | Next Part: 10275011 *Qty: 2 PLUG $2.30
Location: 56 Prev | Next Part: 10263460 *Qty: 2 GASKET Superseded
Location: 57 Prev | Next Part: 150731 *Qty: 2 WATER OUTLET PLUG $4.87
Location: 58 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 59 Prev | Next Part: 10269650 *Qty: 2 PLUG $1.98
Location: 60 Prev | Next Part: 14326150 *Qty: 1 PLUG $0.90
Location: 61 Prev | Next Part: 10275011 *Qty: 1 PLUG
Valid till engine Nr. 24719
$2.30
Location: 62 Prev | Next Part: 10263460 *Qty: 1 GASKET
Valid till engine Nr. 24719
Superseded
Location: 63 Prev | Next Part: 10269850 *Qty: 1 PLUG
Valid from engine Nr. 24720
$2.30
Location: 64 Prev | Next Part: 145326 *Qty: 1 BUSHING
Valid from engine Nr. 24720
$3.74
Location: 65 Prev | Next Part: - *Qty: 1 FRONT HAT
Not as spare part - With complete crankcase
Call
Location: 66 Prev | Next Part: - *Qty: 1 FRONT INTERMEDIATE HAT
Not as spare part - With complete crankcase
Call
Location: 67 Prev | Next Part: - *Qty: 2 INTERMEDIATE CENTRAL AND REAR HAT
Not as spare part - With complete crankcase
Call
Location: 68 Prev | Next Part: - *Qty: 1 REAR HAT
Not as spare part - With complete crankcase
Call
Location: 69 Prev | Next Part: 13516624 *Qty: 1 STUD $0.90
Location: 70 Prev | Next Part: 14305224 *Qty: 1 SCREW
Valid till engine Nr. 26715
$0.90
Location: 70 Prev | Next Part: 10902724 *Qty: 1 SCREW
Valid from engine Nr. 26716
$0.90
Location: 71 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 72 Prev | Next Part: 12644421 *Qty: 1 WASHER Superseded
Location: 73 Prev | Next Part: 103841 *Qty: 10 NUT Superseded
Location: 74 Prev | Next Part: 103842 *Qty: 10 WASHER $3.84
Location: 75 Prev | Next Part: 133285 *Qty: 2 SUPPORT FOR MOTOR FIXING $492.41
Location: 76 Prev | Next Part: 15501121 *Qty: 6 NUT Superseded
Location: 77 Prev | Next Part: 11190579 *Qty: 6 WASHER $0.90
Location: 78 Prev | Next Part: 139469 *Qty: 2 FLEXIBLE PAD $575.00
Location: 79 Prev | Next Part: 16101521 *Qty: 2 NUT $0.90
Location: 80 Prev | Next Part: 127498 *Qty: 2 WASHER $0.90
Location: 81 Prev | Next Part: 14496701 *Qty: 2 WASHER $0.90
Location: 82 Prev | Next Part: 15970624 *Qty: 4 SCREW $3.88
Location: 83 Prev | Next Part: 14496601 *Qty: 4 WASHER Superseded
Location: 84 Prev | Next Part: 12574511 *Qty: 4 NUT
Valid till car GS Nr. 94801 and till car GD Nr. 94286
Superseded
Location: 85 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
