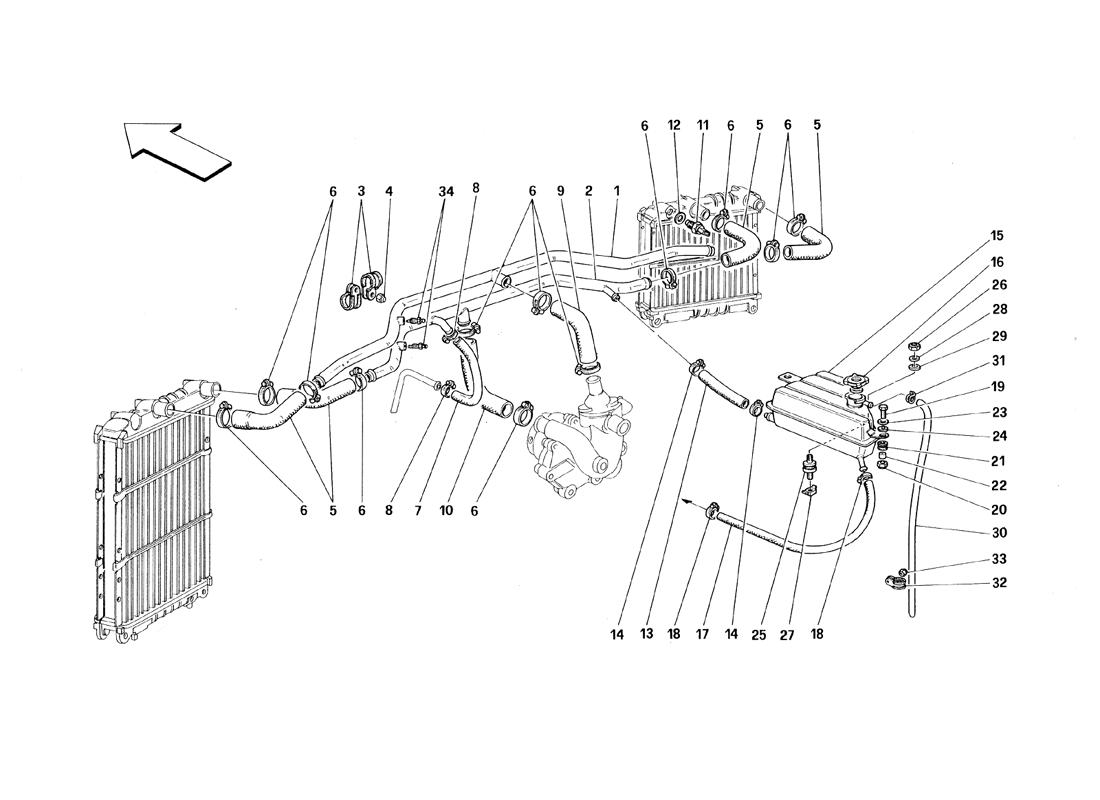

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 140626 *Qty: 1 RADIATORS DELIVERY PIPE $215.38
Location: 2 Prev | Next Part: 140627 *Qty: 1 RADIATORS RETURN PIPE $274.91
Location: 3 Prev | Next Part: 106195 *Qty: 4 BRACKET $46.96
Location: 4 Prev | Next Part: 12575411 *Qty: 2 NUT Superseded
Location: 5 Prev | Next Part: 136513 *Qty: 4 RUBBER HOSE $44.41
Location: 6 Prev | Next Part: 12177090 *Qty: 12 SCREW COLLAR Superseded
Location: 7 Prev | Next Part: 62659600 *Qty: 1 SLEEVE $8.41
Location: 8 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 9 Prev | Next Part: 140624 *Qty: 1 RUBBER HOSE $125.37
Location: 10 Prev | Next Part: 140625 *Qty: 1 RUBBER HOSE $150.00
Location: 11 Prev | Next Part: 140314 *Qty: 1 TEMPERATURE SWITCH Superseded
Location: 12 Prev | Next Part: 101508 *Qty: 1 GASKET $1.51
Location: 13 Prev | Next Part: 140703 *Qty: 1 RUBBER HOSE $44.95
Location: 14 Prev | Next Part: 12180190 *Qty: 2 SCREW COLLAR $0.90
Location: 15 Prev | Next Part: 140838 *Qty: 1 FUEL CANISTER $557.72
Location: 16 Prev | Next Part: 101499 *Qty: 1 TANK PLUG Superseded
Location: 17 Prev | Next Part: 122219 *Qty: 1 NOURICE- ENGINE EXHAUST PIPE $26.73
Location: 18 Prev | Next Part: 12179490 *Qty: 2 SCREW COLLAR Superseded
Location: 19 Prev | Next Part: 10902421 *Qty: 2 SCREW Superseded
Location: 20 Prev | Next Part: 12575421 *Qty: 2 NUT Superseded
Location: 21 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $1.61
Location: 22 Prev | Next Part: 103550 *Qty: 2 SPACER $2.55
Location: 23 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 12643701 *Qty: 2 WASHER Superseded
Location: 25 Prev | Next Part: 102947 *Qty: 1 PAD $18.79
Location: 26 Prev | Next Part: 15896211 *Qty: 1 NUT Superseded
Location: 27 Prev | Next Part: 60758600 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 29 Prev | Next Part: 12643701 *Qty: 1 WASHER Superseded
Location: 30 Prev | Next Part: 126292 *Qty: 1 VENT PIPE $124.85
Location: 31 Prev | Next Part: 13423379 *Qty: 1 ELASTIC COLLAR Call
Location: 32 Prev | Next Part: 10441490 *Qty: 2 BRACKET $0.90
Location: 33 Prev | Next Part: 12575411 *Qty: 2 NUT Superseded
Location: 34 Prev | Next Part: 127557 *Qty: 2 DRAIN SCREW Call

* Quantity shown indicates the number of pieces used in the diagram.
