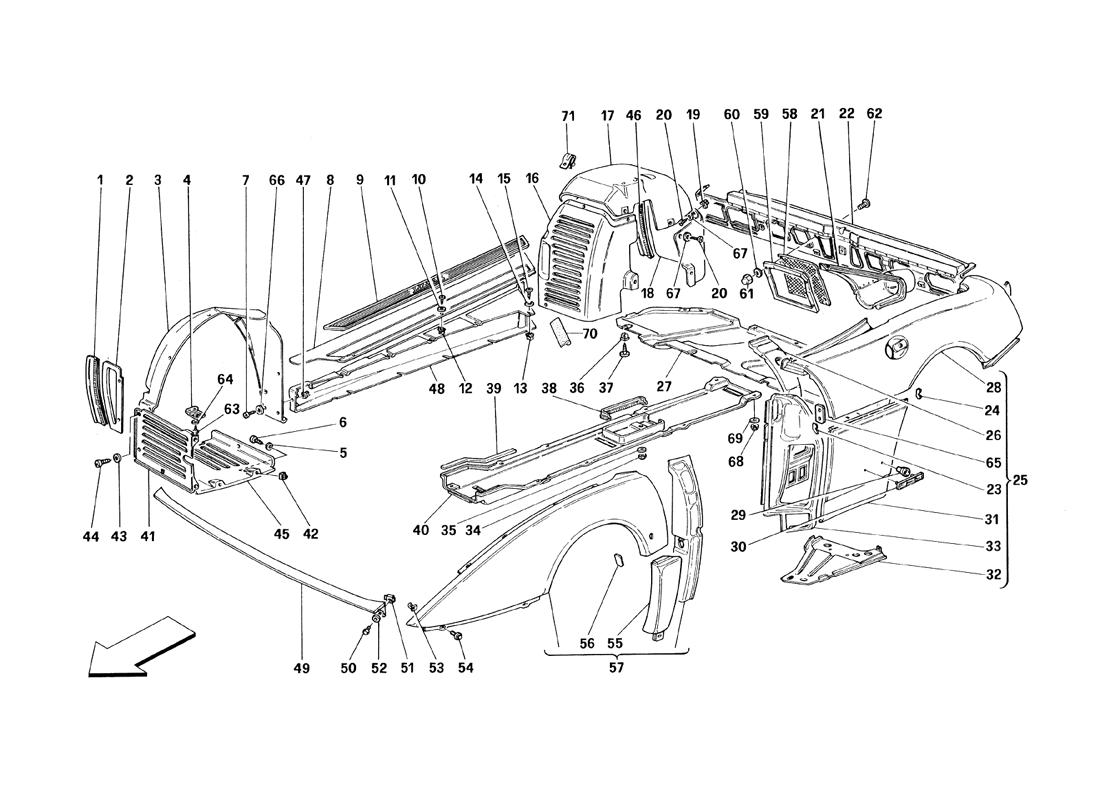

BODY - OUTER TRIMS

Go to Split View

BODY - OUTER TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63393200 *Qty: 2 GASKET $13.07
Location: 2 Prev | Next Part: 62807800 *Qty: 1 L.H. FRONT LATERAL GRAVEL GUARD $108.83
Location: 2 Prev | Next Part: 62807700 *Qty: 1 R.H. FRONT LATERAL GRAVEL GUARD $129.92
Location: 3 Prev | Next Part: 62095500 *Qty: 1 R.H. FRONT WHEELHOUSE GRAVEL GUARD $276.34
Location: 3 Prev | Next Part: 62095600 *Qty: 1 LH. FRONT WHEELHOUSE GRAVEL GUARD $276.34
Location: 4 Prev | Next Part: 62128100 *Qty: 2 LOWER GUARD FIXING BRACKET $41.43
Location: 5 Prev | Next Part: 12638177 *Qty: 6 WASHER Superseded
Location: 6 Prev | Next Part: 15645507 *Qty: 6 SCREW $0.90
Location: 7 Prev | Next Part: 15687378 *Qty: 14 SCREW Superseded
Location: 8 Prev | Next Part: 62172000 *Qty: 1 LH. KICK PLATE Call
Location: 8 Prev | Next Part: 62171900 *Qty: 1 R.H. KICK PLATE $714.99
Location: 9 Prev | Next Part: 62172100 *Qty: 2 KICK PLATE RUBBER $158.05
Location: 10 Prev | Next Part: 15914977 *Qty: 6 SCREW $1.55
Location: 11 Prev | Next Part: 12642878 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 14115580 *Qty: 6 BLOCK $0.90
Location: 13 Prev | Next Part: 14202782 *Qty: 20 BLOCK $0.90
Location: 14 Prev | Next Part: 12643777 *Qty: 20 WASHER Superseded
Location: 15 Prev | Next Part: 15917177 *Qty: 18 SCREW $1.48
Location: 16 Prev | Next Part: 62084500 *Qty: 1 LH. REAR WHEELHOUSE
Front side
$633.52
Location: 16 Prev | Next Part: 62084400 *Qty: 1 R.H. REAR WHEELHOUSE
Front side
$534.04
Location: 17 Prev | Next Part: 62084700 *Qty: 1 L.H. REAR WHEELHOUSE
Central side
$326.01
Location: 17 Prev | Next Part: 62084600 *Qty: 1 R.H. REAR WHEELHOUSE
Central side
$462.85
Location: 18 Prev | Next Part: 62118500 *Qty: 1 L.H. REAR WHEELHOUSE
Rear side
$284.22
Location: 18 Prev | Next Part: 62118400 *Qty: 1 R.H. REAR WHEELHOUSE
Rearside
$336.54
Location: 19 Prev | Next Part: 14215480 *Qty: 20 BLOCK Superseded
Location: 20 Prev | Next Part: 15687378 *Qty: 20 SCREW Superseded
Location: 21 Prev | Next Part: 62118800 *Qty: 1 CONVEYOR FOR L.H. AIR PLUG $85.09
Location: 21 Prev | Next Part: 62118700 *Qty: 1 CONVEYOR FOR R.H. AIR PLUG $85.09
Location: 22 Prev | Next Part: 62871800 *Qty: 1 REAR SIDE COVERING
valid for USA.CDN and AUS
$2,281.23
Location: 22 Prev | Next Part: 62067400 *Qty: 1 REAR SIDE COVERING
Valid for USA. CDN and AUS
Superseded
Location: 23 Prev | Next Part: 62067100 *Qty: 1 FRONT SIDE COVERING FOR LH. REAR FENDER Superseded
Location: 23 Prev | Next Part: 62067000 *Qty: 1 FRONT SIDE COVERING FOR R.H. REAR FENDER $2.25
Location: 24 Prev | Next Part: 62218200 *Qty: 2 CENTRAL COVERING FOR REAR FENDER $5.44
Location: 25 Prev | Next Part: 62066300 *Qty: 1 COMPLETE L.H. REAR FENDER $2,707.75
Location: 25 Prev | Next Part: 62066200 *Qty: 1 COMPLETE R.H. REAR FENDER $2,170.16
Location: 26 Prev | Next Part: 62072800 *Qty: 1 INTERNAL REINFORCEMENT FOR R.H. REAR FENDER $35.61
Location: 26 Prev | Next Part: 62072700 *Qty: 1 INTERNAL REINFORCEMENT FOR R.H. REAR FENDER $35.61
Location: 27 Prev | Next Part: 140917 *Qty: 1 FUEL TANK PROTECTION PLATE $1,270.07
Location: 28 Prev | Next Part: 70000630 *Qty: 1 UPPER SIDE OF L.H. REAR FENDER $1,720.39
Location: 28 Prev | Next Part: 70000629 *Qty: 1 UPPER SIDE OF R.H. REAR FENDER $1,186.47
Location: 29 Prev | Next Part: 60324506 *Qty: 4 CUP Superseded
Location: 30 Prev | Next Part: 20043105 *Qty: 2 "PININFARINA" ORNAMENT $109.35
Location: 31 Prev | Next Part: 70000632 *Qty: 1 LOWER SIDE OF L.H. REAR FENDER $283.66
Location: 31 Prev | Next Part: 70000631 *Qty: 1 LOWER SIDE OF R.H. REAR FENDER $1,073.12
Location: 32 Prev | Next Part: 62076200 *Qty: 1 L.H. LOWER PLATE $57.72
Location: 32 Prev | Next Part: 62076100 *Qty: 1 R.H. LOWER PLATE $57.72
Location: 33 Prev | Next Part: 70000634 *Qty: 1 LH. DOOR STRIP
Completed with plate 65
Call
Location: 33 Prev | Next Part: 70000633 *Qty: 1 R.H. DOOR STRIP
Completed with plate 65
$661.98
Location: 34 Prev | Next Part: 12575421 *Qty: 11 NUT Superseded
Location: 35 Prev | Next Part: 12640677 *Qty: 11 WASHER
Not for GD
Call
Location: 35 Prev | Next Part: 12643777 *Qty: 11 WASHER
Valid for GD
Superseded
Location: 36 Prev | Next Part: 14202985 *Qty: 9 BLOCK $0.90
Location: 37 Prev | Next Part: 15785101 *Qty: 9 SCREW Call
Location: 38 Prev | Next Part: 62858800 *Qty: 1 GASKET FOR TURRET $10.53
Location: 39 Prev | Next Part: 62660300 *Qty: 2 GASKET $9.68
Location: 40 Prev | Next Part: 62660200 *Qty: 1 PROTECTION $989.92
Location: 41 Prev | Next Part: 63510200 *Qty: 1 L.H. LOWER FRONT GRAVEL GUARD $169.86
Location: 41 Prev | Next Part: 62095300 *Qty: 1 R.H. LOWER FRONT GRAVEL GUARD $115.10
Location: 42 Prev | Next Part: 14202180 *Qty: 6 BLOCK $0.90
Location: 43 Prev | Next Part: 12638177 *Qty: 14 WASHER Superseded
Location: 44 Prev | Next Part: 15903978 *Qty: 14 SCREW Superseded
Location: 45 Prev | Next Part: 62128000 *Qty: 1 L.H. LOWER GUARD FOR UNDERBODY $463.05
Location: 45 Prev | Next Part: 62127900 *Qty: 1 R.H. LOWER GUARD FOR UNDERBODY Call
Location: 46 Prev | Next Part: 63393200 *Qty: 2 GASKET $13.07
Location: 47 Prev | Next Part: 14215480 *Qty: 14 BLOCK Superseded
Location: 48 Prev | Next Part: 62066000 *Qty: 1 COVERING FOR L.H. UNDERDOOR $455.06
Location: 48 Prev | Next Part: 62065900 *Qty: 1 COVERING FOR R.H. UNDERDOOR $781.09
Location: 49 Prev | Next Part: 62059500 *Qty: 1 FRONT SIDE COVERING Call
Location: 50 Prev | Next Part: 10977624 *Qty: 6 SCREW $0.90
Location: 51 Prev | Next Part: 14647590 *Qty: 6 NUT $0.90
Location: 52 Prev | Next Part: 13577701 *Qty: 6 WASHER $0.90
Location: 53 Prev | Next Part: 62115800 *Qty: 14 NUT $2.96
Location: 54 Prev | Next Part: 13836971 *Qty: 14 SCREW $0.90
Location: 55 Prev | Next Part: 62065100 *Qty: 1 LOWER SIDE OF L.H. FRONT FENDER $68.32
Location: 55 Prev | Next Part: 62065000 *Qty: 1 LOWER SIDE OF R.H. FRONT FENDER Call
Location: 56 Prev | Next Part: 62065200 *Qty: 2 FENDER FRONT PROTECTION $64.82
Location: 57 Prev | Next Part: 62064500 *Qty: 1 COMPLETE L.H. FRONT FENDER
Not for USA and CDN
$3,090.74
Location: 57 Prev | Next Part: 62921500 *Qty: 1 COMPLETE L.H. FRONT FENDER
Valid for USA and CDN
$1,874.70
Location: 57 Prev | Next Part: 62064400 *Qty: 1 COMPLETE R.H. FRONT FENDER
Not for USA and CDN
Call
Location: 57 Prev | Next Part: 62921400 *Qty: 1 COMPLETE R.H. FRONT FENDER
Valid for USA and CDN
Call
Location: 58 Prev | Next Part: 63006800 *Qty: 1 REAR SHIELD NET $85.63
Location: 59 Prev | Next Part: 63006700 *Qty: 1 FRAME $90.96
Location: 60 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 61 Prev | Next Part: 14054048 *Qty: 4 NUT $1.28
Location: 62 Prev | Next Part: 20286209 *Qty: 4 SCREW Call
Location: 63 Prev | Next Part: 15688078 *Qty: 4 SCREW Superseded
Location: 63 Prev | Next Part: 15645507 *Qty: 4 SCREW $0.90
Location: 64 Prev | Next Part: 12638177 *Qty: 8 WASHER Superseded
Location: 65 Prev | Next Part: 62055200 *Qty: 2 STRIKER FIXING PLATE $7.53
Location: 66 Prev | Next Part: 12638177 *Qty: 14 WASHER Superseded
Location: 67 Prev | Next Part: 12638177 *Qty: 20 WASHER Superseded
Location: 68 Prev | Next Part: 12575421 *Qty: 2 NUT
Valid for GD
Superseded
Location: 68 Prev | Next Part: 12574121 *Qty: 2 NUT
Not for GD
Superseded
Location: 69 Prev | Next Part: 12643777 *Qty: 2 WASHER
Valid for GD
Superseded
Location: 69 Prev | Next Part: 12624177 *Qty: 2 WASHER
Not for GD
$0.90
Location: 70 Prev | Next Part: 63251500 *Qty: 1 L.H. REAR GASKET $116.61
Location: 70 Prev | Next Part: 63251400 *Qty: 1 R.H. REAR GASKET $360.02
Location: 71 Prev | Next Part: 60517200 *Qty: 6 CLIP $4.11

* Quantity shown indicates the number of pieces used in the diagram.
