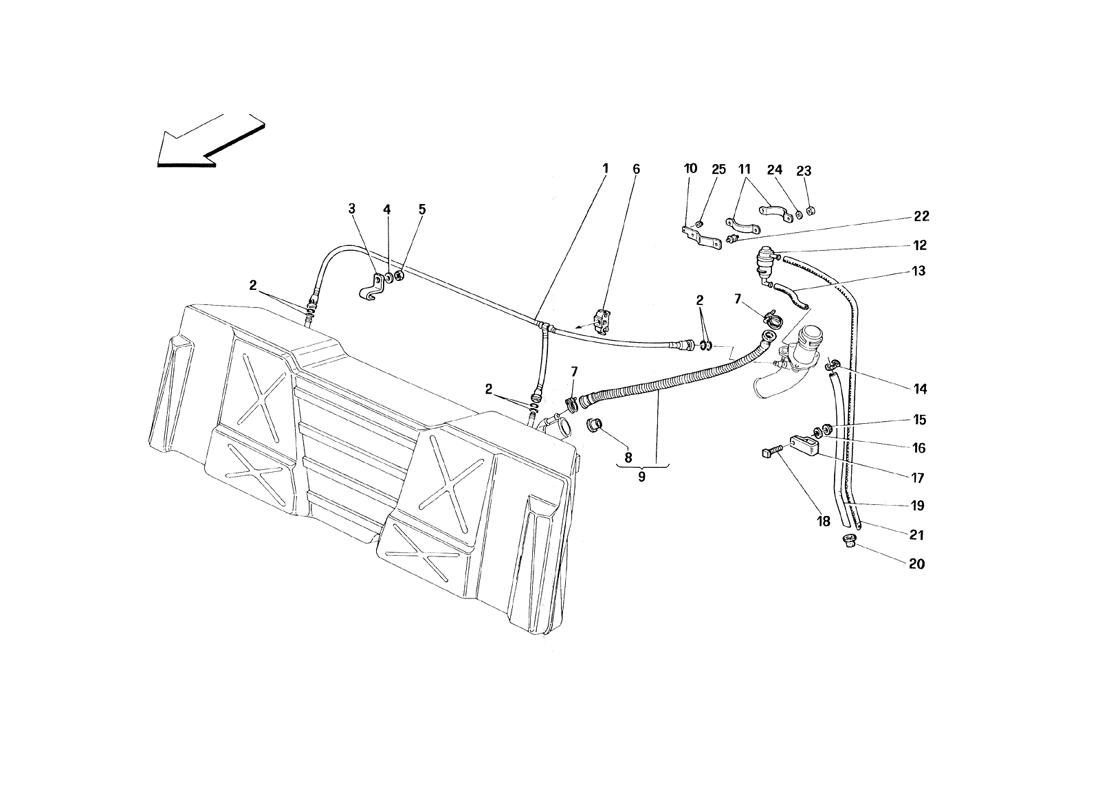

ANTIEVAPORATION DEVICE - VALID FOR CATALYTIC VEHICLES AND SA

Go to Split View

ANTIEVAPORATION DEVICE - VALID FOR CATALYTIC VEHICLES AND SA

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 141547 *Qty: 1 VENT PIPE
Valid till car Nr. 82368
Superseded
Location: 1 Prev | Next Part: 142997 *Qty: 1 VENT PIPE
Valid from car Nr. 82339
$480.17
Location: 2 Prev | Next Part: 133956 *Qty: 6 O.R. GASKET $1.22
Location: 3 Prev | Next Part: 144467 *Qty: 2 CLIP $22.76
Location: 4 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 12575411 *Qty: 2 NUT Superseded
Location: 6 Prev | Next Part: 141699 *Qty: 4 CLIP $1.26
Location: 7 Prev | Next Part: 12181290 *Qty: 2 SCREW COLLAR Superseded
Location: 8 Prev | Next Part: 142106 *Qty: 2 GASKET $8.81
Location: 9 Prev | Next Part: 142104 *Qty: 1 VENT PIPE FROM TANK TO UNION Call
Location: 10 Prev | Next Part: 149438 *Qty: 1 BRACKET $3.86
Location: 11 Prev | Next Part: 149437 *Qty: 2 BRACKET $1.75
Location: 12 Prev | Next Part: 139568 *Qty: 1 ANTI-TILTING VALVE Call
Location: 13 Prev | Next Part: 141704 *Qty: 1 VENT PIPE FROM UNION TO VALVE $1.42
Location: 14 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 15 Prev | Next Part: 14058411 *Qty: 2 NUT Superseded
Location: 16 Prev | Next Part: 14496401 *Qty: 2 WASHER Superseded
Location: 17 Prev | Next Part: 10418801 *Qty: 2 BRACKET $0.90
Location: 18 Prev | Next Part: 11944511 *Qty: 2 SCREW $2.29
Location: 19 Prev | Next Part: 62807100 *Qty: 1 VENT PIPE $2.80
Location: 20 Prev | Next Part: 10396880 *Qty: 1 CABLE GROMMET $2.23
Location: 21 Prev | Next Part: 141258 *Qty: 1 VENT PIPE FROM VALVE $12.79
Location: 22 Prev | Next Part: 113021 *Qty: 2 PAD $11.45
Location: 23 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 24 Prev | Next Part: 127493 *Qty: 4 WASHER Superseded
Location: 25 Prev | Next Part: 12575411 *Qty: 1 NUT Superseded

* Quantity shown indicates the number of pieces used in the diagram.
