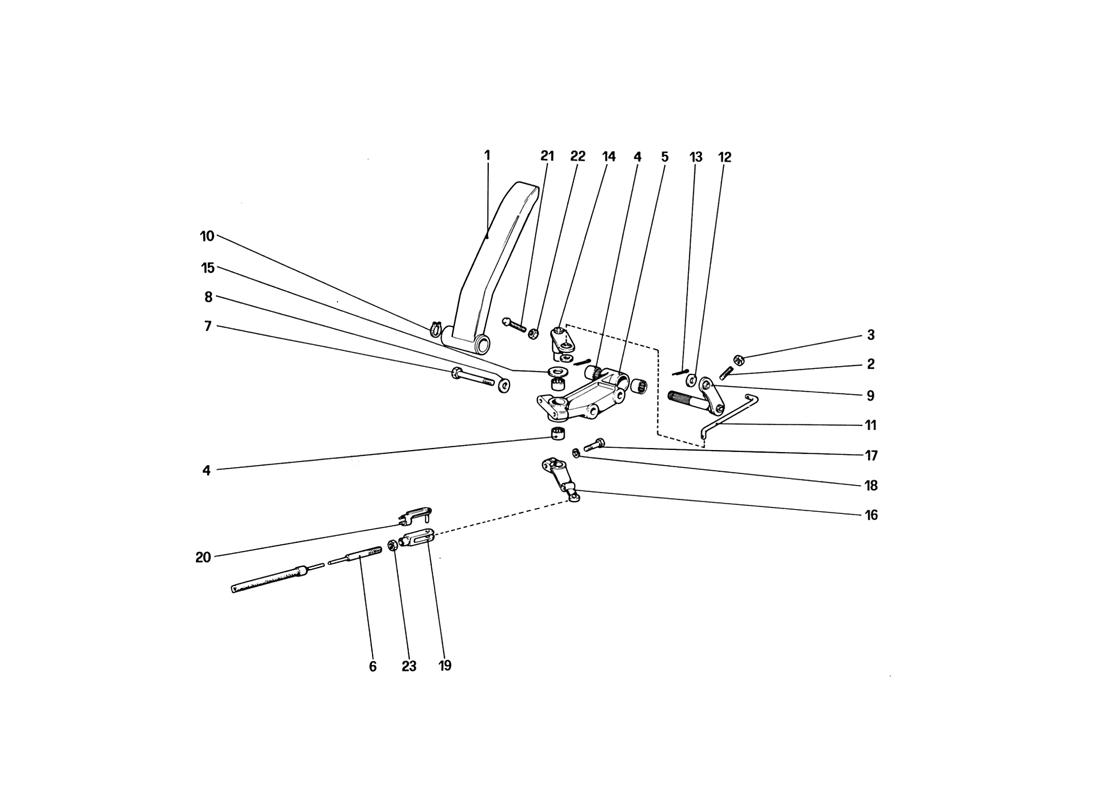

THROTTLE CONTROL (VARIANTS FOR RHD VERSION)

Go to Split View

THROTTLE CONTROL (VARIANTS FOR RHD VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138438 *Qty: 1 Accelerator pedal $440.35
Location: 2 Prev | Next Part: 13708910 *Qty: 1 Adjust screw $0.90
Location: 3 Prev | Next Part: 15896411 *Qty: 1 Locknut Superseded
Location: 4 Prev | Next Part: 101677 *Qty: 4 Roller cage $2.43
Location: 5 Prev | Next Part: 110933 *Qty: 1 Support for accelerator pedal $168.21
Location: 6 Prev | Next Part: 120498 *Qty: 1 Control cable for accelerator $78.98
Location: 7 Prev | Next Part: 16136321 *Qty: 2 Screw $1.05
Location: 8 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 9 Prev | Next Part: 138441 *Qty: 1 Pin $176.83
Location: 10 Prev | Next Part: 11066076 *Qty: 1 Seeger ring Superseded
Location: 11 Prev | Next Part: 106297 *Qty: 1 Tie rod $17.89
Location: 12 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 10734201 *Qty: 2 Split pin Call
Location: 14 Prev | Next Part: 107158 *Qty: 1 Pin Call
Location: 15 Prev | Next Part: 107826 *Qty: 1 Shim $4.32
Location: 16 Prev | Next Part: 110934 *Qty: 1 Lower lever $140.82
Location: 17 Prev | Next Part: 16043421 *Qty: 1 Screw Superseded
Location: 18 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 19 Prev | Next Part: 100655 *Qty: 1 Fork $140.78
Location: 20 Prev | Next Part: 100656 *Qty: 1 Pin with strap $2.72
Location: 21 Prev | Next Part: 100640 *Qty: 1 Adjust screw $7.47
Location: 22 Prev | Next Part: 16102311 *Qty: 1 Locknut Superseded
Location: 24 Prev | Next Part: 10752911 *Qty: 1 Locknut Call

* Quantity shown indicates the number of pieces used in the diagram.
