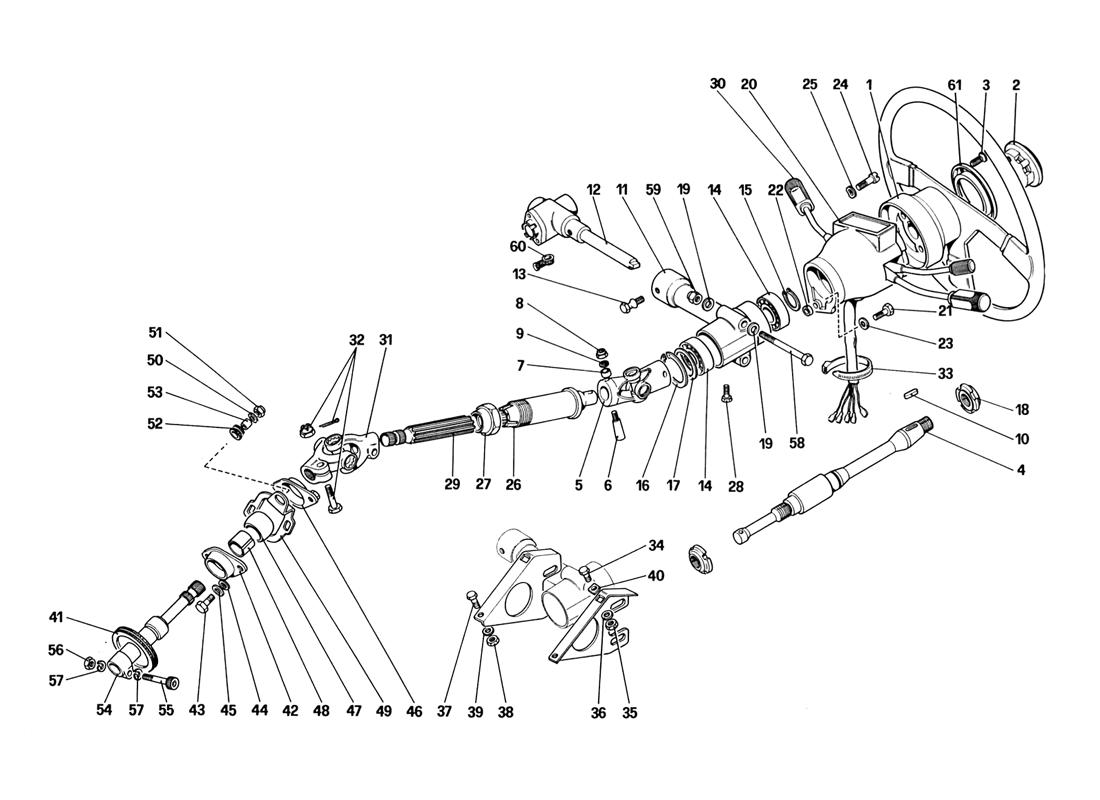

STEERING COLUMN

STEERING COLUMN

Location Part # Quantity* Description Price Add To Cart
1 130912 1 Steering wheel complete - After exhaustion use no. 136549 Superseded
1 119023 1 Steering wheel complete - After exhaustion use no. 130912 Superseded
3 111189 6 Screw $6.19
4 108413 1 Upper steering shaft $497.17
5 112572 1 Universal joint Unavailable
6 112573 2 Pin $55.05
7 112571 2 Spacer $9.60
8 12574221 2 Nut Superseded
9 10519401 2 Washer Superseded
10 101106 1 Key $7.39
11 106611 1 Mounting, steering column and anti-theft device $947.22
12 127279 1 Anti-theft device - Not for US - SA - J - Until car no. 76626 Unavailable
12 127298 1 Anti-theft device - From car no. 76627 Superseded
12 127298 1 Anti-theft device - For US - SA - J Superseded
13 106615 1 Screw Superseded
14 101104 2 Bearing $16.46
15 11067376 1 Seeger ring $1.68
16 11060576 1 Seeger ring $1.81
17 107490 1 Shim, thickness 0,2 mm. - Possible fitting $12.89
17 107489 1 Ditto, thickness 0,3 mm. - Possible fitting $12.89
17 101101 1 Ditto, thickness 0,5 mm. - Possible fitting $1.68
17 107488 1 Ditto, thickness 0,4 mm. - Possible fitting $3.13
18 106610 2 Ring nut $84.65
19 10519621 4 Washer $0.90
20 120429 1 Main swith housing Unavailable
21 10902221 1 Screw Unavailable
22 12639701 1 Spacer Unavailable
23 12601271 1 Washer Superseded
24 10389901 2 Screw Unavailable
25 12544171 2 Washer Superseded
26 117379 1 Guide tube $653.40
27 106870 1 Nut $16.42
28 10979421 1 Screw Unavailable
29 108737 1 Lower steering shaft $220.46
30 61838400 1 Mainswitch Unavailable
31 103343 1 Universal joint Unavailable
32 105032 1 Fixing items for joint $96.34
33 103755 1 Clamp Unavailable
34 10902121 2 Screw Superseded
35 15896211 2 Nut Superseded
36 106850 2 Washer Superseded
37 16043221 2 Screw Unavailable
38 16100811 2 Nut Superseded
39 106852 2 Washer Superseded
40 106425 2 Plate $22.39
41 112466 1 Guiding bush $31.83
42 103292 1 Lower flange $14.11
43 10902321 2 Screw Superseded
44 106850 2 Washer Superseded
45 10519401 2 Washer Superseded
46 123683 1 Upper flange $16.42
47 103297 1 Ball- $61.37
48 103370 1 Bush Unavailable
49 123682 1 Mounting for joint $199.87
50 12643701 2 Washer Superseded
51 12574211 2 Nut Superseded
52 103549 2 Anti-vibration rubber $1.50
53 103550 2 Bush $6.82
54 123905 1 Pinion extension $771.05
55 125518 1 Screw $2.05
56 125519 1 Nut $1.30
57 12601271 2 Washer Superseded
58 103576 2 Bolt $20.26
59 16104421 2 Nut Superseded
60 100285 1 Cap - For US - SA - J and from car no. 76627 Superseded
61 136507 1 Ring for steering wheel $61.81

* Quantity shown indicates the number of pieces used in the diagram.
