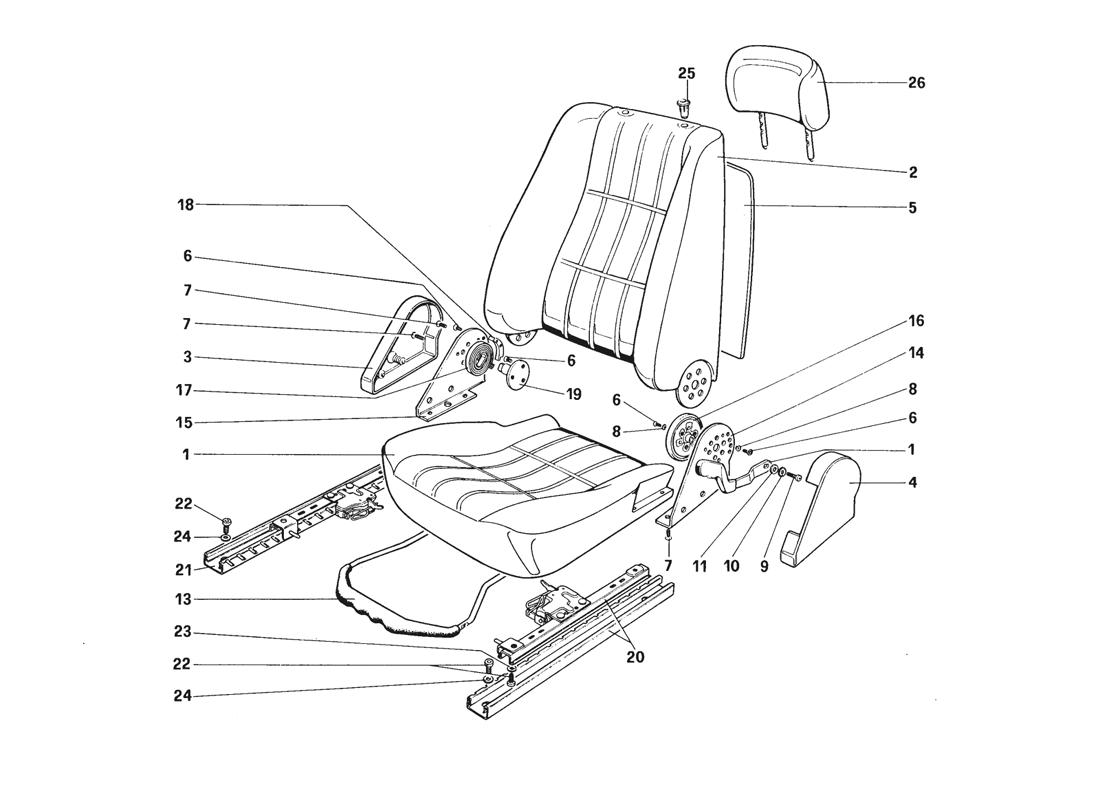

SEAT

Go to Split View

SEAT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62529300 *Qty: 1 R.H. seat complete R.H.D. Call
Location: 1 Prev | Next Part: 62441400 *Qty: 1 R.H. seat complete L.H.D. $3,294.96
Location: 1 Prev | Next Part: 62441100 *Qty: 2 Cushion with covering $57.19
Location: 1 Prev | Next Part: 62529400 *Qty: 1 L.H. seat complete R.H.D. Call
Location: 1 Prev | Next Part: 62442900 *Qty: 2 Covering $1,170.86
Location: 2 Prev | Next Part: 62441800 *Qty: 2 Squab with covering Call
Location: 2 Prev | Next Part: 62443000 *Qty: 2 Covering $1,155.64
Location: 3 Prev | Next Part: 62456700 *Qty: 1 R.H. cover for L.H. seat $250.98
Location: 3 Prev | Next Part: 62444900 *Qty: 1 R.H. cover for R.H. seat $204.05
Location: 4 Prev | Next Part: 62445000 *Qty: 1 L.H. cover for R.H. seat $212.47
Location: 4 Prev | Next Part: 62456800 *Qty: 1 L.H. cover for L.H. seat $250.98
Location: 5 Prev | Next Part: 60765400 *Qty: 1 Rear plate passenger seat - With pocket $835.83
Location: 5 Prev | Next Part: 60209400 *Qty: 1 Rear plate driver seat $540.49
Location: 6 Prev | Next Part: 14441137 *Qty: 22 Screw $0.90
Location: 7 Prev | Next Part: 14441937 *Qty: 12 Screw Call
Location: 8 Prev | Next Part: 12606876 *Qty: 12 Washer Call
Location: 9 Prev | Next Part: 13274011 *Qty: 2 Screw $0.90
Location: 10 Prev | Next Part: 12605270 *Qty: 2 Washer $0.90
Location: 11 Prev | Next Part: 20297008 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 62461000 *Qty: 1 Lever for L.H. seat Call
Location: 12 Prev | Next Part: 62460900 *Qty: 1 Lever for R.H. seat Call
Location: 13 Prev | Next Part: 62446500 *Qty: 2 Lever $101.55
Location: 14 Prev | Next Part: 62515100 *Qty: 2 L.H. Bracket $47.64
Location: 15 Prev | Next Part: 62515000 *Qty: 2 R.H. bracket $47.64
Location: 16 Prev | Next Part: 62444500 *Qty: 1 Articulation for R.H. seat Call
Location: 16 Prev | Next Part: 62444600 *Qty: 1 Articulation for L.H. seat $56.74
Location: 17 Prev | Next Part: 62446400 *Qty: 2 Spring $18.92
Location: 18 Prev | Next Part: 62515200 *Qty: 2 Plate $28.03
Location: 19 Prev | Next Part: 62515300 *Qty: 2 Support fro spring $33.16
Location: 20 Prev | Next Part: 62444000 *Qty: 2 L.H. guide for seat Call
Location: 21 Prev | Next Part: 62443900 *Qty: 2 R.H. guide for seat Call
Location: 22 Prev | Next Part: 40294308 *Qty: 16 Screw $5.33
Location: 23 Prev | Next Part: 106852 *Qty: 8 Washer Superseded
Location: 24 Prev | Next Part: 14499400 *Qty: 8 Washer Call
Location: 25 Prev | Next Part: 20058905 *Qty: 4 Bushing for headrest Call
Location: 26 Prev | Next Part: 60757100 *Qty: 2 Headrest with covering $647.87
Location: 26 Prev | Next Part: 61863300 *Qty: 2 Covering $430.76

* Quantity shown indicates the number of pieces used in the diagram.
