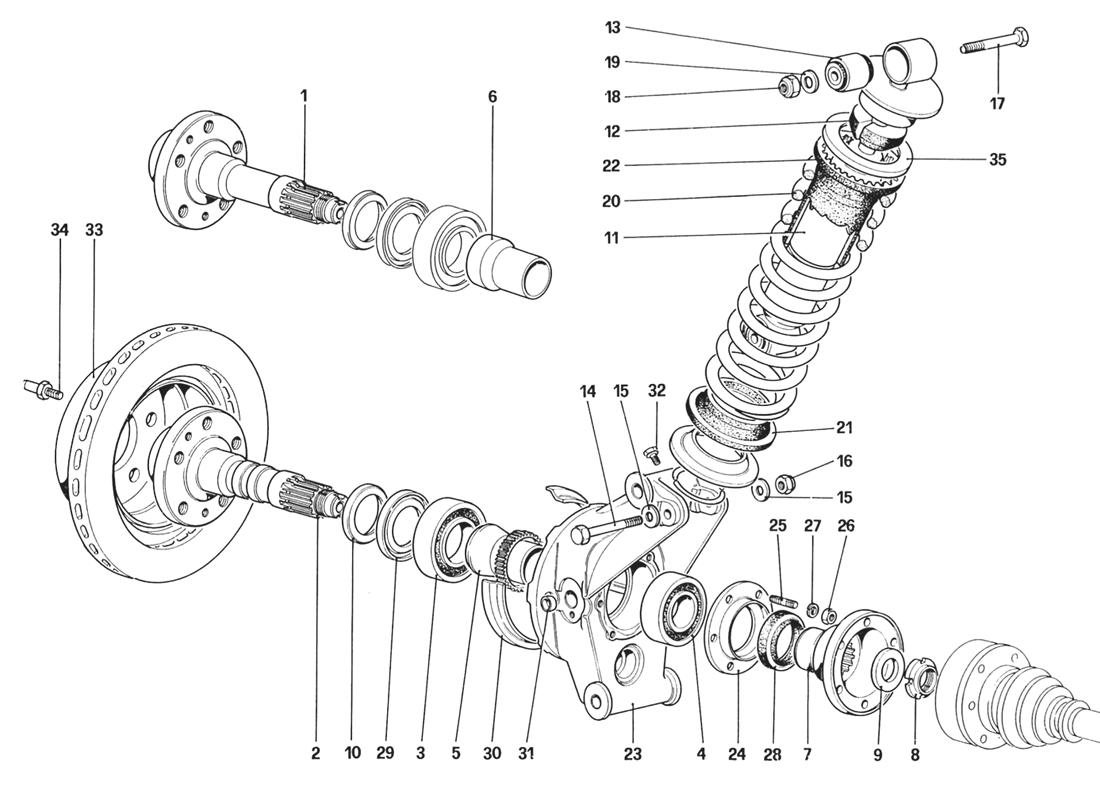

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626)

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124964 *Qty: 2 (B) Shaft with rear hub $2,246.25
Location: 2 Prev | Next Part: 132408 *Qty: 2 (A) Shaft with rear hub Superseded
Location: 4 Prev | Next Part: 125934 *Qty: 2 Inner bearing Superseded
Location: 5 Prev | Next Part: 136308 *Qty: 2 (A) Spacer with toothed wheel $208.71
Location: 6 Prev | Next Part: 120876 *Qty: 2 (B) Spacer $118.14
Location: 7 Prev | Next Part: 119372 *Qty: 2 Flange connecting axle shafts $209.44
Location: 8 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 9 Prev | Next Part: 105511 *Qty: 2 Washer $14.71
Location: 10 Prev | Next Part: 124965 *Qty: 2 Spacer $54.17
Location: 11 Prev | Next Part: 130729 *Qty: 2 Shock absorber - Up to car no. 78612 $1,199.81
Location: 11 Prev | Next Part: 138264 *Qty: 2 Shoch absorber - Staring from car no. 78613 $1,319.23
Location: 11 Prev | Next Part: 138898 *Qty: 2 Seeger ring - with shock absorber no. 138264 $0.90
Location: 11 Prev | Next Part: 138897 *Qty: 2 Plate for shock absorber with shock absorber no. 138264 $66.06
Location: 12 Prev | Next Part: 104442 *Qty: 2 Pad - With shock absorber no. 130729 Call
Location: 12 Prev | Next Part: 138435 *Qty: 2 Pad - With shock absorber no. 138264 $41.10
Location: 13 Prev | Next Part: 130516 *Qty: 4 Estendblock $54.89
Location: 14 Prev | Next Part: 112441 *Qty: 2 Screw $113.46
Location: 15 Prev | Next Part: 106616 *Qty: 4 Washer $1.78
Location: 16 Prev | Next Part: 16105121 *Qty: 2 Selflocking nut Superseded
Location: 17 Prev | Next Part: 106419 *Qty: 2 Screw $24.19
Location: 18 Prev | Next Part: 16105121 *Qty: 2 Selflocking nut Superseded
Location: 19 Prev | Next Part: 13550521 *Qty: 2 Washer $0.90
Location: 20 Prev | Next Part: 113516 *Qty: 2 Suspension spring $432.19
Location: 21 Prev | Next Part: 103264 *Qty: 2 Lower spacer $50.11
Location: 22 Prev | Next Part: 103263 *Qty: 2 Upper spacer $35.40
Location: 23 Prev | Next Part: 130310 *Qty: 2 Hub holder, (left) $1,764.62
Location: 23 Prev | Next Part: 130309 *Qty: 2 Hub holder, (right) $1,755.55
Location: 24 Prev | Next Part: 125976 *Qty: 2 Flange for bearing $66.54
Location: 25 Prev | Next Part: 13543321 *Qty: 12 Stud Superseded
Location: 26 Prev | Next Part: 16100811 *Qty: 12 Nut Superseded
Location: 27 Prev | Next Part: 127496 *Qty: 12 Washer $0.90
Location: 28 Prev | Next Part: 115968 *Qty: 2 Sealing ring $131.59
Location: 29 Prev | Next Part: 124966 *Qty: 2 Centrifugal ring $37.60
Location: 30 Prev | Next Part: 103117 *Qty: 2 Splash guard $16.96
Location: 31 Prev | Next Part: 14328601 *Qty: 2 (B) Plug $1.17
Location: 32 Prev | Next Part: 10979421 *Qty: 2 (B) Screw $0.90
Location: 33 Prev | Next Part: 117186 *Qty: 2 Brake disc $496.57
Location: 34 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 35 Prev | Next Part: 129435 *Qty: 2 Spacer - For US-CH-SA $58.02

* Quantity shown indicates the number of pieces used in the diagram.
