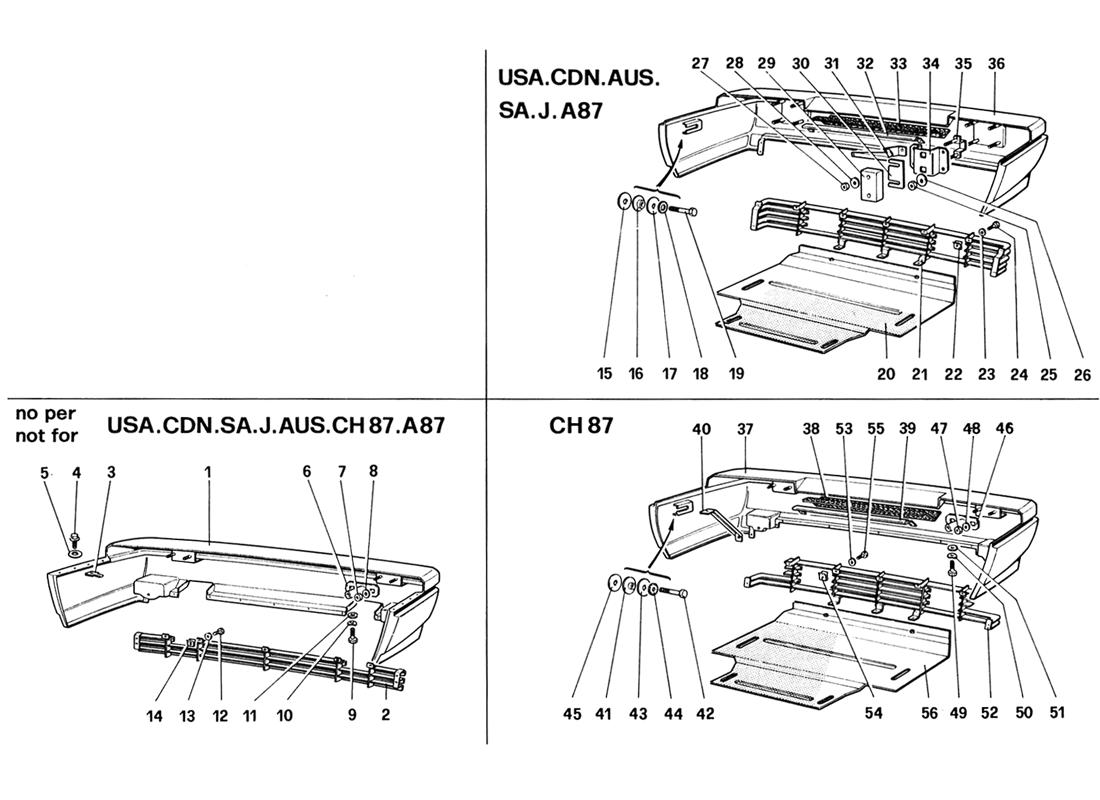

REAR BUMPERS

Go to Split View

REAR BUMPERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61740400 *Qty: 1 Lower panel Superseded
Location: 2 Prev | Next Part: 61734400 *Qty: 1 Grill $958.52
Location: 4 Prev | Next Part: 15926101 *Qty: 8 Screw $0.97
Location: 5 Prev | Next Part: 12640608 *Qty: 8 Washer Superseded
Location: 6 Prev | Next Part: 41740600 *Qty: 2 Bracket Call
Location: 7 Prev | Next Part: 16104111 *Qty: 4 Nut Superseded
Location: 8 Prev | Next Part: 20291308 *Qty: 4 Washer $0.90
Location: 9 Prev | Next Part: 16043411 *Qty: 2 Screw $1.29
Location: 10 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 11 Prev | Next Part: 12642001 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 15688278 *Qty: 9 Screw Superseded
Location: 13 Prev | Next Part: 12637806 *Qty: 9 Washer $0.90
Location: 14 Prev | Next Part: 61066500 *Qty: 9 Clip $3.03
Location: 15 Prev | Next Part: 61802800 *Qty: 2 Spacer $2.98
Location: 16 Prev | Next Part: 61693400 *Qty: 2 Bushing - Until exhaustion Superseded
Location: 16 Prev | Next Part: 62428800 *Qty: 2 Bushin - After exaustion 61693400 $30.81
Location: 17 Prev | Next Part: 12646201 *Qty: 2 Wahser $0.90
Location: 18 Prev | Next Part: 10615670 *Qty: 2 Washer $0.90
Location: 19 Prev | Next Part: 16043821 *Qty: 2 Screw Superseded
Location: 20 Prev | Next Part: 61881000 *Qty: 1 Protection Call
Location: 21 Prev | Next Part: 61737700 *Qty: 1 Grill $654.01
Location: 22 Prev | Next Part: 61067800 *Qty: 9 Clip $0.90
Location: 23 Prev | Next Part: 12637806 *Qty: 9 Washer $0.90
Location: 24 Prev | Next Part: 15688278 *Qty: 9 Screw Superseded
Location: 25 Prev | Next Part: 16104111 *Qty: 8 Nut Superseded
Location: 26 Prev | Next Part: 10519601 *Qty: 8 Washer Superseded
Location: 27 Prev | Next Part: 12574511 *Qty: 4 Nut Superseded
Location: 28 Prev | Next Part: 12638601 *Qty: 4 Washer $0.90
Location: 29 Prev | Next Part: 61791900 *Qty: 2 Plug $35.73
Location: 30 Prev | Next Part: 61792000 *Qty: 1 Spacer $12.60
Location: 31 Prev | Next Part: - *Qty: 1 L.H. bracket (first cars only) Call
Location: 31 Prev | Next Part: - *Qty: 1 R.H. bracket (first cars only) Call
Location: 32 Prev | Next Part: 61923600 *Qty: 1 Angle fixing net Call
Location: 33 Prev | Next Part: 61918300 *Qty: 1 Net Call
Location: 34 Prev | Next Part: 61736300 *Qty: 2 Bracket $94.56
Location: 35 Prev | Next Part: 61791700 *Qty: 2 Bracket $18.45
Location: 36 Prev | Next Part: 61953400 *Qty: 1 Lower panel - CDN Superseded
Location: 36 Prev | Next Part: 61735900 *Qty: 1 Lower panel - Not for CDN Superseded
Location: 37 Prev | Next Part: 61972900 *Qty: 1 Lower panel Call
Location: 38 Prev | Next Part: 61918300 *Qty: 1 Net Call
Location: 39 Prev | Next Part: 61923600 *Qty: 1 Angle fixing net Call
Location: 40 Prev | Next Part: 61973000 *Qty: 2 Bracket $55.10
Location: 41 Prev | Next Part: 61693400 *Qty: 2 Bushing - Until exaustion Superseded
Location: 41 Prev | Next Part: 62428800 *Qty: 2 Bushing - After exhaustion 61693400 $30.81
Location: 42 Prev | Next Part: 16043821 *Qty: 2 Screw Superseded
Location: 43 Prev | Next Part: 12646201 *Qty: 2 Washer $0.90
Location: 44 Prev | Next Part: 10615670 *Qty: 2 Washer $0.90
Location: 45 Prev | Next Part: 61802800 *Qty: 2 Spacer $2.98
Location: 46 Prev | Next Part: 61740602 *Qty: 2 Bracket Call
Location: 47 Prev | Next Part: 16104111 *Qty: 4 Nut Superseded
Location: 48 Prev | Next Part: 20291308 *Qty: 4 Washer $0.90
Location: 49 Prev | Next Part: 16043411 *Qty: 2 Screw $1.29
Location: 50 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 51 Prev | Next Part: 12642001 *Qty: 2 Washer $0.90
Location: 52 Prev | Next Part: 61972700 *Qty: 1 Grill $1,043.61
Location: 53 Prev | Next Part: 12637806 *Qty: 9 Washer $0.90
Location: 54 Prev | Next Part: 61067800 *Qty: 9 Clip $0.90
Location: 55 Prev | Next Part: 15688278 *Qty: 9 Screw Superseded
Location: 56 Prev | Next Part: 61881000 *Qty: 1 Protection Call

* Quantity shown indicates the number of pieces used in the diagram.
