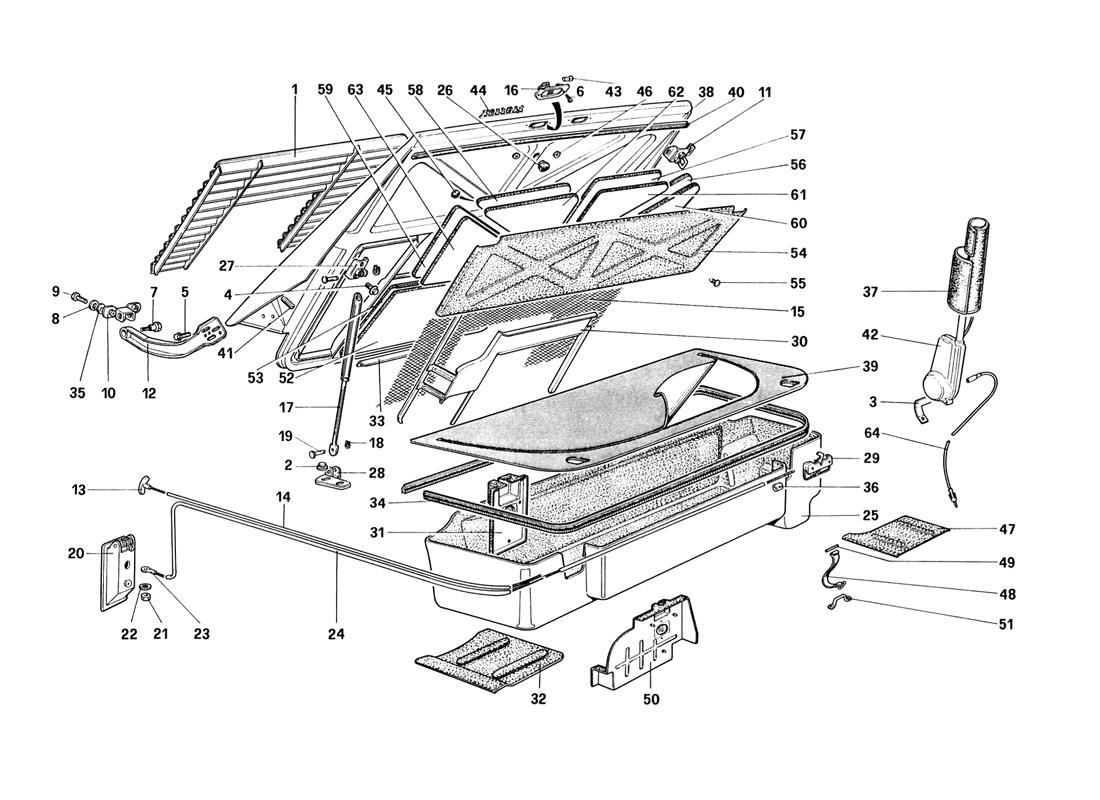

REAR BONNET AND LUGGAGE COMPARTMENT COVERING

Go to Split View

REAR BONNET AND LUGGAGE COMPARTMENT COVERING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61896300 *Qty: 1 Grille $1,426.29
Location: 2 Prev | Next Part: 13832101 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 13835871 *Qty: 4 Screw $1.87
Location: 5 Prev | Next Part: 13838971 *Qty: 6 Screw Superseded
Location: 6 Prev | Next Part: 20297800 *Qty: 4 Screw $0.95
Location: 7 Prev | Next Part: 60017506 *Qty: 2 Pin $9.05
Location: 8 Prev | Next Part: 12646701 *Qty: 4 Washer Superseded
Location: 9 Prev | Next Part: 16043321 *Qty: 4 Screw $0.90
Location: 10 Prev | Next Part: 60257706 *Qty: 1 R.H. fixed hinge $41.43
Location: 10 Prev | Next Part: 60257805 *Qty: 1 L.H. fixed hinge $41.43
Location: 11 Prev | Next Part: 60560100 *Qty: 2 Pin Call
Location: 12 Prev | Next Part: 60256906 *Qty: 1 L.H. mobile hinge $44.67
Location: 12 Prev | Next Part: 60256807 *Qty: 1 R.H. mobile hinge $40.25
Location: 13 Prev | Next Part: 60510500 *Qty: 1 Safety cable Call
Location: 14 Prev | Next Part: 60024502 *Qty: 1 Sheath, safery cable Call
Location: 15 Prev | Next Part: 60434602 *Qty: 1 Net under the grille Call
Location: 16 Prev | Next Part: 109388 *Qty: 2 Number plate light (= 60044906) Superseded
Location: 17 Prev | Next Part: 60592800 *Qty: 2 Support $58.53
Location: 18 Prev | Next Part: 11087876 *Qty: 4 Seeger $0.90
Location: 19 Prev | Next Part: 60599500 *Qty: 4 Pin $17.71
Location: 20 Prev | Next Part: 60086105 *Qty: 1 Bonnet handle Superseded
Location: 21 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 22 Prev | Next Part: 10615371 *Qty: 1 Washer $0.90
Location: 23 Prev | Next Part: 60277001 *Qty: 1 Cable $42.32
Location: 24 Prev | Next Part: 60024601 *Qty: 1 Sheath bonnet cable L.H.D. Call
Location: 24 Prev | Next Part: 60191509 *Qty: 1 Sehath bonnet cable R.H.D. $50.83
Location: 25 Prev | Next Part: 61813100 *Qty: 1 Carpet
Not for US- J-SA - C7 - AUS -C8
$408.87
Location: 25 Prev | Next Part: 61814800 *Qty: 1 Central carpet
For US - J - SA - AUS - C7 - C8
$392.35
Location: 26 Prev | Next Part: 112934 *Qty: 1 Plug $8.83
Location: 27 Prev | Next Part: 60597800 *Qty: 1 L.H. bracket Call
Location: 27 Prev | Next Part: 60597700 *Qty: 1 R.H. bracket $155.53
Location: 28 Prev | Next Part: 60598000 *Qty: 1 L.H. bracket $29.66
Location: 28 Prev | Next Part: 60597900 *Qty: 1 R.H. bracket $25.81
Location: 29 Prev | Next Part: 60277407 *Qty: 2 Lock Call
Location: 30 Prev | Next Part: 60735800 *Qty: 1 Water shield panel Call
Location: 31 Prev | Next Part: 61927700 *Qty: 2 Shield, complete - R.H.D. Superseded
Location: 31 Prev | Next Part: 61903700 *Qty: 2 Shield complete
Not for R.H.D. - US - J - SA - C7 - C8
$158.71
Location: 32 Prev | Next Part: 61815000 *Qty: 1 L.H. carpet
For US - J - SA - AUS - C7 - C8
Call
Location: 32 Prev | Next Part: 61813200 *Qty: 1 L.H. carpet
Not for US- J-SA -AUS- C7 - C8
Call
Location: 33 Prev | Next Part: 60218906 *Qty: 1 Drip $31.24
Location: 34 Prev | Next Part: 60286200 *Qty: 1 Gasket Superseded
Location: 35 Prev | Next Part: 10615671 *Qty: 4 Washer $0.90
Location: 36 Prev | Next Part: 60276607 *Qty: 2 Clamp $41.57
Location: 37 Prev | Next Part: 61903600 *Qty: 1 Protection $144.41
Location: 38 Prev | Next Part: 61900200 *Qty: 1 Bonnet - Without spoyler seat
Not for US - J - SA (Can replace 60525400)
$5,406.32
Location: 38 Prev | Next Part: 61900300 *Qty: 1 Bonnet - With spoyler seat
(Can replace 61021100)
$5,070.11
Location: 39 Prev | Next Part: 60114808 *Qty: 1 Trunk covering Call
Location: 40 Prev | Next Part: 60564600 *Qty: 1 Gasket Call
Location: 41 Prev | Next Part: 60568000 *Qty: 2 Rubber piece $2.88
Location: 42 Prev | Next Part: 61717900 *Qty: 1 Radio aerial
After exhaustion use 61897500
Superseded
Location: 43 Prev | Next Part: 101524 *Qty: 2 Lamp - Not for US -J Superseded
Location: 43 Prev | Next Part: 14145990 *Qty: 2 Lamp -For US -J Call
Location: 44 Prev | Next Part: 610250000 *Qty: 1 Ferrari name Call
Location: 45 Prev | Next Part: 112926 *Qty: 1 Plug $0.90
Location: 46 Prev | Next Part: 60324506 *Qty: 2 Clip Superseded
Location: 47 Prev | Next Part: 61814900 *Qty: 1 Lambda R.H. carpet
US - J - SA - AUS - C7 - C8
$78.56
Location: 48 Prev | Next Part: 20171005 *Qty: 1 Belt - US - J - SA - AUS
Until 31-5-87
$44.84
Location: 49 Prev | Next Part: 20103107 *Qty: 1 Pin - US - J - SA - AUS
Until 31-5-87
$3.02
Location: 50 Prev | Next Part: 61904000 *Qty: 1 R.H. plate
US - J - SA - AUS - C7 - C8
$203.08
Location: 50 Prev | Next Part: 61904100 *Qty: 1 L.H. plate
US - J - SA - AUS - C7 - C8
$203.08
Location: 51 Prev | Next Part: 30029904 *Qty: 1 Bracket - US - J - SA - AUS - Until 31-58-7 Call
Location: 52 Prev | Next Part: 61940100 *Qty: 1 Insulation CH $43.70
Location: 53 Prev | Next Part: 61940200 *Qty: 1 Insulation CH $43.70
Location: 54 Prev | Next Part: 61901300 *Qty: 1 Carpet for bonnet $194.48
Location: 55 Prev | Next Part: 14592787 *Qty: 8 Plug $0.90
Location: 56 Prev | Next Part: 61900500 *Qty: 1 Insulation $8.36
Location: 57 Prev | Next Part: 61900600 *Qty: 1 Insulation $8.36
Location: 58 Prev | Next Part: 61900700 *Qty: 1 Insulation $8.36
Location: 59 Prev | Next Part: 61900800 *Qty: 1 Insulation $8.36
Location: 60 Prev | Next Part: 61900900 *Qty: 1 Insulation $26.25
Location: 61 Prev | Next Part: 61901000 *Qty: 1 Insulation $26.25
Location: 62 Prev | Next Part: 61901100 *Qty: 1 Insulation $26.25
Location: 63 Prev | Next Part: 61901200 *Qty: 1 Insulation $26.25
Location: 64 Prev | Next Part: 60895500 *Qty: 1 Cable for radio aerial $53.84

* Quantity shown indicates the number of pieces used in the diagram.
