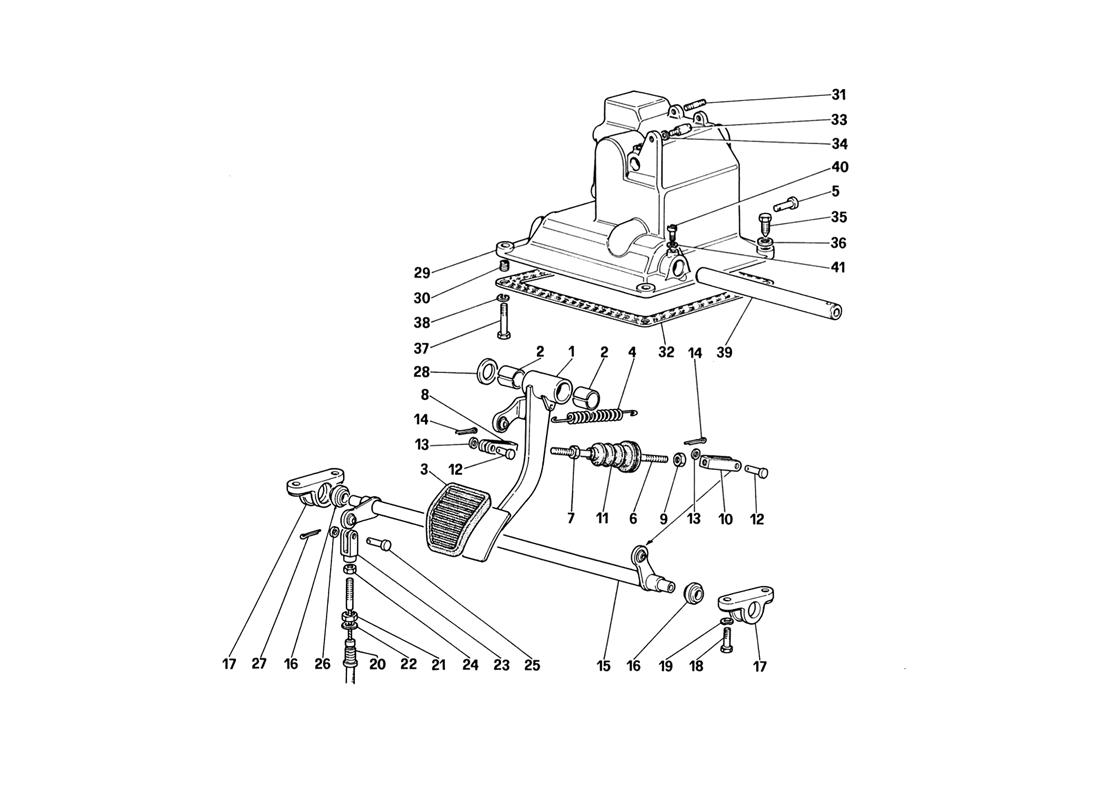

PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION)

Go to Split View

PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 136786 *Qty: 1 Clutch pedal $434.67
Location: 2 Prev | Next Part: 103163 *Qty: 2 Bush $3.81
Location: 3 Prev | Next Part: 132818 *Qty: 1 Pedal cover Call
Location: 4 Prev | Next Part: 117374 *Qty: 1 Return spring $10.65
Location: 5 Prev | Next Part: 129612 *Qty: 1 Pin $3.06
Location: 6 Prev | Next Part: 108343 *Qty: 1 Tie rod $48.22
Location: 6 Prev | Next Part: 16102311 *Qty: 1 Nut
Right thread
Superseded
Location: 7 Prev | Next Part: 106594 *Qty: 1 Fork
Right thread
$13.13
Location: 8 Prev | Next Part: 16102311 *Qty: 1 Nut Superseded
Location: 9 Prev | Next Part: 106901 *Qty: 1 Fork Call
Location: 10 Prev | Next Part: 106120 *Qty: 1 Bellows Call
Location: 11 Prev | Next Part: 10004910 *Qty: 2 Pin $1.34
Location: 12 Prev | Next Part: 12639701 *Qty: 2 Washer Call
Location: 13 Prev | Next Part: 10734201 *Qty: 2 Split pin Call
Location: 14 Prev | Next Part: 136788 *Qty: 1 Return camshaft $345.26
Location: 15 Prev | Next Part: 106102 *Qty: 2 Ball joint $59.32
Location: 16 Prev | Next Part: 136791 *Qty: 2 Support $101.66
Location: 17 Prev | Next Part: 16043621 *Qty: 4 Screw $0.90
Location: 18 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 19 Prev | Next Part: 136794 *Qty: 1 Clutch control cable $56.81
Location: 21 Prev | Next Part: 16103611 *Qty: 1 Nut $0.90
Location: 22 Prev | Next Part: 12601571 *Qty: 1 Washer $0.90
Location: 23 Prev | Next Part: 108575 *Qty: 1 Fork $79.37
Location: 24 Prev | Next Part: 100861 *Qty: 1 Nut $0.90
Location: 25 Prev | Next Part: 103218 *Qty: 1 Pin $37.09
Location: 26 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 27 Prev | Next Part: 10734201 *Qty: 1 Split pin Call
Location: 28 Prev | Next Part: 106083 *Qty: 1 Shim $0.90
Location: 29 Prev | Next Part: 136878 *Qty: 1 Pedal support $1,994.54
Location: 30 Prev | Next Part: 13525770 *Qty: 2 Heli - coil $0.90
Location: 31 Prev | Next Part: 11500121 *Qty: 1 Stud Superseded
Location: 32 Prev | Next Part: 133848 *Qty: 1 Gasket $16.07
Location: 33 Prev | Next Part: 137144 *Qty: 1 Pin $2.94
Location: 34 Prev | Next Part: 106744 *Qty: 1 Washer $0.90
Location: 35 Prev | Next Part: 16139021 *Qty: 2 Screw $2.96
Location: 36 Prev | Next Part: 12601479 *Qty: 2 Washer Superseded
Location: 37 Prev | Next Part: 16043421 *Qty: 2 Screw Superseded
Location: 38 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 39 Prev | Next Part: 129954 *Qty: 1 Pin $370.66
Location: 40 Prev | Next Part: 13276121 *Qty: 1 Screw $1.44
Location: 41 Prev | Next Part: 12601279 *Qty: 1 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
