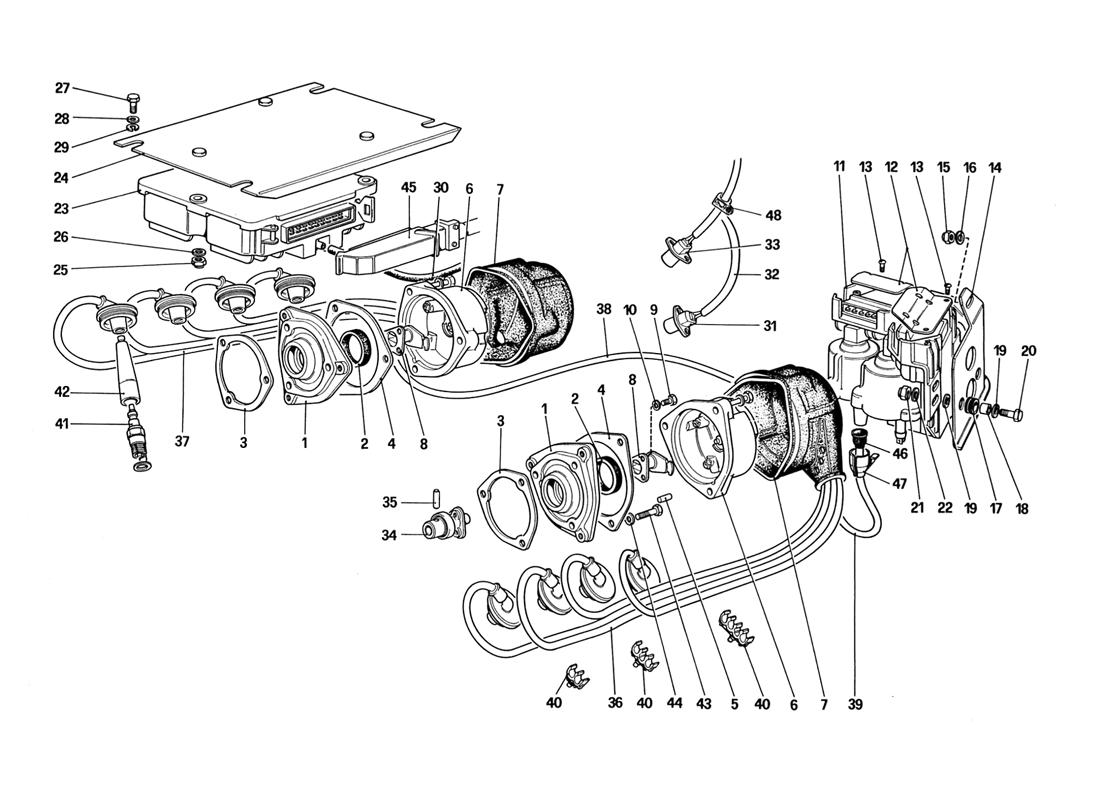

ENGINE IGNITION

ENGINE IGNITION

Location Part # Quantity* Description Price Add To Cart
- HT021 1 Complete HT Leads Set Unavailable
1 133100 2 Cap distributor support Unavailable
2 132453 2 DISTRIBUTOR OIL SEAL $42.49
3 134956 2 Gasket - For C8 Superseded
3 117261 2 Gasket - Not for C8 Superseded
4 119409 2 Gasket $6.84
5 10331111 2 Dowel Unavailable
6 115518 2 Distributor cap Unavailable
7 118889 2 Distributor boot $58.38
8 126139 2 Rotor arm $186.27
9 10444521 6 Screw Unavailable
10 12544071 6 Washer Unavailable
11 127134 2 Power module with coil - After exhaustion use no. 124273 Superseded
12 128169 2 Protection Unavailable
13 15921807 4 Screw Unavailable
14 136940 1 Coil support $39.52
14 127136 1 Coil support $25.46
15 12574211 2 Nut Superseded
16 14496401 2 Washer Superseded
17 103549 4 Bush vibration damping $1.50
18 103550 4 Spacer $6.82
19 12643701 8 Washer Superseded
20 10902821 3 Screw Superseded
20 10903021 1 Screw Superseded
21 12574211 4 Nut Superseded
22 14496401 4 Washer Superseded
23 127422 1 Electronic ignition module Unavailable
24 127918 1 Plate - For US and C8 $66.50
24 127138 1 Plate - Not for US and C8 $54.59
25 12574211 3 Nut Superseded
26 14496401 3 Washer Superseded
27 10902021 4 Screw Superseded
28 12643701 4 Washer Superseded
29 106850 4 Washer Superseded
30 129969 1 Pipe $28.97
31 128364 1 TDC sensor Superseded
32 128365 1 Black pipe Unavailable
33 119052 1 Angular speed sensor $214.39
34 126166 2 Coupling - After exhaustion use no. 133063 Unavailable
35 132355 2 Pin $83.58
36 118826 1 Cables, left spark plugs Superseded
37 118827 1 Cables, right spark plugs Superseded
38 119356 1 Cable coil right distributor $56.81
39 128166 1 Cable coil left distributor $81.67
40 121788 4 Small clip for cable support $15.37
40 121789 2 Small clip for cable support Unavailable
40 121790 2 Small clip for cable support $11.57
41 130965 8 Spark plug (BOSCH) In alternative Superseded
41 124274 8 Spark plug (CHAMPION) After exhausiton use no. 131922 Superseded
41 131121 8 Spark plug (CHAMPION) In alternative Unavailable
42 126699 8 Extension $30.00
42 138261 8 Extension - For US and CH Unavailable
43 10902321 2 Screw Superseded
44 11197771 2 Washer Superseded
45 61916900 1 25 way connector Unavailable
46 122970 2 Cover $35.63
47 129620 2 Cover protection Unavailable
48 129544 1 Clamp - From car no. 63027 $2.23

* Quantity shown indicates the number of pieces used in the diagram.
