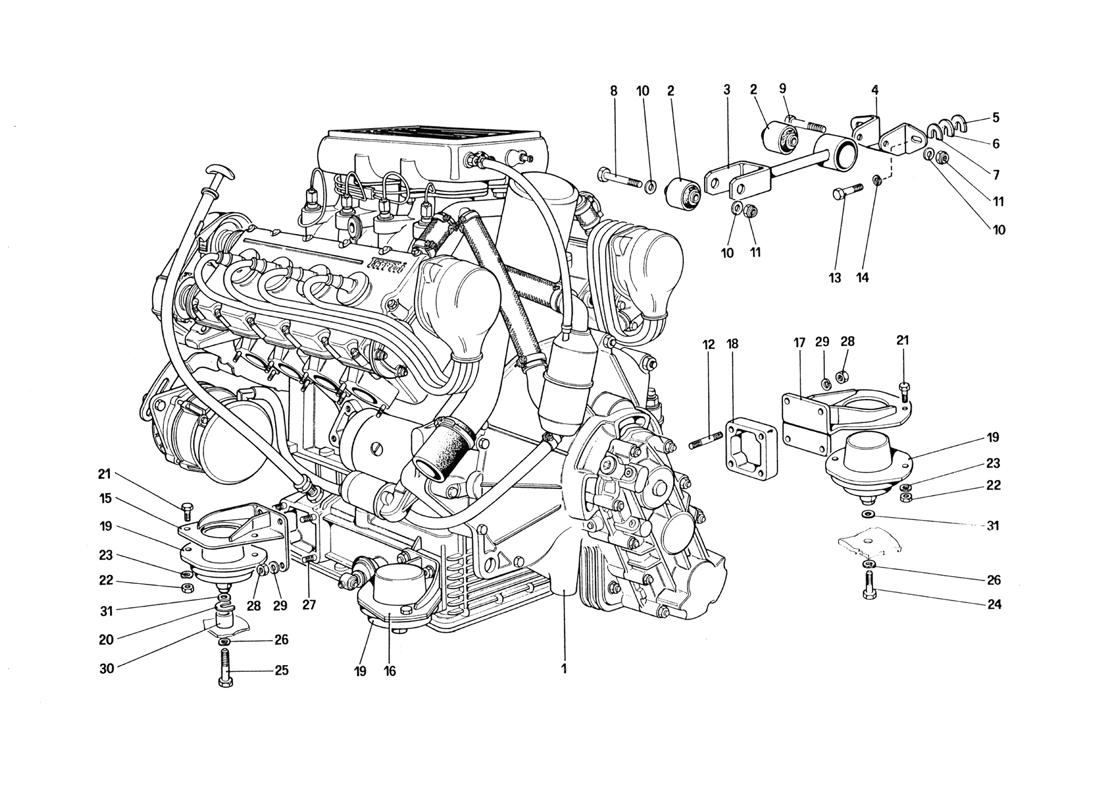

ENGINE - GEARBOX AND SUPPORTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: - *Qty: 1 Propelling unit with gearbox and differential
See table A for spare assembly units
Call
Location: 2 Prev | Next Part: 106418 *Qty: 2 Buffer for link
$80.28
Location: 3 Prev | Next Part: 117973 *Qty: 1 Reaction tie rod
$81.50
Location: 4 Prev | Next Part: 106469 *Qty: 1 Tie rod support
$16.29
Location: 5 Prev | Next Part: 106470 *Qty: 1 Shim 1 mm.
Possible mounting
$9.84
Location: 6 Prev | Next Part: 106471 *Qty: 1 Shim 2 mm.
Possible mounting
$10.77
Location: 7 Prev | Next Part: 106472 *Qty: 2 Shim
$12.64
Location: 8 Prev | Next Part: 15541321 *Qty: 1 Bolt
$1.34
Location: 9 Prev | Next Part: 15541321 *Qty: 1 Bolt
$1.34
Location: 10 Prev | Next Part: 13550521 *Qty: 2 Washer
$0.90
Location: 11 Prev | Next Part: 16105111 *Qty: 2 Nut
Superseded
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Rear nut
$0.90
Location: 13 Prev | Next Part: 13830521 *Qty: 2 Bolt
$0.91
Location: 14 Prev | Next Part: 12638621 *Qty: 2 Washer
$0.90
Location: 15 Prev | Next Part: 107528 *Qty: 1 Rear right support
$67.92
Location: 15 Prev | Next Part: 107529 *Qty: 1 Front right support
$77.42
Location: 16 Prev | Next Part: 115712 *Qty: 1 Front left support
$98.03
Location: 17 Prev | Next Part: 115713 *Qty: 1 Rear left support
$98.03
Location: 18 Prev | Next Part: 107530 *Qty: 2 Spacer for rear supports
$256.38
Location: 19 Prev | Next Part: 106034 *Qty: 4 VIBRACHOC front pad
Superseded
Location: 20 Prev | Next Part: 106029 *Qty: 4 Shim
Possible mounting
$7.32
Location: 21 Prev | Next Part: 16043421 *Qty: 8 Bolt
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
