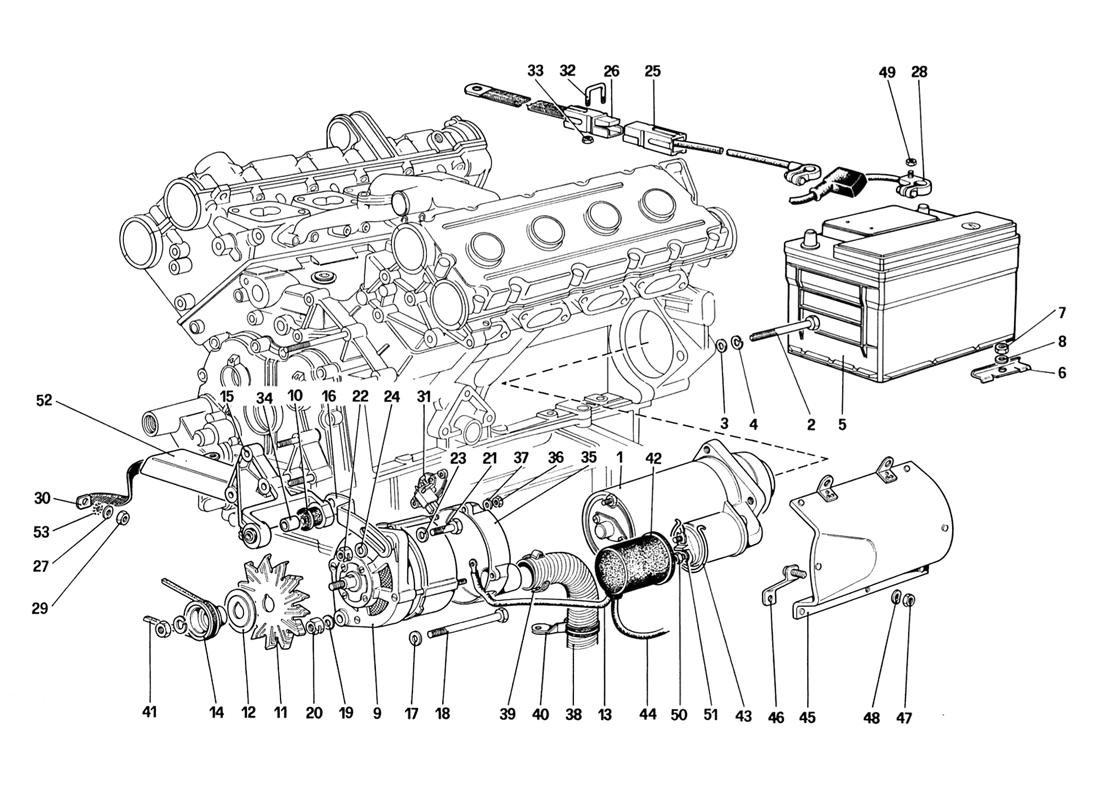

ELECTRIC GENERATING SYSTEM

Go to Split View

ELECTRIC GENERATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120967 *Qty: 1 Starter motor (BOSCH) $2,022.79
Location: 2 Prev | Next Part: 16045121 *Qty: 3 Fixing bolt $5.44
Location: 4 Prev | Next Part: 10519621 *Qty: 3 Washer $0.90
Location: 5 Prev | Next Part: 118060 *Qty: 1 Battery 1 2V 66AH 300A - In alternative use no. 61933900 Superseded
Location: 6 Prev | Next Part: 106525 *Qty: 1 Bracket $67.00
Location: 7 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 9 Prev | Next Part: 121761 *Qty: 1 Alternator BOSCH 85A $2,029.17
Location: 10 Prev | Next Part: 117969 *Qty: 2 Elastic bush Call
Location: 11 Prev | Next Part: 118802 *Qty: 1 Fan $80.14
Location: 12 Prev | Next Part: 114305 *Qty: 1 Washer $2.72
Location: 13 Prev | Next Part: 121188 *Qty: 1 Generator connecting cables $259.24
Location: 14 Prev | Next Part: 123708 *Qty: 1 Pulley $446.01
Location: 15 Prev | Next Part: 124655 *Qty: 1 Support for alternator $383.73
Location: 16 Prev | Next Part: 117937 *Qty: 1 Plate for regulation $34.65
Location: 17 Prev | Next Part: 13550421 *Qty: 1 Washer $0.90
Location: 18 Prev | Next Part: 15972921 *Qty: 1 Bolt $3.85
Location: 19 Prev | Next Part: 12601471 *Qty: 1 Washer Superseded
Location: 20 Prev | Next Part: 117702 *Qty: 1 Nut Superseded
Location: 21 Prev | Next Part: 11343821 *Qty: 1 Screw $0.90
Location: 22 Prev | Next Part: 117702 *Qty: 1 Nut Superseded
Location: 23 Prev | Next Part: 13550421 *Qty: 1 Washer $0.90
Location: 24 Prev | Next Part: 105391 *Qty: 1 Washer $3.06
Location: 25 Prev | Next Part: 115660 *Qty: 1 Cable from battery to battery switch $168.59
Location: 26 Prev | Next Part: 115667 *Qty: 1 Copper braid from battery terminal to earth chassis Call
Location: 27 Prev | Next Part: 10615671 *Qty: 1 Washer $0.90
Location: 28 Prev | Next Part: 61804100 *Qty: 1 Cable from battery to starter motor $157.35
Location: 29 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 30 Prev | Next Part: 115668 *Qty: 1 Earth cable for engine Superseded
Location: 31 Prev | Next Part: 121840 *Qty: 1 Voltage regulator $202.05
Location: 32 Prev | Next Part: 116591 *Qty: 1 Fixing plate of cable for motor $9.51
Location: 33 Prev | Next Part: 12574011 *Qty: 2 Nut Superseded
Location: 34 Prev | Next Part: 124678 *Qty: 1 Nut $10.20
Location: 35 Prev | Next Part: 121837 *Qty: 1 Air conveyor $202.84
Location: 36 Prev | Next Part: 15896421 *Qty: 4 Nut $0.90
Location: 37 Prev | Next Part: 12601171 *Qty: 4 Washer Superseded
Location: 38 Prev | Next Part: 121190 *Qty: 1 Pipe $151.23
Location: 39 Prev | Next Part: 12180090 *Qty: 1 Clamp $0.90
Location: 40 Prev | Next Part: 121839 *Qty: 1 Clamp $19.25
Location: 41 Prev | Next Part: 123709 *Qty: 1 Alternator control belt - After exhaustion use no. 130493 Superseded
Location: 42 Prev | Next Part: 113990 *Qty: 1 Cover protection Call
Location: 43 Prev | Next Part: 14560287 *Qty: 1 Ring Superseded
Location: 44 Prev | Next Part: 61912600 *Qty: 1 Cable to starter motor from engine connector Call
Location: 45 Prev | Next Part: 107038 *Qty: 1 Shield panel - Not for US - CH and SA $301.19
Location: 46 Prev | Next Part: 107039 *Qty: 1 Bracket - Not for US- CH and SA $15.62
Location: 47 Prev | Next Part: 15896211 *Qty: 1 Nut - Not for US - CH and SA Superseded
Location: 48 Prev | Next Part: 12643701 *Qty: 1 Washer - Not for US - CH and SA Superseded
Location: 49 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 50 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 51 Prev | Next Part: 10516670 *Qty: 1 Washer $0.90
Location: 52 Prev | Next Part: 108304 *Qty: 1 Shield panel - For US - CH and SA Superseded
Location: 53 Prev | Next Part: 10615479 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
