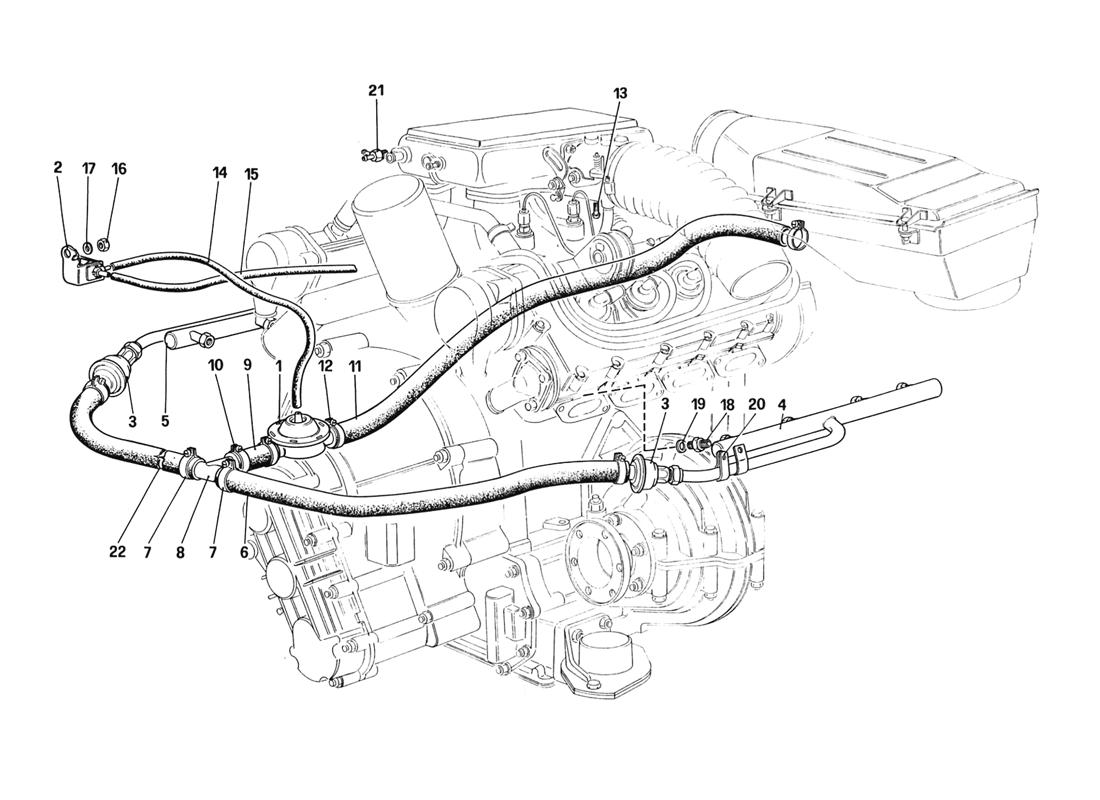

AIR INJECTION (FOR USA AND CH88 VERSION)

Go to Split View

AIR INJECTION (FOR USA AND CH88 VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121751 *Qty: 1 Cut-Off valve Superseded
Location: 2 Prev | Next Part: 129059 *Qty: 1 Solenoid valve Superseded
Location: 4 Prev | Next Part: 121808 *Qty: 1 Right manifold for air injection $622.58
Location: 5 Prev | Next Part: 121783 *Qty: 1 Left manifold for air injection $567.13
Location: 6 Prev | Next Part: 139175 *Qty: 1 Left pipe Call
Location: 7 Prev | Next Part: 12180290 *Qty: 4 Clip Call
Location: 8 Prev | Next Part: 109887 *Qty: 1 T union $304.79
Location: 9 Prev | Next Part: 116783 *Qty: 1 Sleeve $41.41
Location: 10 Prev | Next Part: 12180290 *Qty: 2 Clip Call
Location: 11 Prev | Next Part: 118231 *Qty: 1 Pipe Call
Location: 12 Prev | Next Part: 12180290 *Qty: 2 Clip Call
Location: 13 Prev | Next Part: 113637 *Qty: 1 Union - For US $3.06
Location: 14 Prev | Next Part: 118502 *Qty: 1 Pipe - Not for C8 Superseded
Location: 14 Prev | Next Part: 135959 *Qty: 1 Pipe - For C8 $8.83
Location: 15 Prev | Next Part: 117170 *Qty: 1 Pipe - Not for C8 Call
Location: 15 Prev | Next Part: 115147 *Qty: 1 Pipi - For C8 $5.32
Location: 16 Prev | Next Part: 16104111 *Qty: 1 Nut -Not for C8 Superseded
Location: 17 Prev | Next Part: 14496501 *Qty: 1 Washer - Not for C8 $0.90
Location: 18 Prev | Next Part: 121718 *Qty: 8 Union $40.70
Location: 19 Prev | Next Part: 10257060 *Qty: 8 Gasket $0.90
Location: 20 Prev | Next Part: 119811 *Qty: 2 Clamp $9.52
Location: 21 Prev | Next Part: 135951 *Qty: 1 Union - For C8 $20.15
Location: 22 Prev | Next Part: 139174 *Qty: 1 Right pipe Call

* Quantity shown indicates the number of pieces used in the diagram.
