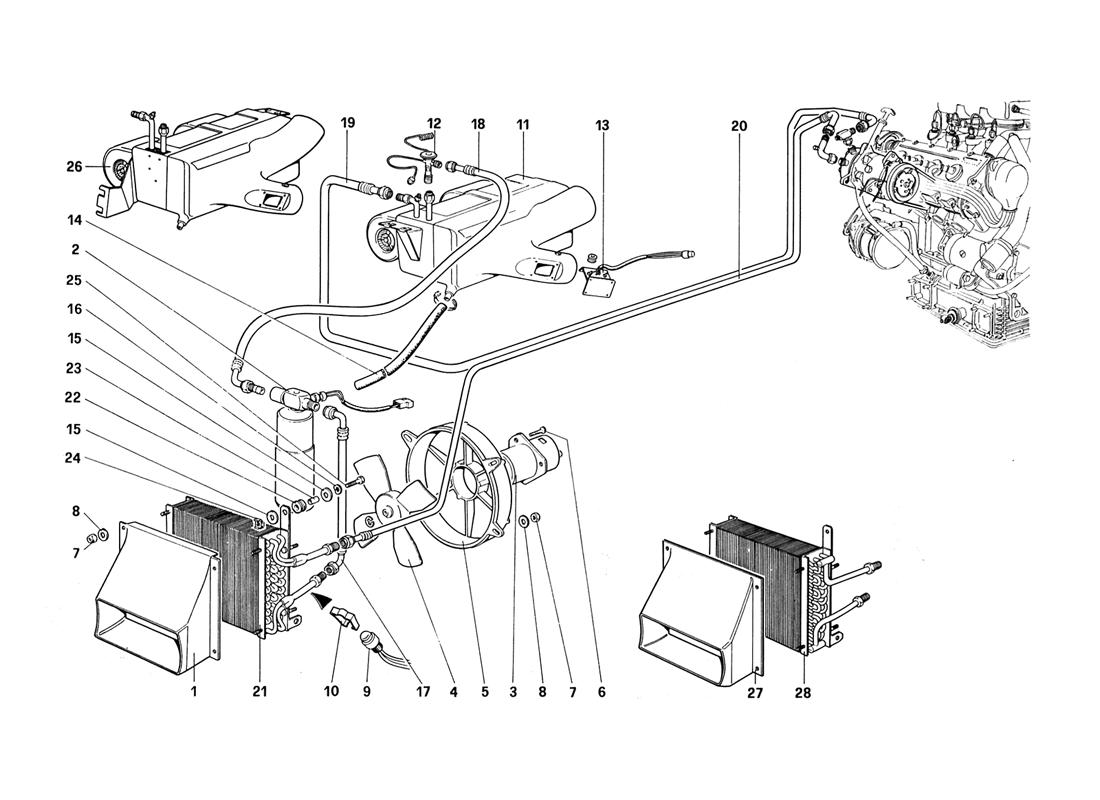

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61761000 *Qty: 1 Air inlet condenser
Until car no. 68461
$492.84
Location: 2 Prev | Next Part: 114730 *Qty: 1 Dryer filter, complete
PN. 129101 in alternative (Until exhausted)
Superseded
Location: 2 Prev | Next Part: 61989500 *Qty: 1 Dryer filter, complete
After exhaustion PN. 114730-129101
Superseded
Location: 3 Prev | Next Part: 129102 *Qty: 1 Pressostat
For dryer filter 129101 and 61989500
$83.08
Location: 3 Prev | Next Part: 123136 *Qty: 1 Electro-fan motor Superseded
Location: 4 Prev | Next Part: 62441100 *Qty: 1 Fan - From car 68463 $55.45
Location: 4 Prev | Next Part: 122953 *Qty: 1 Fan - Until car 68461 $56.75
Location: 5 Prev | Next Part: 60870300 *Qty: 1 Conveyor - Until car 68461 Call
Location: 5 Prev | Next Part: 62441200 *Qty: 1 Conveyor - From car 68463 $101.66
Location: 6 Prev | Next Part: 123298 *Qty: 8 Screw $0.90
Location: 7 Prev | Next Part: 12574211 *Qty: 8 Nut Superseded
Location: 8 Prev | Next Part: 12644401 *Qty: 8 Washer Superseded
Location: 9 Prev | Next Part: 61047900 *Qty: 1 Bimetallic termoswitch $232.75
Location: 10 Prev | Next Part: 61942400 *Qty: 1 Clip $10.87
Location: 11 Prev | Next Part: 61830500 *Qty: 1 Evaporator unit LHD
Until car no. 64651
Superseded
Location: 11 Prev | Next Part: 61859600 *Qty: 1 Evaporator unit RHD
Until car no. 64651
Call
Location: 12 Prev | Next Part: 61742600 *Qty: 1 Expansion valve Call
Location: 13 Prev | Next Part: 126856 *Qty: 1 Power transistor Call
Location: 14 Prev | Next Part: 40166506 *Qty: 6 Condensate drain pipe Call
Location: 15 Prev | Next Part: 12643701 *Qty: 6 Washer Superseded
Location: 16 Prev | Next Part: 106850 *Qty: 3 Washer Superseded
Location: 17 Prev | Next Part: 61798100 *Qty: 1 Hose from condenser to dryer filter $305.66
Location: 18 Prev | Next Part: 61914100 *Qty: 1 (V) Hose dryer filter-evaporator RHD $127.02
Location: 18 Prev | Next Part: 62565600 *Qty: 1 (N) Hose dryer filter-evaporator RHD $129.74
Location: 18 Prev | Next Part: 114733 *Qty: 1 Hose dryer filter-evaporator LHD $134.47
Location: 19 Prev | Next Part: 109868 *Qty: 1 Hose evaporator - compressor US Superseded
Location: 19 Prev | Next Part: 61914200 *Qty: 1 (V) Hose evaporator-compressor RHD
Not for AUS
$345.26
Location: 19 Prev | Next Part: 62565700 *Qty: 1 (N) Hose evaporator-compressor RHD
Not for AUS
$278.47
Location: 19 Prev | Next Part: 112119 *Qty: 1 Hose evaporator-compressor AUS $314.69
Location: 19 Prev | Next Part: 110964 *Qty: 1 Hose evaporator-compressor
Not for US -RHD
$198.99
Location: 20 Prev | Next Part: 106695 *Qty: 1 Hose compressor-condenser Call
Location: 21 Prev | Next Part: 61739200 *Qty: 1 Condenser - Until car no. 68461 Call
Location: 22 Prev | Next Part: 103549 *Qty: 3 Bushing $1.57
Location: 23 Prev | Next Part: 103550 *Qty: 3 Spacer $2.47
Location: 24 Prev | Next Part: 60659100 *Qty: 3 Nut Superseded
Location: 25 Prev | Next Part: 10902521 *Qty: 3 Screw $0.90
Location: 26 Prev | Next Part: 61931600 *Qty: 1 Evaporator unit LHD
From car no. 64653
Call
Location: 26 Prev | Next Part: 61929300 *Qty: 1 Evaporator unit RHD
From car no. 64653
$1,675.33
Location: 27 Prev | Next Part: 61975500 *Qty: 1 Air inlet for condenser
From car no. 68463
Call
Location: 28 Prev | Next Part: 61952100 *Qty: 1 Condenser
From car no. 68463
Call

* Quantity shown indicates the number of pieces used in the diagram.
