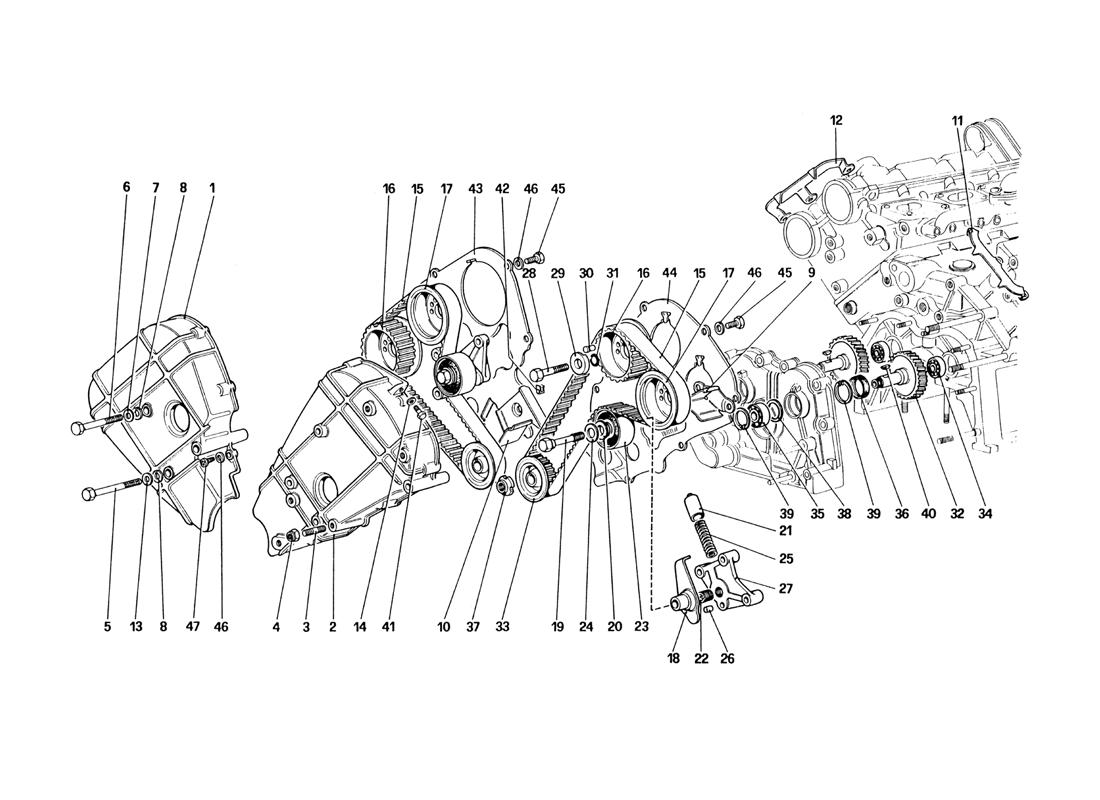

TIMING SYSTEM - CONTROLS

Go to Split View

TIMING SYSTEM - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121653 *Qty: 1 Right cover $204.87
Location: 1 Prev | Next Part: 117438 *Qty: 1 Left cover, complete $387.14
Location: 2 Prev | Next Part: 124681 *Qty: 1 Left cover, complete $459.59
Location: 2 Prev | Next Part: 123697 *Qty: 1 Left cover
With assembly no. 117438 - For U.S. Version
Superseded
Location: 3 Prev | Next Part: 13546221 *Qty: 1 Stud Superseded
Location: 4 Prev | Next Part: 13598021 *Qty: 1 Nut $4.51
Location: 5 Prev | Next Part: 121660 *Qty: 2 Screw $68.05
Location: 6 Prev | Next Part: 109013 *Qty: 1 Screw $64.42
Location: 7 Prev | Next Part: 12638601 *Qty: 2 Washer $0.90
Location: 8 Prev | Next Part: 106853 *Qty: 3 Washer Superseded
Location: 9 Prev | Next Part: 125115 *Qty: 1 Protection left belt
Not for U.S. Version
$101.42
Location: 10 Prev | Next Part: 125114 *Qty: 1 Protection right belt
Not for U.S. Version
$101.42
Location: 11 Prev | Next Part: 125110 *Qty: 1 Timing reference plate left cylinder head $16.27
Location: 12 Prev | Next Part: 125109 *Qty: 1 Timing reference plate right cylinder head $16.27
Location: 13 Prev | Next Part: 105391 *Qty: 1 Washer $3.06
Location: 14 Prev | Next Part: 12601271 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 111334 *Qty: 2 Timing belt $17.57
Location: 16 Prev | Next Part: 126569 *Qty: 2 Driver gear $359.97
Location: 17 Prev | Next Part: 126568 *Qty: 2 Driver gear $359.97
Location: 18 Prev | Next Part: 117256 *Qty: 2 Belt stretcher plate $404.97
Location: 19 Prev | Next Part: 111458 *Qty: 2 Screw $52.59
Location: 20 Prev | Next Part: 111460 *Qty: 2 Spacer Call
Location: 21 Prev | Next Part: 102819 *Qty: 2 Pin $119.70
Location: 22 Prev | Next Part: 13524670 *Qty: 2 Heli coil $0.97
Location: 23 Prev | Next Part: 126720 *Qty: 2 Belt idler ring Superseded
Location: 24 Prev | Next Part: 102824 *Qty: 2 Washer $4.45
Location: 25 Prev | Next Part: 104148 *Qty: 2 Spring $39.75
Location: 26 Prev | Next Part: 10839610 *Qty: 2 Dowel pin Superseded
Location: 27 Prev | Next Part: 118153 *Qty: 1 Support for left belt stretcher Call
Location: 27 Prev | Next Part: 118152 *Qty: 1 Support for right belt stretcher $233.72
Location: 28 Prev | Next Part: 16326431 *Qty: 4 Screw Call
Location: 29 Prev | Next Part: 117274 *Qty: 4 Washer $4.23
Location: 30 Prev | Next Part: 106203 *Qty: 4 Dowel pin $8.60
Location: 31 Prev | Next Part: 114808 *Qty: 4 Sealing ring $5.50
Location: 32 Prev | Next Part: 121272 *Qty: 2 Drive gear for camshaft $372.10
Location: 33 Prev | Next Part: 121273 *Qty: 2 Driving pulley $370.81
Location: 34 Prev | Next Part: 121275 *Qty: 2 Bearing of crankcase $8.22
Location: 35 Prev | Next Part: 121274 *Qty: 2 Bearing on front cover $146.46
Location: 36 Prev | Next Part: 121276 *Qty: 2 Oil retaining $18.83
Location: 37 Prev | Next Part: 104919 *Qty: 2 Ring nut $5.85
Location: 38 Prev | Next Part: 121279 *Qty: 2 Washer $21.36
Location: 39 Prev | Next Part: 121277 *Qty: 4 Seeger $0.90
Location: 40 Prev | Next Part: 10206320 *Qty: 2 Tongue $1.90
Location: 41 Prev | Next Part: 10902011 *Qty: 1 Screw $8.96
Location: 42 Prev | Next Part: 60793500 *Qty: 1 Spring clip
For U.S. Version
$0.99
Location: 43 Prev | Next Part: 117628 *Qty: 1 Protection right belt
For U.S. Version
$292.92
Location: 44 Prev | Next Part: 117627 *Qty: 1 Protection left belt
For U.S. Version
$292.92
Location: 45 Prev | Next Part: 10977711 *Qty: 12 Screw
For U.S. Version
Superseded
Location: 46 Prev | Next Part: 12601171 *Qty: 13 Washer
For U.S. Version
Superseded
Location: 47 Prev | Next Part: 15688502 *Qty: 1 Screw
For U.S. Version
$1.30

* Quantity shown indicates the number of pieces used in the diagram.
