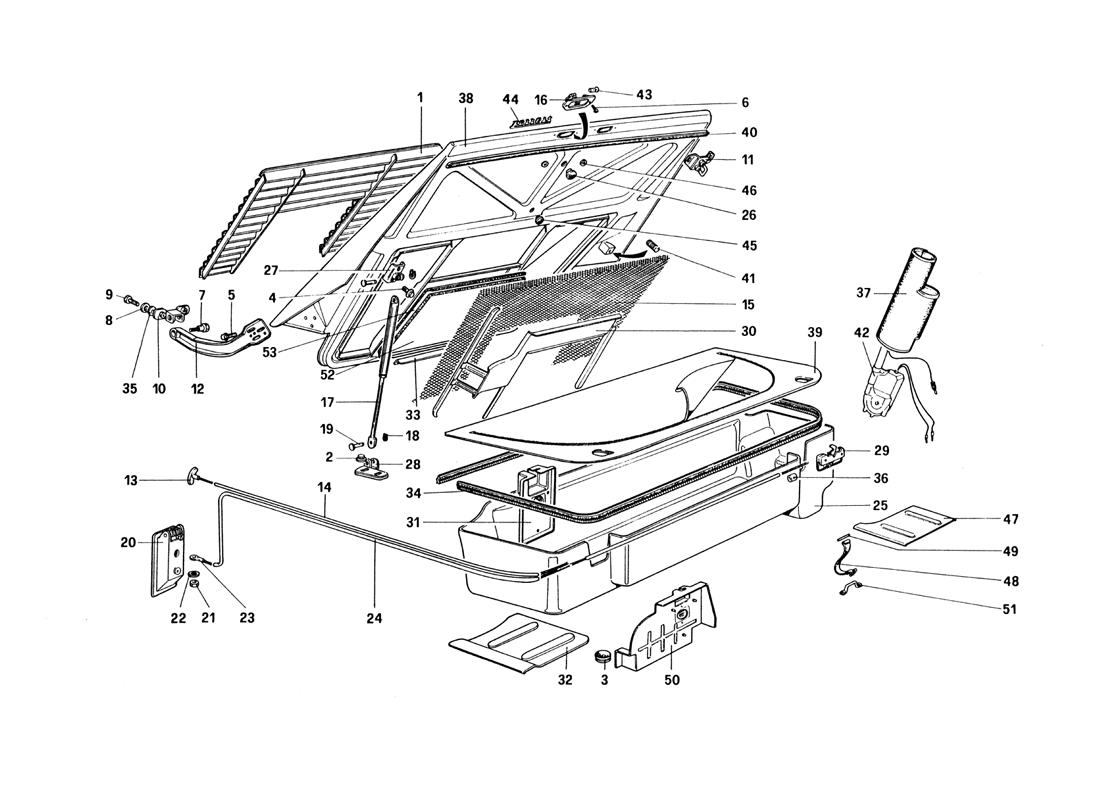

REAR BONNET AND LUGGAGE COMPARTMENT COVERING

Go to Split View

REAR BONNET AND LUGGAGE COMPARTMENT COVERING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60427408 *Qty: 1 Grille
After exhaustion use PN 61896300
Superseded
Location: 2 Prev | Next Part: 13832101 *Qty: 4 Nut $0.90
Location: 3 Prev | Next Part: 14507187 *Qty: 4 Plug
For SA and U.S. Version
$9.46
Location: 3 Prev | Next Part: 108585 *Qty: 2 Plug
Not for SA and U.S. Version
$1.68
Location: 4 Prev | Next Part: 13835871 *Qty: 4 Screw $1.94
Location: 5 Prev | Next Part: 13838971 *Qty: 6 Screw Superseded
Location: 6 Prev | Next Part: 20297800 *Qty: 4 Screw $0.97
Location: 7 Prev | Next Part: 60017506 *Qty: 2 Pin $9.34
Location: 8 Prev | Next Part: 12646701 *Qty: 4 Washer Superseded
Location: 9 Prev | Next Part: 16043321 *Qty: 4 Screw $0.90
Location: 10 Prev | Next Part: 60257706 *Qty: 1 R.H. fixed hinge $42.72
Location: 10 Prev | Next Part: 60257805 *Qty: 1 L.H. fixed hinge $42.72
Location: 11 Prev | Next Part: 60560100 *Qty: 1 Pin Call
Location: 12 Prev | Next Part: 60256807 *Qty: 1 R.H. mobile hinge $41.51
Location: 12 Prev | Next Part: 60256906 *Qty: 1 L.H. mobile hinge $46.06
Location: 13 Prev | Next Part: 60510500 *Qty: 1 Safety cable Call
Location: 14 Prev | Next Part: 60024502 *Qty: 1 Sheath, safety cable Call
Location: 15 Prev | Next Part: 60434602 *Qty: 1 Net under the grille Call
Location: 16 Prev | Next Part: 60044906 *Qty: 2 Number plate lights Superseded
Location: 17 Prev | Next Part: 60592800 *Qty: 2 Support $60.37
Location: 18 Prev | Next Part: 11087876 *Qty: 4 Seeger $0.90
Location: 19 Prev | Next Part: 60599500 *Qty: 4 Pin $18.25
Location: 20 Prev | Next Part: 60086105 *Qty: 1 Bonnet handle Superseded
Location: 21 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 22 Prev | Next Part: 10615371 *Qty: 1 Washer $0.90
Location: 23 Prev | Next Part: 60277001 *Qty: 1 Cable $43.64
Location: 24 Prev | Next Part: 60191509 *Qty: 1 Sheath bonnet cable L.H.D. $50.83
Location: 24 Prev | Next Part: 60024601 *Qty: 1 Sheath bonnet cable R.H. D. Call
Location: 25 Prev | Next Part: 61814800 *Qty: 1 Central carpet
For SA and U.S. Version
$404.61
Location: 25 Prev | Next Part: 61813100 *Qty: 1 Carpet
Not for SA and U.S. Version
$421.66
Location: 26 Prev | Next Part: 40134108 *Qty: 1 Plug $3.73
Location: 27 Prev | Next Part: 60597800 *Qty: 1 L.H. bracket Call
Location: 27 Prev | Next Part: 60597700 *Qty: 1 R.H. bracket $160.39
Location: 28 Prev | Next Part: 60598000 *Qty: 1 L.H. bracket $30.59
Location: 28 Prev | Next Part: 60597900 *Qty: 1 R.H. bracket $26.62
Location: 29 Prev | Next Part: 60277407 *Qty: 2 Lock Call
Location: 30 Prev | Next Part: 60753800 *Qty: 1 Water shield panel $991.08
Location: 31 Prev | Next Part: 61927700 *Qty: 2 Shield, complete - R.H.D. Superseded
Location: 31 Prev | Next Part: 61903700 *Qty: 2 Shield, complete - L.H.D.
Not for SA and U.S. Version
$163.67
Location: 32 Prev | Next Part: 61815000 *Qty: 1 L.H. carpet
For SA and U.S. Version
Call
Location: 32 Prev | Next Part: 61813200 *Qty: 1 L.H. carpet
Not for SA and U.S. Version
Call
Location: 33 Prev | Next Part: 60218906 *Qty: 1 Drip $32.21
Location: 34 Prev | Next Part: 60286200 *Qty: 1 Gasket Superseded
Location: 35 Prev | Next Part: 10615671 *Qty: 4 Washer $0.90
Location: 36 Prev | Next Part: 60276607 *Qty: 2 Clamp $42.87
Location: 37 Prev | Next Part: 61903600 *Qty: 1 Protection $144.41
Location: 38 Prev | Next Part: 60525400 *Qty: 1 Bonnet - without spoiler seat
Not for SA and U.S. Version
$8,014.80
Location: 38 Prev | Next Part: 61024000 *Qty: 1 Bonnet - with spoiler side Superseded
Location: 39 Prev | Next Part: 60114808 *Qty: 1 Trunk covering Call
Location: 40 Prev | Next Part: 60564600 *Qty: 1 Gasket Call
Location: 41 Prev | Next Part: 60510000 *Qty: 2 Rubber piece Call
Location: 42 Prev | Next Part: 61717900 *Qty: 1 Radio aerial
After exhaustion use PN. 61897500
Superseded
Location: 43 Prev | Next Part: 101524 *Qty: 2 Lamp
Not for U.S. Version
Superseded
Location: 43 Prev | Next Part: 14145990 *Qty: 2 Lamp
For U.S. Version
Call
Location: 44 Prev | Next Part: 61025000 *Qty: 1 Ferrari name $74.99
Location: 45 Prev | Next Part: 112926 *Qty: 1 Plug $0.90
Location: 46 Prev | Next Part: 60324506 *Qty: 3 Clip Superseded
Location: 47 Prev | Next Part: 61814900 *Qty: 1 R.H. carpet
For SA and U.S. Version
$81.01
Location: 48 Prev | Next Part: 20171005 *Qty: 1 Belt
For SA and U.S. Version
$46.23
Location: 49 Prev | Next Part: 20103107 *Qty: 1 Pin
For SA and U.S. Version
$3.11
Location: 50 Prev | Next Part: 61904000 *Qty: 1 R.H. plate
For SA and U.S. Version
$209.43
Location: 50 Prev | Next Part: 61904100 *Qty: 1 L.H. plate
For SA and U.S. Version
$209.43
Location: 51 Prev | Next Part: 30029904 *Qty: 1 Bracket
For SA and U.S. Version
Call
Location: 52 Prev | Next Part: 61940100 *Qty: 1 Insulation
For CH
$45.07
Location: 53 Prev | Next Part: 61940200 *Qty: 1 Insulation
For CH
$45.07

* Quantity shown indicates the number of pieces used in the diagram.
