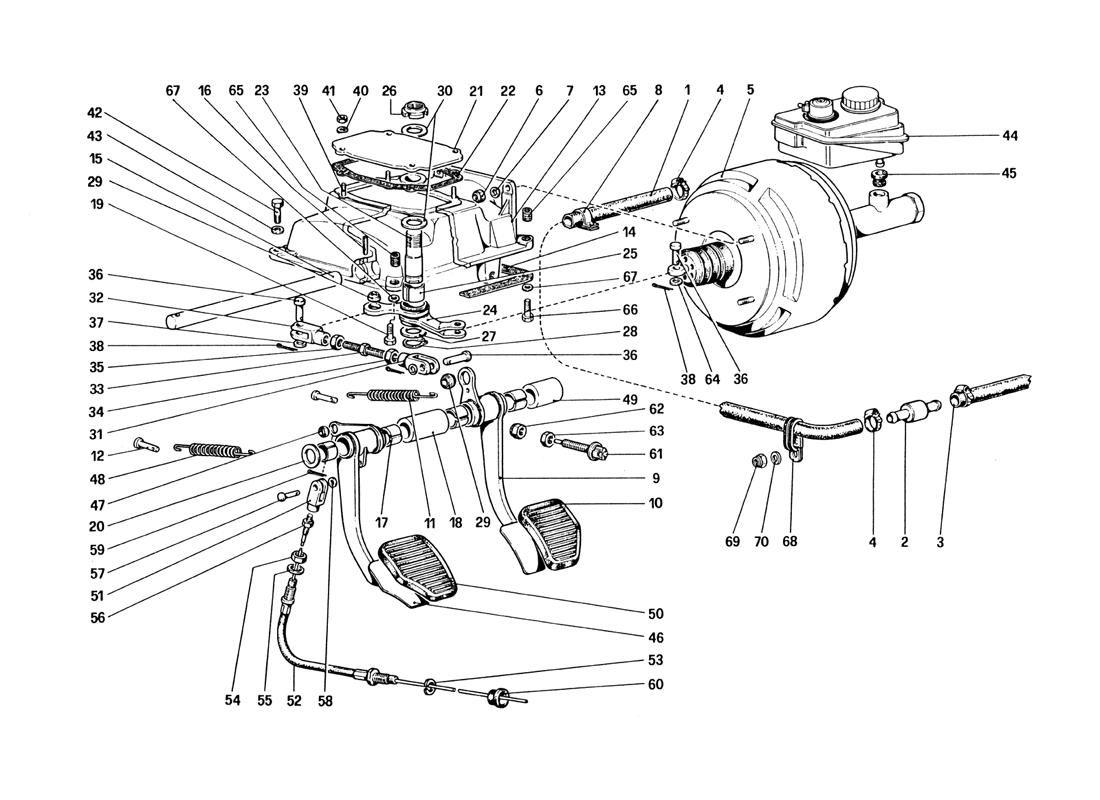

PEDAL BOARD - BRAKE AND CLUTCH CONTROLS

Go to Split View

PEDAL BOARD - BRAKE AND CLUTCH CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120233 *Qty: 1 Pipe, vacuum servo to check valve
For RHD use no. 129230
Call
Location: 2 Prev | Next Part: 101538 *Qty: 1 Check valve
After exhaustion use no. 128435
Superseded
Location: 3 Prev | Next Part: 107982 *Qty: 1 Pipe, check valve to manifold Call
Location: 4 Prev | Next Part: 12179590 *Qty: 4 Strap Superseded
Location: 5 Prev | Next Part: 124514 *Qty: 1 Vacuum servo Superseded
Location: 6 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 7 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 8 Prev | Next Part: 10418901 *Qty: 1 Strap $1.01
Location: 9 Prev | Next Part: 108533 *Qty: 1 Brake pedal $614.65
Location: 10 Prev | Next Part: 106950 *Qty: 1 Cover for brake pedal $31.47
Location: 11 Prev | Next Part: 104895 *Qty: 1 Return spring for brake pedal $9.15
Location: 12 Prev | Next Part: 108022 *Qty: 2 Pedals support, complete $2,309.23
Location: 12 Prev | Next Part: 104896 *Qty: 2 Pin $36.21
Location: 13 Prev | Next Part: 106187 *Qty: 1 Pedals support
With assembly no. 108022
Superseded
Location: 14 Prev | Next Part: 104899 *Qty: 1 Gasket Call
Location: 15 Prev | Next Part: 104900 *Qty: 1 Pin $138.34
Location: 16 Prev | Next Part: 104901 *Qty: 1 Pin $2.29
Location: 17 Prev | Next Part: 103163 *Qty: 4 Bushing $3.81
Location: 18 Prev | Next Part: 104902 *Qty: 1 Spacer $42.56
Location: 19 Prev | Next Part: 16043621 *Qty: 1 Screw, fixing pedals $0.90
Location: 20 Prev | Next Part: 106083 *Qty: 1 Washer $0.90
Location: 21 Prev | Next Part: 104904 *Qty: 1 Cover $10.20
Location: 22 Prev | Next Part: 104905 *Qty: 1 Gasket $10.87
Location: 23 Prev | Next Part: 106081 *Qty: 1 Pin $60.90
Location: 24 Prev | Next Part: 108313 *Qty: 1 Vacuum servo lever $86.71
Location: 25 Prev | Next Part: 100787 *Qty: 1 Bushing $6.69
Location: 26 Prev | Next Part: 106082 *Qty: 1 Ring nut Call
Location: 27 Prev | Next Part: 108382 *Qty: 1 Spacer $11.08
Location: 28 Prev | Next Part: 11066875 *Qty: 1 Seeger ring Superseded
Location: 29 Prev | Next Part: 100424 *Qty: 2 Ball joint Call
Location: 30 Prev | Next Part: 106084 *Qty: 2 Washer $7.69
Location: 31 Prev | Next Part: 104910 *Qty: 1 Fork (L.H. thread) $10.53
Location: 32 Prev | Next Part: 104911 *Qty: 1 Fork $25.81
Location: 33 Prev | Next Part: 104912 *Qty: 1 Adjusting screw $24.45
Location: 34 Prev | Next Part: 11690911 *Qty: 1 Nut (L.H. thread) $4.32
Location: 35 Prev | Next Part: 10788711 *Qty: 1 Nut (R.H. thread) $1.52
Location: 36 Prev | Next Part: 10033411 *Qty: 3 Pin Superseded
Location: 37 Prev | Next Part: 103167 *Qty: 2 Washer $4.92
Location: 38 Prev | Next Part: 10796301 *Qty: 3 Split pin $0.90
Location: 39 Prev | Next Part: 11500021 *Qty: 4 Stud Superseded
Location: 40 Prev | Next Part: 12601271 *Qty: 4 Corrugated washer Superseded
Location: 41 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 42 Prev | Next Part: 16139021 *Qty: 2 Bolt $2.96
Location: 43 Prev | Next Part: 12601471 *Qty: 2 Corrugated washer Superseded
Location: 44 Prev | Next Part: 119566 *Qty: 1 Brake fluid reservoir Superseded
Location: 45 Prev | Next Part: 106625 *Qty: 2 Sealing ring Superseded
Location: 46 Prev | Next Part: 116324 *Qty: 1 Clutch pedal $294.32
Location: 47 Prev | Next Part: 100423 *Qty: 1 Ball joint $26.72
Location: 48 Prev | Next Part: 117374 *Qty: 1 Return spring for clutch pedal $10.65
Location: 49 Prev | Next Part: 104903 *Qty: 1 Spacer $48.22
Location: 50 Prev | Next Part: 106949 *Qty: 1 Cover for pedal $11.10
Location: 51 Prev | Next Part: 108575 *Qty: 1 Fork $79.37
Location: 52 Prev | Next Part: 106745 *Qty: 1 Clutch control cable $55.73
Location: 53 Prev | Next Part: 12601671 *Qty: 1 Spring washer $0.90
Location: 54 Prev | Next Part: 16103611 *Qty: 1 Nut $0.90
Location: 55 Prev | Next Part: 12601571 *Qty: 1 Spring washer $0.90
Location: 56 Prev | Next Part: 100861 *Qty: 1 Lock nut $0.90
Location: 57 Prev | Next Part: 103218 *Qty: 1 Pin $37.09
Location: 58 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 59 Prev | Next Part: 10734201 *Qty: 1 Split pin Call
Location: 60 Prev | Next Part: 105369 *Qty: 3 Fair lead $1.76
Location: 61 Prev | Next Part: 101663 *Qty: 1 Switch for stop lights $53.95
Location: 62 Prev | Next Part: 101662 *Qty: 1 Nut $3.63
Location: 63 Prev | Next Part: 10791211 *Qty: 1 Nut $0.90
Location: 64 Prev | Next Part: 10730521 *Qty: 1 Washer $2.92
Location: 65 Prev | Next Part: 106188 *Qty: 2 Threaded bushing $40.13
Location: 66 Prev | Next Part: 10644321 *Qty: 1 Screw, fixing pedals Call
Location: 67 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 68 Prev | Next Part: 61712600 *Qty: 1 Strap $2.09
Location: 69 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 70 Prev | Next Part: 14496401 *Qty: 1 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
