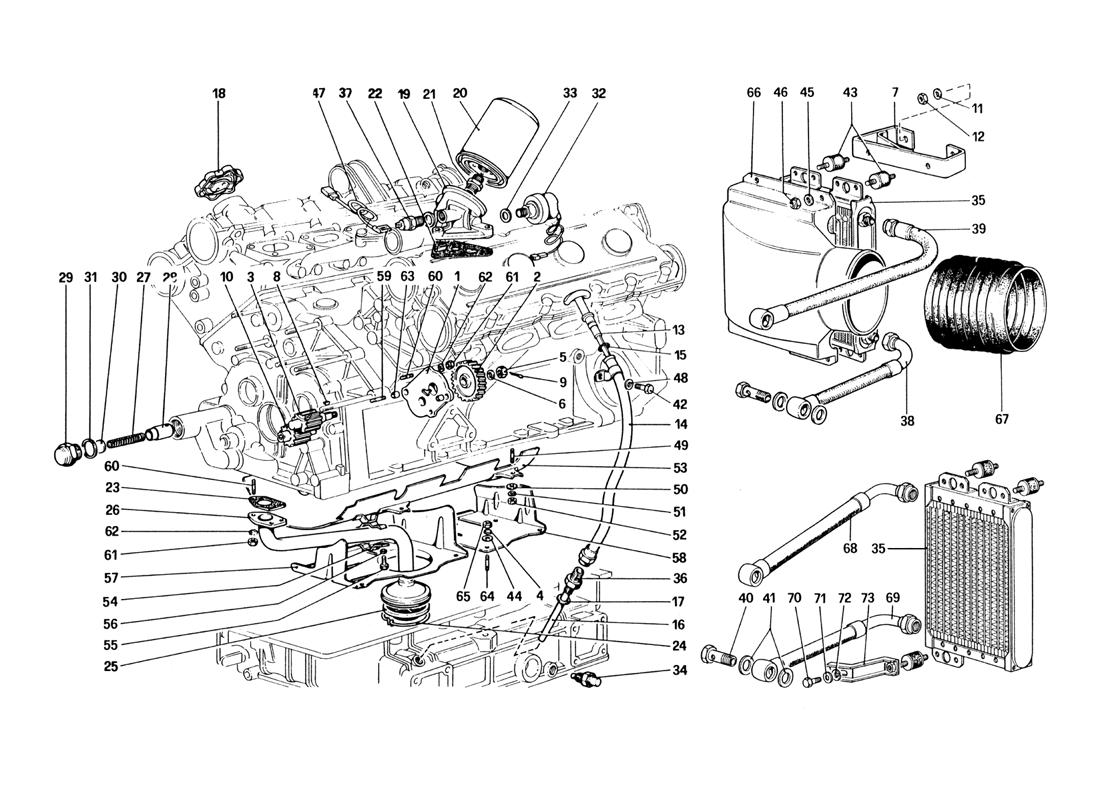

LUBRICATION SYSTEM

Go to Split View

LUBRICATION SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109300 *Qty: 1 Cover for oil pump $207.79
Location: 2 Prev | Next Part: 117659 *Qty: 1 Control gear $615.06
Location: 4 Prev | Next Part: 106849 *Qty: 8 Spring washer Superseded
Location: 5 Prev | Next Part: 102900 *Qty: 1 Nut $9.99
Location: 6 Prev | Next Part: 11198570 *Qty: 1 Washer $0.90
Location: 7 Prev | Next Part: 114735 *Qty: 1 Radiator support
Not for U.S. Version
$52.30
Location: 8 Prev | Next Part: 10205620 *Qty: 1 Tongue $0.90
Location: 9 Prev | Next Part: 10734301 *Qty: 1 Split pin $0.90
Location: 10 Prev | Next Part: 109308 *Qty: 1 Driven gear Call
Location: 11 Prev | Next Part: 14496501 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 16104111 *Qty: 2 Nut Superseded
Location: 13 Prev | Next Part: 105657 *Qty: 1 OiUevel rod Call
Location: 14 Prev | Next Part: 120001 *Qty: 1 Hose for level rod $168.56
Location: 15 Prev | Next Part: 100317 *Qty: 1 Sealing ring $1.51
Location: 16 Prev | Next Part: 107868 *Qty: 1 Pijie Call
Location: 17 Prev | Next Part: 10259960 *Qty: 1 Gasket $0.90
Location: 18 Prev | Next Part: 103936 *Qty: 1 Cap $126.73
Location: 19 Prev | Next Part: 123863 *Qty: 1 Filter base $239.31
Location: 20 Prev | Next Part: 111782 *Qty: 1 Oil cartridge Superseded
Location: 21 Prev | Next Part: 121246 *Qty: 1 Union $124.51
Location: 22 Prev | Next Part: 123868 *Qty: 1 Gasket Call
Location: 23 Prev | Next Part: 103942 *Qty: 1 Gasket Superseded
Location: 24 Prev | Next Part: 103944 *Qty: 1 Sealing ring $132.17
Location: 25 Prev | Next Part: 100332 *Qty: 1 Filter $14.85
Location: 26 Prev | Next Part: 105998 *Qty: 1 Suction pipe Call
Location: 27 Prev | Next Part: 106900 *Qty: 1 Spring for pressure adjusting valve $4.55
Location: 28 Prev | Next Part: 125885 *Qty: 1 Piston $170.74
Location: 29 Prev | Next Part: 106237 *Qty: 1 Plug $72.10
Location: 30 Prev | Next Part: 106238 *Qty: 1 Spacer $1.94
Location: 31 Prev | Next Part: 10264660 *Qty: 1 Gasket $6.08
Location: 32 Prev | Next Part: 122592 *Qty: 1 Transmitter $179.60
Location: 33 Prev | Next Part: 10259960 *Qty: 1 Gasket $0.90
Location: 34 Prev | Next Part: 107576 *Qty: 1 Thermistor $139.53
Location: 36 Prev | Next Part: 112668 *Qty: 1 Union Call
Location: 36 Prev | Next Part: 126917 *Qty: 1 Oil radiator Superseded
Location: 37 Prev | Next Part: 110664 *Qty: 1 Switch for oil pressure warning light $125.50
Location: 38 Prev | Next Part: 126912 *Qty: 1 Hose from cooler to crankcase
Not for U.S. Version
Superseded
Location: 39 Prev | Next Part: 126913 *Qty: 1 Hose from cooler to filter support
Not for U.S. Version
Superseded
Location: 40 Prev | Next Part: 123881 *Qty: 2 Union $32.45
Location: 41 Prev | Next Part: 10246160 *Qty: 4 Gasket $1.13
Location: 42 Prev | Next Part: 10902011 *Qty: 1 Screw $9.24
Location: 43 Prev | Next Part: 102947 *Qty: 3 Vibration Damping Support $18.79
Location: 44 Prev | Next Part: 12638101 *Qty: 8 Washer Superseded
Location: 45 Prev | Next Part: 14494601 *Qty: 3 Washer Call
Location: 46 Prev | Next Part: 12575411 *Qty: 3 Nut Superseded
Location: 47 Prev | Next Part: 112388 *Qty: 1 Switch Cable $5.37
Location: 48 Prev | Next Part: 12601271 *Qty: 1 Washer Superseded
Location: 49 Prev | Next Part: 13516521 *Qty: 4 Stud on crankcase $1.17
Location: 50 Prev | Next Part: 10519601 *Qty: 4 Washer Superseded
Location: 51 Prev | Next Part: 10516671 *Qty: 4 Split Washer Superseded
Location: 52 Prev | Next Part: 16102311 *Qty: 4 Nut Superseded
Location: 53 Prev | Next Part: 103929 *Qty: 1 Upper protection plate $155.25
Location: 54 Prev | Next Part: 103933 *Qty: 1 Fixing bracket $11.43
Location: 55 Prev | Next Part: 10977710 *Qty: 2 Bolt Superseded
Location: 56 Prev | Next Part: 11195471 *Qty: 2 Washer Superseded
Location: 57 Prev | Next Part: 107073 *Qty: 1 Front lower bulkhead $82.65
Location: 58 Prev | Next Part: 107074 *Qty: 1 Rear lower bulkhead $39.70
Location: 59 Prev | Next Part: 13541121 *Qty: 2 Long stud Superseded
Location: 60 Prev | Next Part: 13540821 *Qty: 5 Short stud Superseded
Location: 61 Prev | Next Part: 15896211 *Qty: 7 Nut Superseded
Location: 62 Prev | Next Part: 11197771 *Qty: 7 Washer Superseded
Location: 63 Prev | Next Part: 102725 *Qty: 2 Dowel $0.93
Location: 64 Prev | Next Part: 13539021 *Qty: 8 Stud for protection Superseded
Location: 65 Prev | Next Part: 15896411 *Qty: 8 Nut Superseded
Location: 66 Prev | Next Part: 127035 *Qty: 1 Conveyor
Not for U.S. Version
$436.10
Location: 67 Prev | Next Part: 107533 *Qty: 1 Bellows
Not U.S. Version
$85.87
Location: 68 Prev | Next Part: 128239 *Qty: 1 Hose from cooler to crankcase
For U.S. Version
$322.20
Location: 69 Prev | Next Part: 128238 *Qty: 1 Hose from cooler to filter support
For U.S. Version
Call
Location: 70 Prev | Next Part: 10902021 *Qty: 2 Screw
For U.S. Version
Superseded
Location: 71 Prev | Next Part: 127494 *Qty: 2 Washer
For U.S. Version
$0.90
Location: 72 Prev | Next Part: 12644401 *Qty: 2 Washer
For U.S. Version
Superseded
Location: 73 Prev | Next Part: 119168 *Qty: 1 Radiator Support
For U.S. Version
$27.08

* Quantity shown indicates the number of pieces used in the diagram.
