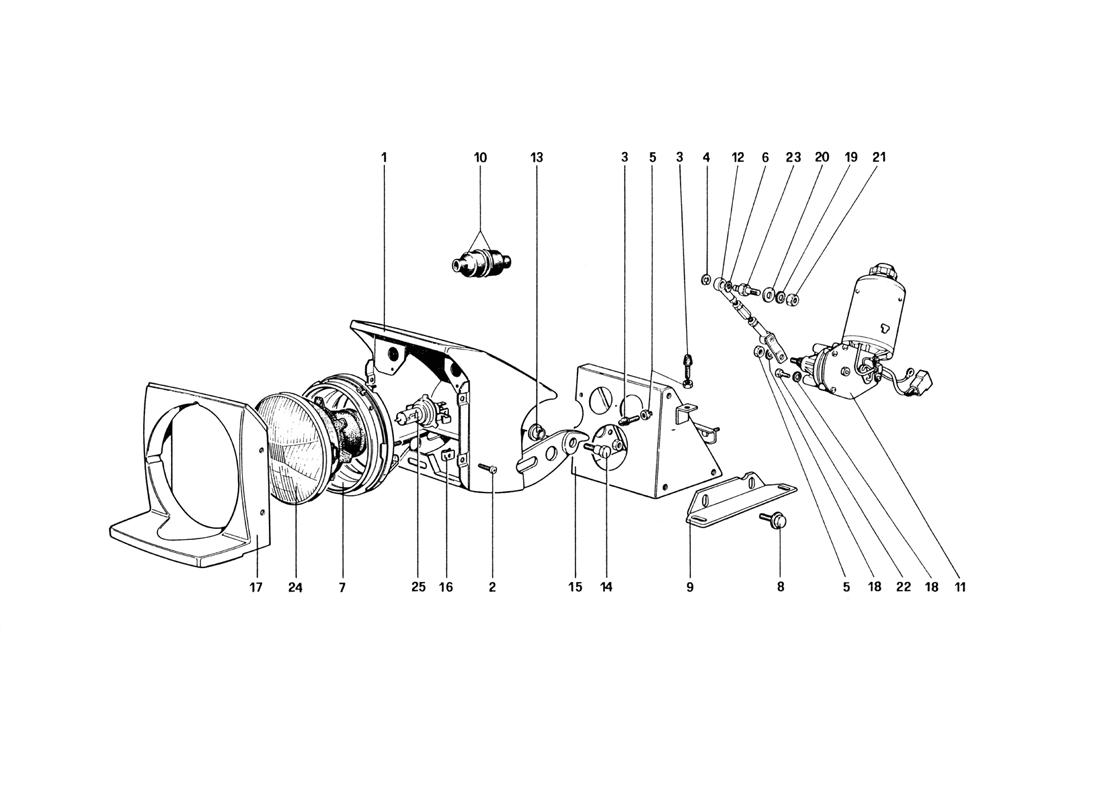

LIGHTS LIFTING DEVICE AND HEADLIGHTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60570600 *Qty: 1 Housing R.H. headlamp $1,830.23
Location: 1 Prev | Next Part: 60670700 *Qty: 1 Housing L.H. headlamp $2.46
Location: 3 Prev | Next Part: 50087709 *Qty: 6 Rod $7.91
Location: 4 Prev | Next Part: 11087976 *Qty: 2 Seeger ring Superseded
Location: 5 Prev | Next Part: 15896211 *Qty: 8 Nut Superseded
Location: 6 Prev | Next Part: 30152807 *Qty: 2 Washer Call
Location: 7 Prev | Next Part: 60184804 *Qty: 2 Housing sealed beam Call
Location: 8 Prev | Next Part: 13842471 *Qty: 16 Screw Superseded
Location: 9 Prev | Next Part: 60581900 *Qty: 2 L.H. bracket $14.95
Location: 9 Prev | Next Part: 60581600 *Qty: 2 R.H. bracket Call
Location: 10 Prev | Next Part: 60645100 *Qty: 4 Protection $1.58
Location: 11 Prev | Next Part: 60727800 *Qty: 1 Headlamp lifting motor L.H.
Fitted on R.H. side
$202.18
Location: 11 Prev | Next Part: 60727500 *Qty: 1 Headlamp lifting motor R.H.
Fitted on L.H side
Superseded
Location: 12 Prev | Next Part: 61328200 *Qty: 2 Connecting rod Call
Location: 13 Prev | Next Part: 50070507 *Qty: 4 Bushing $0.90
Location: 14 Prev | Next Part: 50870806 *Qty: 4 Fulcrum pin Call
Location: 15 Prev | Next Part: 60648000 *Qty: 1 R.H. support $111.54
Location: 15 Prev | Next Part: 61750800 *Qty: 1 L.H. support $102.26
Location: 16 Prev | Next Part: 40136707 *Qty: 8 Clip $1.90
Location: 17 Prev | Next Part: 60570900 *Qty: 1 Covering L.H. Call
Location: 17 Prev | Next Part: 60570800 *Qty: 1 Covering R.H. Call
Location: 18 Prev | Next Part: 12605371 *Qty: 8 Washer $0.90
Location: 19 Prev | Next Part: 10615770 *Qty: 2 Washer Superseded
Location: 20 Prev | Next Part: 12638601 *Qty: 2 Washer $0.90
Location: 21 Prev | Next Part: 12164721 *Qty: 2 Nut Superseded
Location: 22 Prev | Next Part: 10902121 *Qty: 6 Screw Superseded
Location: 23 Prev | Next Part: 61325900 *Qty: 2 Pin $29.88
Location: 24 Prev | Next Part: 60865200 *Qty: 2 Headlamp with bulb
F
Call
Location: 24 Prev | Next Part: 60865000 *Qty: 2 Headlamp with bulb L.H.D.
Not for F and U.S. Version
Call
Location: 24 Prev | Next Part: 61610400 *Qty: 2 Sealed beam
For U.S. Version
$180.47
Location: 24 Prev | Next Part: 68865100 *Qty: 2 Headlamp with bulb R.H.D. Call
Location: 25 Prev | Next Part: 60121704 *Qty: 2 Bulb for headlamp
Not for F - U.S. Version
Superseded
Location: 25 Prev | Next Part: 69122603 *Qty: 2 Bulb for headlamp
F
Call

* Quantity shown indicates the number of pieces used in the diagram.
