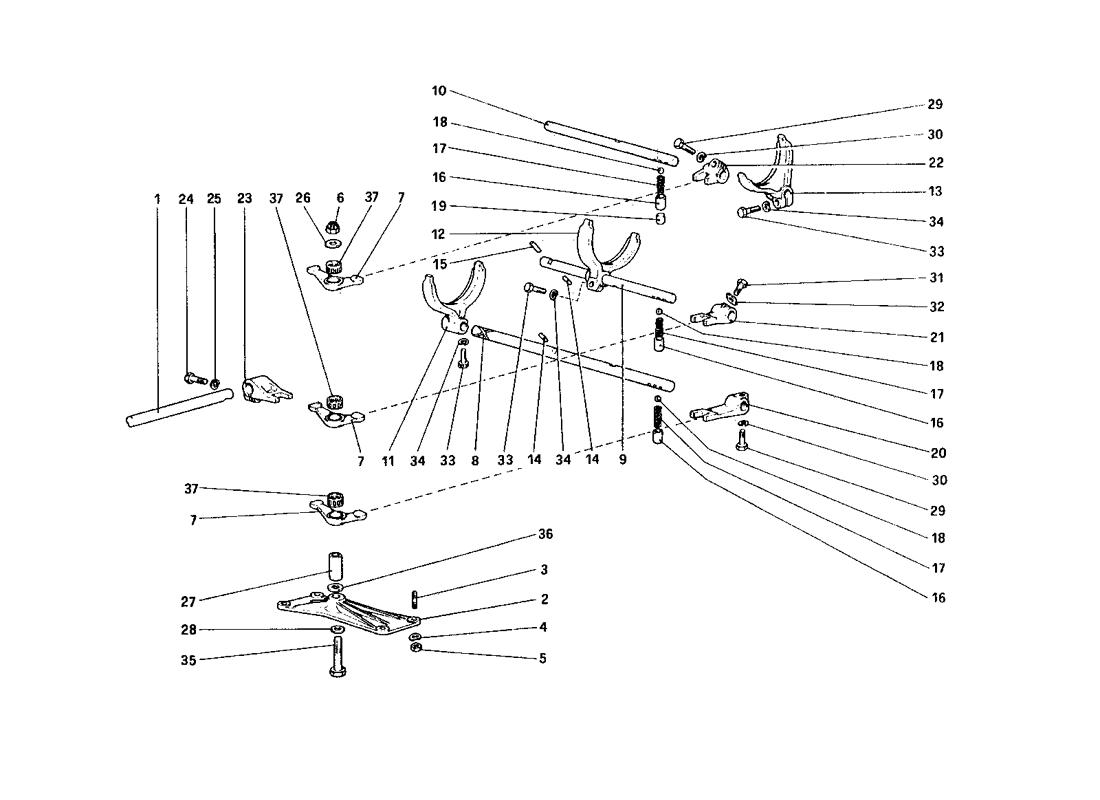

INSIDE GEARBOX CONTROLS

INSIDE GEARBOX CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 109767 1 Shaft for lever Unavailable
2 114884 1 Support $25.94
4 11197771 4 Washer Superseded
5 15896211 4 Nut Superseded
6 16109221 1 Nut $1.16
7 115249 3 Rocker arm Unavailable
8 120923 1 Control rod, 1st speed and reverse $1,045.59
9 120924 1 Control rod, 2nd - 3rd speeds $269.81
10 120925 1 Control rod, 4th - 5th speeds $260.81
11 115341 1 Fork, 1st speed and reverse $524.15
12 115349 1 Fork, 2nd - 3rd speeds $612.21
13 116348 1 Fork, 4th - 5th speeds Unavailable
14 115355 2 Stop roller $14.23
15 115356 1 Stop roller $13.38
16 116376 3 Bush Unavailable
17 100760 3 Spring $183.96
18 101612 3 Ball $1.32
19 116357 1 Spacer Unavailable
20 115358 1 Control fork for 1st speed and reverse $248.47
21 115359 1 Control fork for 2nd and 3rd speeds $222.45
22 115360 1 Control fork for 4th and 5th speeds $208.52
23 106213 1 Lever Unavailable
24 16043621 1 Bolt Unavailable
25 106852 1 Washer Superseded
26 114865 1 Washer $1.95
27 115374 1 Bush $16.16
28 108281 1 Washer $1.66
29 16043621 2 Bolt Unavailable
30 106852 2 Washer Superseded
31 104279 1 Bolt $34.92
32 103587 1 Plate $11.02
33 16043621 3 Bolt Unavailable
34 106852 3 Washer Superseded
35 15541121 1 Bolt $0.97
36 114865 1 Shim $1.95
37 115373 3 Roller cage $4.83

* Quantity shown indicates the number of pieces used in the diagram.
