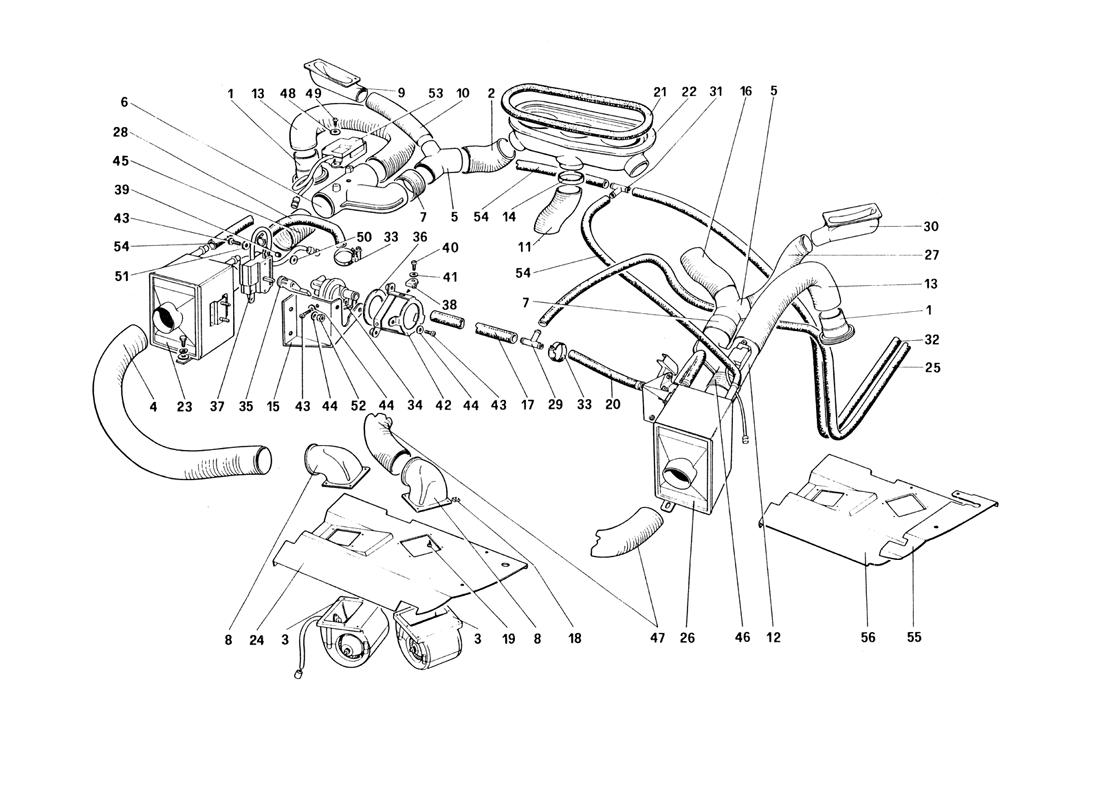

HEATING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66654499 *Qty: 2 Under air outlet Call
Location: 2 Prev | Next Part: 61790999 *Qty: 1 Air duct Call
Location: 4 Prev | Next Part: 61799209 *Qty: 1 R.H. air duct Call
Location: 5 Prev | Next Part: 60153608 *Qty: 2 3 way fitting $17.89
Location: 6 Prev | Next Part: 61738999 *Qty: 1 R.H. switch Call
Location: 7 Prev | Next Part: 61790800 *Qty: 2 Air duct $41.65
Location: 8 Prev | Next Part: 61770100 *Qty: 2 Union $311.28
Location: 9 Prev | Next Part: 60055407 *Qty: 1 R.H. aif outlet for L.H.D. $87.85
Location: 9 Prev | Next Part: 60199495 *Qty: 1 R.H. air outlet for R.H.D. Call
Location: 10 Prev | Next Part: 61791100 *Qty: 1 Air duct $64.74
Location: 11 Prev | Next Part: 61791300 *Qty: 1 Air conditioning duct $34.41
Location: 12 Prev | Next Part: 61739009 *Qty: 1 L.H. switch Call
Location: 13 Prev | Next Part: 61790600 *Qty: 1 Air duct Call
Location: 14 Prev | Next Part: 20143202 *Qty: 1 Plug Superseded
Location: 15 Prev | Next Part: 126323 *Qty: 2 Heater valve bracket $21.04
Location: 16 Prev | Next Part: 61791000 *Qty: 1 Air duct $121.12
Location: 17 Prev | Next Part: 61914300 *Qty: 1 Hose from 3 way to R.H. water valve R.H.D. $10.20
Location: 17 Prev | Next Part: 127173 *Qty: 1 Hose from 3 way to R.H. water valve L.H.D. $16.29
Location: 18 Prev | Next Part: 60674700 *Qty: 8 Spring $0.90
Location: 19 Prev | Next Part: 15644101 *Qty: 8 Screw $0.91
Location: 20 Prev | Next Part: 127174 *Qty: 1 Hose from 3 way to L.H. water valve-L.H.D. $27.87
Location: 20 Prev | Next Part: 61914400 *Qty: 1 Hose from 3 way to L.H. water valve R.H.D. $8.32
Location: 21 Prev | Next Part: 50091503 *Qty: 1 Gasket $4.08
Location: 22 Prev | Next Part: 20142709 *Qty: 1 Airduffusor Call
Location: 23 Prev | Next Part: 61761400 *Qty: 1 R.H. heater Call
Location: 24 Prev | Next Part: 61770000 *Qty: 1 Plate for electro fan
Not for SA and U.S. Version
Superseded
Location: 25 Prev | Next Part: 109750 *Qty: 1 Hose motor - 3 way of delivery R.H.D. Call
Location: 25 Prev | Next Part: 127172 *Qty: 1 Hose motor - 3 way of delivery L.H.D. $178.15
Location: 26 Prev | Next Part: 61761300 *Qty: 1 L.H. heater Call
Location: 27 Prev | Next Part: 61791200 *Qty: 1 Air duct $91.70
Location: 28 Prev | Next Part: 127168 *Qty: 2 Hose tap - heater $98.17
Location: 29 Prev | Next Part: 127295 *Qty: 1 3 way fitting $28.97
Location: 30 Prev | Next Part: 60055506 *Qty: 1 L.H. air outlet for L.H.D. $95.98
Location: 30 Prev | Next Part: 60055407 *Qty: 1 L.H. air outlet for R.H.D. $87.85
Location: 31 Prev | Next Part: 104393 *Qty: 1 3 way of back flow Call
Location: 32 Prev | Next Part: 109755 *Qty: 1 Hose 3 way- motor $197.97
Location: 33 Prev | Next Part: 12179599 *Qty: 16 Clamf Call
Location: 34 Prev | Next Part: 126324 *Qty: 2 Heater valve Call
Location: 35 Prev | Next Part: 126322 *Qty: 2 Coupling tap - motor $4.08
Location: 36 Prev | Next Part: 126326 *Qty: 2 Gasket $7.30
Location: 37 Prev | Next Part: 126325 *Qty: 2 Control motor for heater valve $270.76
Location: 38 Prev | Next Part: 61325200 *Qty: 4 Bracket Call
Location: 39 Prev | Next Part: 126995 *Qty: 4 Bushing $5.44
Location: 40 Prev | Next Part: 15642501 *Qty: 4 Screw Call
Location: 41 Prev | Next Part: 14498501 *Qty: 4 Washer $0.90
Location: 42 Prev | Next Part: 126299 *Qty: 2 Heater valve bracket $35.54
Location: 43 Prev | Next Part: 13273911 *Qty: 10 Screw $0.90
Location: 44 Prev | Next Part: 106850 *Qty: 10 Washer Superseded
Location: 45 Prev | Next Part: 61790500 *Qty: 1 R.H. air duct $29.21
Location: 46 Prev | Next Part: 61790500 *Qty: 1 L.H. air duct $29.21
Location: 47 Prev | Next Part: 61790300 *Qty: 1 L.H. air duct $165.27
Location: 48 Prev | Next Part: 14498501 *Qty: 4 Washer $0.90
Location: 49 Prev | Next Part: 15901508 *Qty: 4 Screw $0.90
Location: 50 Prev | Next Part: 10519301 *Qty: 4 Washer $0.90
Location: 51 Prev | Next Part: 12601179 *Qty: 4 Washer Superseded
Location: 52 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 53 Prev | Next Part: 11790000 *Qty: 2 Motor Call
Location: 54 Prev | Next Part: 122225 *Qty: 2 Hose heater - 3 way of backfiow Call
Location: 55 Prev | Next Part: 61184100 *Qty: 1 Addition for plate
SA - U.S. Version
Call
Location: 56 Prev | Next Part: 61869800 *Qty: 1 Plate for electro fans
S A - U.S. Version
$376.95

* Quantity shown indicates the number of pieces used in the diagram.
