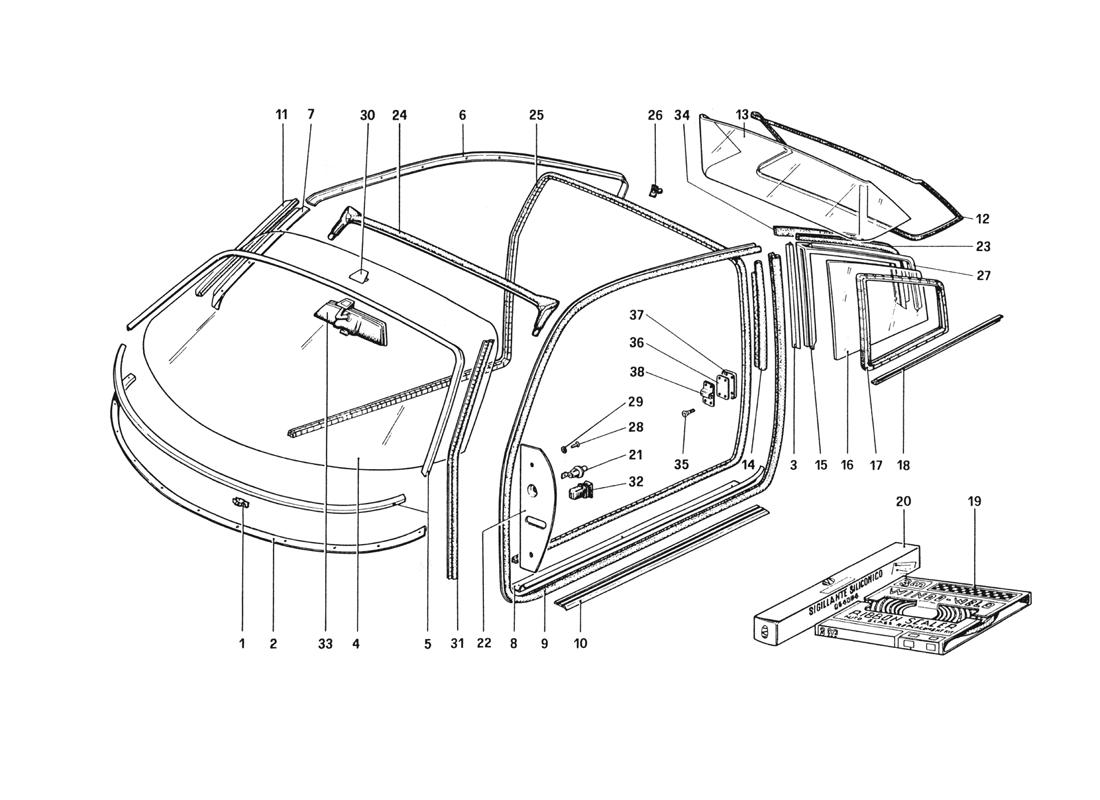

GLASSES

Go to Split View

GLASSES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 40208209 *Qty: 15 dip $4.66
Location: 2 Prev | Next Part: 60121506 *Qty: 1 Rim on instrument plate $219.46
Location: 4 Prev | Next Part: 60019908 *Qty: 1 Windshield glass Call
Location: 5 Prev | Next Part: 60295102 *Qty: 1 Windshield trim Call
Location: 6 Prev | Next Part: 60248101 *Qty: 1 L.H. drip GTB $526.47
Location: 6 Prev | Next Part: 60248002 *Qty: 1 R.H. drip GTB $526.47
Location: 7 Prev | Next Part: 60872600 *Qty: 1 L.H. moulding, windshield GTS $196.11
Location: 7 Prev | Next Part: 60269800 *Qty: 1 Front R.H. drip GTB $115.79
Location: 7 Prev | Next Part: 60269909 *Qty: 1 Front L.H. drip GTB $132.84
Location: 7 Prev | Next Part: 60872500 *Qty: 1 R.H. moulding, windshield GTS $196.11
Location: 8 Prev | Next Part: 60099306 *Qty: 1 Lower moulding, L.H. door GTB Call
Location: 8 Prev | Next Part: 60099207 *Qty: 1 Lower moulding, R.H. door GTB $151.52
Location: 9 Prev | Next Part: 60298007 *Qty: 2 Weatherstrip door opening GTB Superseded
Location: 10 Prev | Next Part: 60116704 *Qty: 2 Moulding, door sill Call
Location: 11 Prev | Next Part: 60375904 *Qty: 2 Weatherstrip for windshield post GTS $18.92
Location: 12 Prev | Next Part: 60370301 *Qty: 1 Weatherstrip for rear window Call
Location: 13 Prev | Next Part: 61896800 *Qty: 1 Thermic rear window glass Superseded
Location: 13 Prev | Next Part: 60338704 *Qty: 1 Rear window glass $711.62
Location: 14 Prev | Next Part: 60313301 *Qty: 2 Gasket GTB Call
Location: 15 Prev | Next Part: 60262904 *Qty: 1 R.H. frame GTB Call
Location: 15 Prev | Next Part: 60263704 *Qty: 1 L.H. frame GTB $733.34
Location: 16 Prev | Next Part: 60264900 *Qty: 1 L.H. glass GTB Call
Location: 16 Prev | Next Part: 60162807 *Qty: 1 R.H. glass GTS $128.18
Location: 16 Prev | Next Part: 60162906 *Qty: 1 L.H. glass GTS $156.07
Location: 16 Prev | Next Part: 60264801 *Qty: 1 R.H. glass GTB Call
Location: 17 Prev | Next Part: 60058302 *Qty: 2 Gasket GTB Call
Location: 17 Prev | Next Part: 60522800 *Qty: 1 Gasket, R.H. GTS $57.43
Location: 17 Prev | Next Part: 60522900 *Qty: 1 Gasket, L.H. GTS $57.43
Location: 18 Prev | Next Part: 60267903 *Qty: 1 Lower moulding, L.H. glass GTB $178.60
Location: 18 Prev | Next Part: 60267804 *Qty: 1 Lower moulding, R.H. glass GTB $186.77
Location: 19 Prev | Next Part: 60089505 *Qty: 1 Windo-Weld sealant for windshield Superseded
Location: 20 Prev | Next Part: 60156106 *Qty: 1 Cartridge of silicone sealant Call
Location: 21 Prev | Next Part: 61827300 *Qty: 2 Switch
For U.S. Version q.ty 3
Superseded
Location: 22 Prev | Next Part: 60339306 *Qty: 1 Guard for L.H. hinge - GTS
For SA and U.S. Version
$81.25
Location: 22 Prev | Next Part: 60370103 *Qty: 1 Guard for R.H. hinge - GTS $63.49
Location: 22 Prev | Next Part: 60320603 *Qty: 1 Guard for R.H. hinge - GTB $32.92
Location: 22 Prev | Next Part: 60368701 *Qty: 1 Guard for L.H. hinge - GTS
Not for SA and U.S. Version
$72.15
Location: 22 Prev | Next Part: 60368602 *Qty: 1 Guard for L.H. hinge - GTB
Not for SA and U.S. Version
$72.15
Location: 22 Prev | Next Part: 60291903 *Qty: 1 Guard for L.H. hinge - GTB
For SA and U.S. Version
$33.38
Location: 23 Prev | Next Part: 61762400 *Qty: 2 Gasket GTB $11.43
Location: 24 Prev | Next Part: 60607900 *Qty: 1 Gasket GTS $547.11
Location: 25 Prev | Next Part: 61705500 *Qty: 1 Gasket GTS $132.35
Location: 26 Prev | Next Part: 40065005 *Qty: 1 Gromrnet for R.H. frame GTB Call
Location: 27 Prev | Next Part: 60516900 *Qty: 1 Gasket for R.H. frame GTB $12.15
Location: 27 Prev | Next Part: 60517000 *Qty: 1 Gasket for L.H. frame GTB Call
Location: 28 Prev | Next Part: 20297800 *Qty: 4 Screw for hinge guard $0.97
Location: 29 Prev | Next Part: 10615371 *Qty: 4 Washer $0.90
Location: 30 Prev | Next Part: 60715400 *Qty: 1 Adhesive for rear mirror Superseded
Location: 31 Prev | Next Part: 60609100 *Qty: 2 Weatherstrip, door opening GTS Superseded
Location: 32 Prev | Next Part: 60801500 *Qty: 2 Protection for switch
For U.S. Version q.ty 3
$9.34
Location: 33 Prev | Next Part: 60032703 *Qty: 1 Inside rear view mirror $385.76
Location: 34 Prev | Next Part: 60762700 *Qty: 2 Gasket GTB Superseded
Location: 35 Prev | Next Part: 20287504 *Qty: 8 Screw $2.57
Location: 36 Prev | Next Part: 60163003 *Qty: 2 Spacer $9.30
Location: 37 Prev | Next Part: 60602400 *Qty: 2 Gasket $49.02
Location: 38 Prev | Next Part: 20019204 *Qty: 1 L.H. lock striker $395.92
Location: 38 Prev | Next Part: 20019106 *Qty: 1 R.H. lock striker Call

* Quantity shown indicates the number of pieces used in the diagram.
