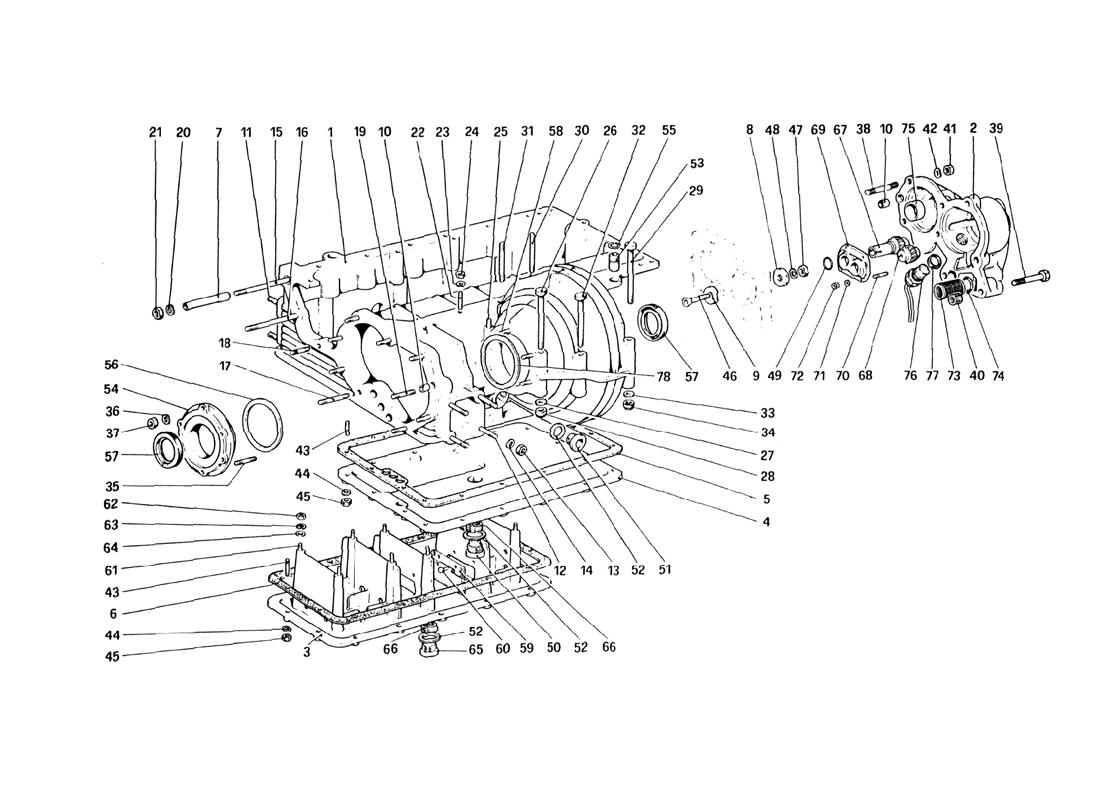

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

Go to Split View

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 118341 *Qty: 1 Gearbox differential and oil sump
With assembly no. 115179
Call
Location: 2 Prev | Next Part: 107871 *Qty: 1 OH sump caver, complete Call
Location: 2 Prev | Next Part: 113073 *Qty: 1 Rear cover
With assembly no 115179
$692.78
Location: 3 Prev | Next Part: 104192 *Qty: 1 Oil sump cover
With assembly no 107875
Superseded
Location: 4 Prev | Next Part: 115353 *Qty: 1 Lower cover Call
Location: 5 Prev | Next Part: 104196 *Qty: 1 Gasket Superseded
Location: 6 Prev | Next Part: 104197 *Qty: 1 Gasket Superseded
Location: 7 Prev | Next Part: 104033 *Qty: 1 Centering dowel $30.11
Location: 8 Prev | Next Part: 104198 *Qty: 1 Washer $11.08
Location: 9 Prev | Next Part: 104199 *Qty: 1 Washer $6.57
Location: 10 Prev | Next Part: 102704 *Qty: 2 Centering dowel $2.18
Location: 11 Prev | Next Part: 13449321 *Qty: 8 Stud for front pads $1.32
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Stud for rear pads $0.90
Location: 13 Prev | Next Part: 12164711 *Qty: 16 Nut Superseded
Location: 14 Prev | Next Part: 106863 *Qty: 16 Wather Superseded
Location: 15 Prev | Next Part: 13962821 *Qty: 1 Stud Call
Location: 16 Prev | Next Part: 13952621 *Qty: 1 Stud $1.28
Location: 17 Prev | Next Part: 13517421 *Qty: 1 Stud $41.97
Location: 18 Prev | Next Part: 13517221 *Qty: 8 Stud Superseded
Location: 19 Prev | Next Part: 13517321 *Qty: 1 Stud Superseded
Location: 20 Prev | Next Part: 11198071 *Qty: 12 Washer Superseded
Location: 21 Prev | Next Part: 16100811 *Qty: 12 Nut Superseded
Location: 22 Prev | Next Part: 108966 *Qty: 4 Stud for crankcase $13.80
Location: 23 Prev | Next Part: 11198071 *Qty: 4 Washer Superseded
Location: 24 Prev | Next Part: 16100811 *Qty: 4 Nut Superseded
Location: 25 Prev | Next Part: 115179 *Qty: 1 Complete gearbox $6,358.30
Location: 25 Prev | Next Part: 13450421 *Qty: 2 Stud $0.90
Location: 26 Prev | Next Part: 15972021 *Qty: 2 Bolt $1.32
Location: 27 Prev | Next Part: 12638601 *Qty: 4 Washer $0.90
Location: 28 Prev | Next Part: 12574511 *Qty: 4 Self lock ing nut Superseded
Location: 29 Prev | Next Part: 104189 *Qty: 1 Bolt $10.71
Location: 30 Prev | Next Part: 13518021 *Qty: 2 Stud $5.68
Location: 31 Prev | Next Part: 13517821 *Qty: 1 Stud Superseded
Location: 32 Prev | Next Part: 107711 *Qty: 1 Bolt $6.80
Location: 33 Prev | Next Part: 10519601 *Qty: 5 Washer Superseded
Location: 34 Prev | Next Part: 16104111 *Qty: 5 Self locking nut Superseded
Location: 35 Prev | Next Part: 12429721 *Qty: 5 Stud $0.90
Location: 36 Prev | Next Part: 12601371 *Qty: 6 Spring washer Superseded
Location: 37 Prev | Next Part: 16104111 *Qty: 6 Nut Superseded
Location: 38 Prev | Next Part: 13517221 *Qty: 5 Stud Superseded
Location: 39 Prev | Next Part: 16044121 *Qty: 2 Screw $0.90
Location: 39 Prev | Next Part: 18044221 *Qty: 1 Screw for cover and propelling unit earth Call

* Quantity shown indicates the number of pieces used in the diagram.
