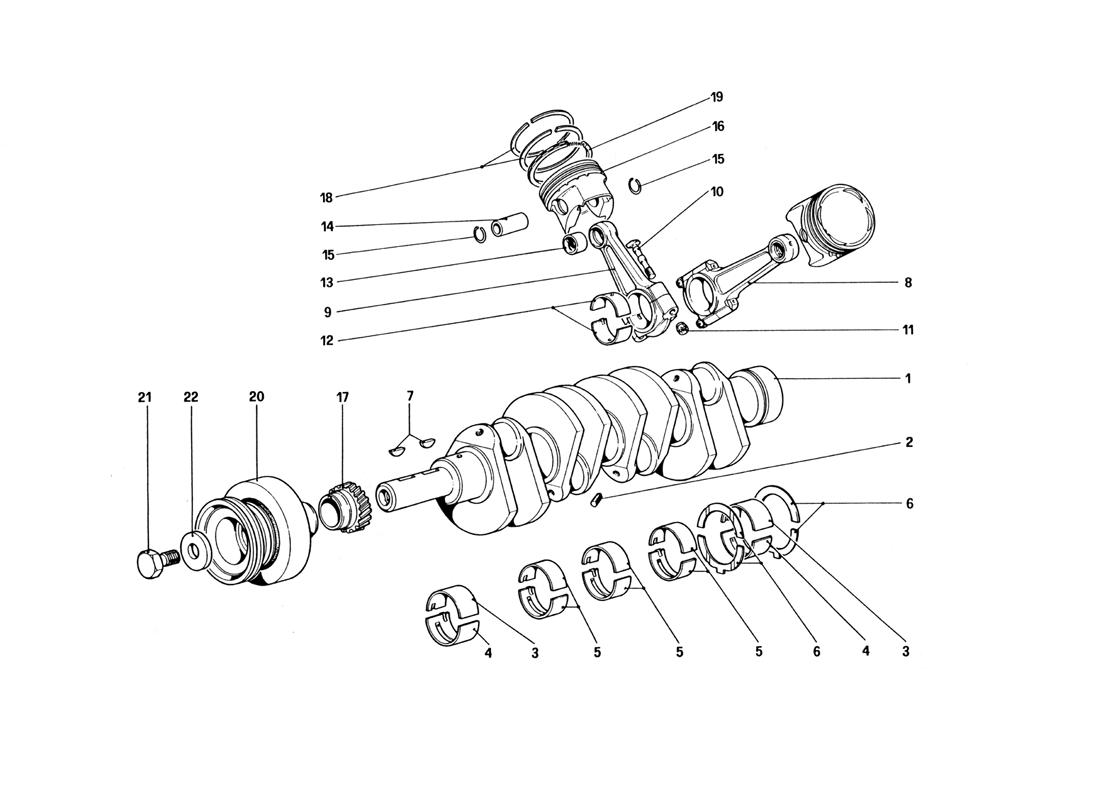

CRANKSHAFT - CONNECTING RODS AND PISTONS

Go to Split View

CRANKSHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 116961 *Qty: 1 Crankshaft $4,205.32
Location: 2 Prev | Next Part: - *Qty: 8 Half bearing, front and rear Call
Location: 3 Prev | Next Part: 100119 *Qty: 2 1st undersize 0,254 mm. on ? $43.48
Location: 3 Prev | Next Part: 100120 *Qty: 2 2nd undersize 0,508 mm. on ? $92.99
Location: 3 Prev | Next Part: 100118 *Qty: 2 Upper half bearing $51.81
Location: 4 Prev | Next Part: 100123 *Qty: 2 1st undersize 0,254 mm. on ? $138.09
Location: 4 Prev | Next Part: - *Qty: 2 Half bearing, central and intermediate Call
Location: 4 Prev | Next Part: 100122 *Qty: 2 Lover half bearing $44.61
Location: 4 Prev | Next Part: 100124 *Qty: 2 2nd undersize 0,508 mm. on ? $47.40
Location: 5 Prev | Next Part: 104023 *Qty: 6 Half bearing, upper and lower Call
Location: 5 Prev | Next Part: 104025 *Qty: 6 2nd undersize 0,508 mm. on ? $42.97
Location: 5 Prev | Next Part: - *Qty: 6 Shim Call
Location: 5 Prev | Next Part: 104024 *Qty: 6 1st undersize 0,254 mm. on ? Superseded
Location: 6 Prev | Next Part: 113984 *Qty: 2 1st oversize 0,127 mm. $16.82
Location: 6 Prev | Next Part: 100147 *Qty: 2 2nd oversize 0,25 mm. $17.79
Location: 6 Prev | Next Part: 100146 *Qty: 2 Shim for rear support $36.54
Location: 7 Prev | Next Part: 10206020 *Qty: 2 Tongue $1.86
Location: 8 Prev | Next Part: 109738 *Qty: 8 Connecting rod, complete $802.30
Location: 9 Prev | Next Part: 109688 *Qty: 8 Connecting rod and cap
With assembly no. 109738
Call
Location: 10 Prev | Next Part: 100156 *Qty: 16 Bolt securing connecting rod $20.44
Location: 11 Prev | Next Part: 104011 *Qty: 16 Nut for connecting rod bolt $12.55
Location: 12 Prev | Next Part: 100150 *Qty: 16 Connecting rod half bearing Superseded
Location: 12 Prev | Next Part: 100152 *Qty: 16 2nd undersize 0,508 mm. on ? $113.91
Location: 12 Prev | Next Part: 100151 *Qty: 16 1st undersize 0,254 mm. on ? $80.50
Location: 13 Prev | Next Part: 107100 *Qty: 8 Bush for gudgeon pin $24.59
Location: 14 Prev | Next Part: 119537 *Qty: 8 Gudgeon pin $79.32
Location: 15 Prev | Next Part: 100174 *Qty: 16 Ring for gudgeon pin $4.22
Location: 16 Prev | Next Part: 126580 *Qty: 8 Piston with piston ring
Not for U.S. version
$697.18
Location: 16 Prev | Next Part: 126754 *Qty: 8 Piston with piston ring
For U.S. version
$825.49
Location: 17 Prev | Next Part: 126582 *Qty: 1 Set of pistons rings $160.15
Location: 17 Prev | Next Part: 117655 *Qty: 1 Driving sprocket for timing system $606.47
Location: 18 Prev | Next Part: 126583 *Qty: 1 Ac torsion seal ring
1st- 2nd groove - With complete set no 126582
Call
Location: 19 Prev | Next Part: 119851 *Qty: 8 ROF scraper ring with spring
3td groove - With complete set no 126582
Call
Location: 20 Prev | Next Part: 126189 *Qty: 1 Torsion damper with pulley Call
Location: 21 Prev | Next Part: 100476 *Qty: 1 Screw Superseded
Location: 22 Prev | Next Part: 102775 *Qty: 1 Washer $36.35

* Quantity shown indicates the number of pieces used in the diagram.
