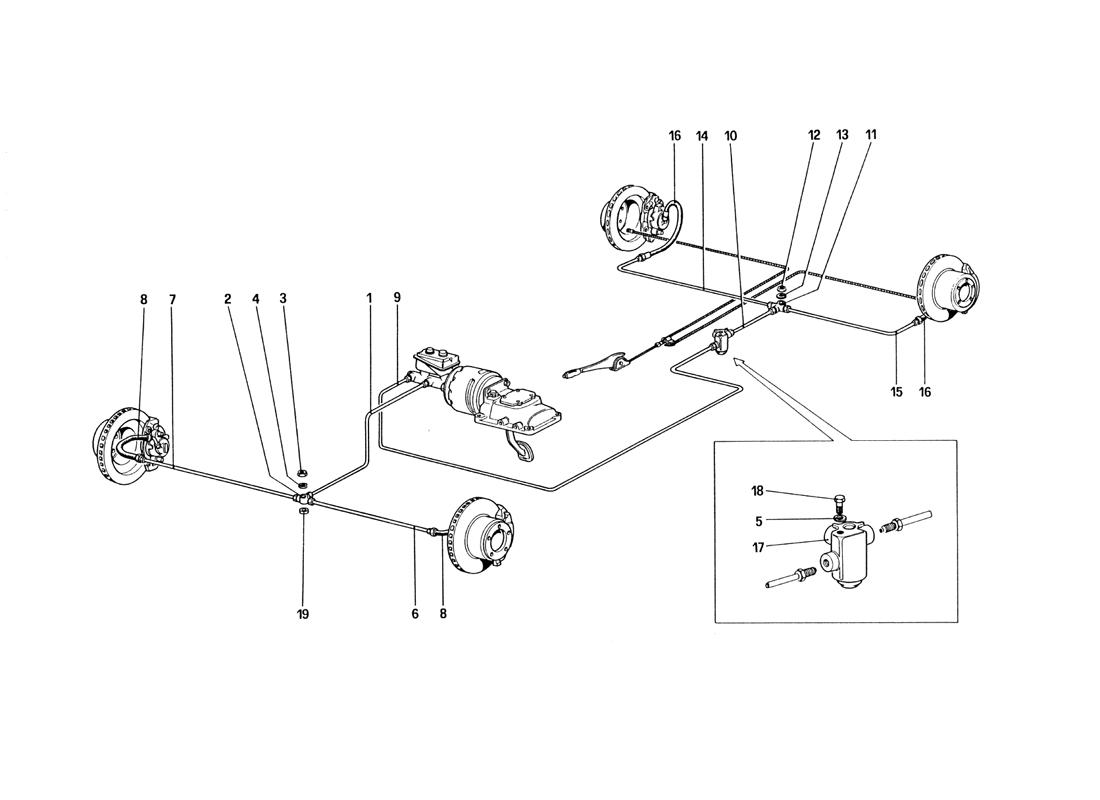

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 105278 *Qty: 1 Pipe from pump to front 3 way fitting $13.80
Location: 2 Prev | Next Part: 101394 *Qty: 1 3 way fitting Call
Location: 4 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 5 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 6 Prev | Next Part: 105278 *Qty: 1 Pipe from 3 way to left front hose $13.80
Location: 7 Prev | Next Part: 105278 *Qty: 1 Pipe from 3 way to right front hose $13.80
Location: 8 Prev | Next Part: 118101 *Qty: 2 Front circuit hose $130.19
Location: 9 Prev | Next Part: 106670 *Qty: 1 Pipe from pump to pressure regulator
For GD use no. 101407
$13.80
Location: 10 Prev | Next Part: 128370 *Qty: 1 Pipe from pressure regulator to 3 way fitting
For GD use no. 117344
$28.46
Location: 11 Prev | Next Part: 101394 *Qty: 1 3 way fitting Call
Location: 12 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 13 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 14 Prev | Next Part: 104470 *Qty: 1 Pipe from 3 way union to right hose $12.94
Location: 15 Prev | Next Part: 101395 *Qty: 1 Pipe from 3 way union Superseded
Location: 16 Prev | Next Part: 127838 *Qty: 2 Rear circuit hose $75.27
Location: 17 Prev | Next Part: 124373 *Qty: 1 Pressure regulator Superseded
Location: 18 Prev | Next Part: 16043021 *Qty: 1 Screw $0.90
Location: 19 Prev | Next Part: 104339 *Qty: 1 Spacer $5.62

* Quantity shown indicates the number of pieces used in the diagram.
