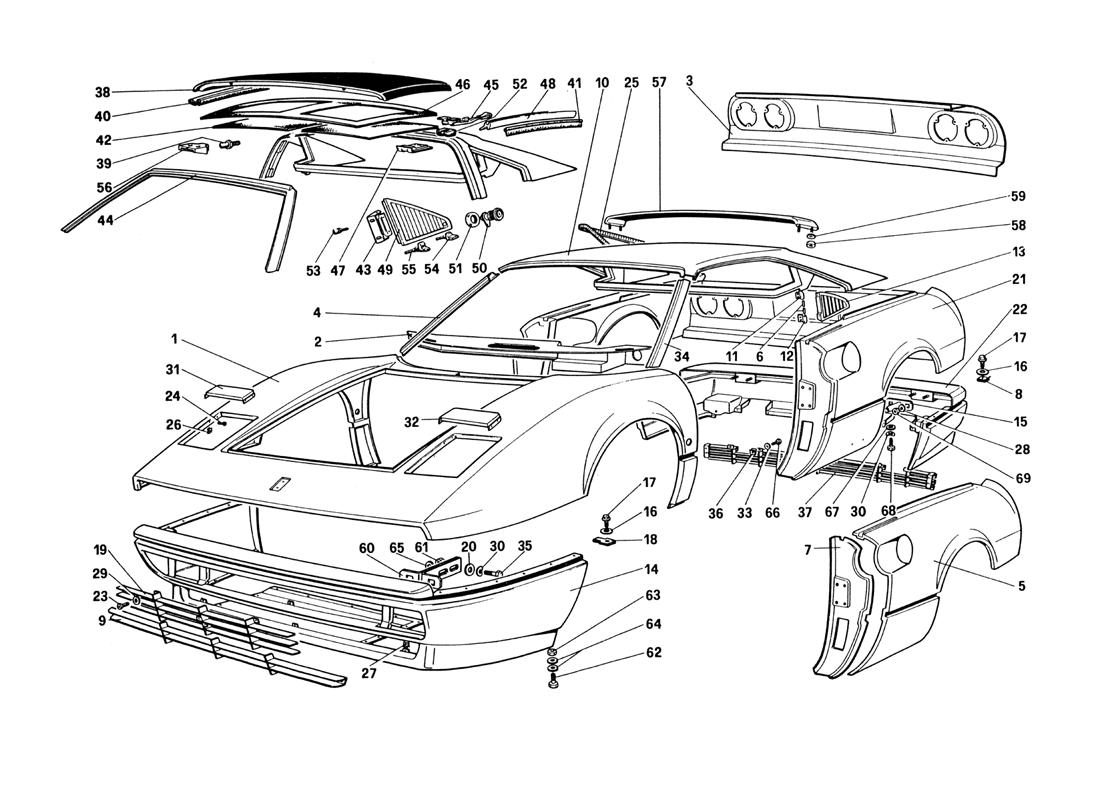

BODY SHELL - OUTER ELEMENTS (NOT FOR U.S. AND SA VERSION)

Go to Split View

BODY SHELL - OUTER ELEMENTS (NOT FOR U.S. AND SA VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61751200 *Qty: 1 Front panel Call
Location: 2 Prev | Next Part: 61797700 *Qty: 1 Panel L.H.D. $208.74
Location: 3 Prev | Next Part: 61109600 *Qty: 1 Panel for number plate seat Superseded
Location: 4 Prev | Next Part: 61141100 *Qty: 1 Panel for R.H. post GTB $172.98
Location: 5 Prev | Next Part: 60358900 *Qty: 1 Rear fender R.H. GTS $2,859.38
Location: 5 Prev | Next Part: 60359106 *Qty: 1 Rear fender R.H. GTB $4,118.13
Location: 5 Prev | Next Part: 60359007 *Qty: 1 Rear fender L.H. GTS $2,868.62
Location: 5 Prev | Next Part: 60359205 *Qty: 1 Rear fender L.H. GTB $4,118.13
Location: 6 Prev | Next Part: 60042108 *Qty: 2 Hinge pin GTB $2.11
Location: 7 Prev | Next Part: 60216900 *Qty: 1 L.H. pillar for fender L.H.D. $141.49
Location: 7 Prev | Next Part: 60891100 *Qty: 1 L.H. pillar for fender R.H.D. $150.11
Location: 7 Prev | Next Part: 60891000 *Qty: 1 R.H. pillar for fender R.H.D. $206.29
Location: 7 Prev | Next Part: 60216801 *Qty: 1 R.H. pillar for fender L.H.D. $141.49
Location: 8 Prev | Next Part: 61878200 *Qty: 8 Clip $1.52
Location: 9 Prev | Next Part: 61797300 *Qty: 1 Under grill Call
Location: 10 Prev | Next Part: 60214806 *Qty: 1 Roof panel GTB $6,956.23
Location: 11 Prev | Next Part: 60040805 *Qty: 1 Upper hinge GTB $11.77
Location: 12 Prev | Next Part: 60040706 *Qty: 1 Lower hinge GTB $12.23
Location: 13 Prev | Next Part: 60370004 *Qty: 1 R.H. grill GTB $246.76
Location: 13 Prev | Next Part: 60337409 *Qty: 1 L.H. grill GTB $246.76
Location: 14 Prev | Next Part: 61741700 *Qty: 1 Front lower panel $4,883.13
Location: 15 Prev | Next Part: 61640600 *Qty: 2 Bracket Call
Location: 16 Prev | Next Part: 12640608 *Qty: 20 Washer Superseded
Location: 17 Prev | Next Part: 15926101 *Qty: 20 Screw $0.95
Location: 18 Prev | Next Part: 61848800 *Qty: 12 Clip $4.08
Location: 19 Prev | Next Part: 61736800 *Qty: 1 Grill Call
Location: 20 Prev | Next Part: 12642001 *Qty: 4 Washer $0.90
Location: 21 Prev | Next Part: 61901700 *Qty: 1 Rear panel GTS $7,597.19
Location: 21 Prev | Next Part: 61901500 *Qty: 1 Rear panel GTB Call
Location: 22 Prev | Next Part: 61740400 *Qty: 1 Rear lower panel Superseded
Location: 23 Prev | Next Part: 15688178 *Qty: 8 Screw $2.24
Location: 24 Prev | Next Part: 15903878 *Qty: 8 Screw $0.90
Location: 25 Prev | Next Part: 60528300 *Qty: 2 Gasket $11.56
Location: 26 Prev | Next Part: 60679600 *Qty: 8 Clip $0.99
Location: 27 Prev | Next Part: 60696300 *Qty: 8 Clip $0.90
Location: 28 Prev | Next Part: 20291308 *Qty: 4 Washer $0.90
Location: 29 Prev | Next Part: 10519306 *Qty: 8 Washer $0.90
Location: 30 Prev | Next Part: 106852 *Qty: 6 Washer Superseded
Location: 31 Prev | Next Part: 61810800 *Qty: 1 R.H. cover Superseded
Location: 32 Prev | Next Part: 61810900 *Qty: 1 L.H. cover Superseded
Location: 33 Prev | Next Part: 12637806 *Qty: 9 Washer $0.90
Location: 34 Prev | Next Part: 61141200 *Qty: 1 Covering for L.H. post. GTB $199.47
Location: 35 Prev | Next Part: 16043421 *Qty: 4 Screw Superseded
Location: 36 Prev | Next Part: 61066500 *Qty: 9 Clip $2.94
Location: 37 Prev | Next Part: 61734400 *Qty: 1 Rear grill $929.48
Location: 38 Prev | Next Part: 61128700 *Qty: 1 Hard top GTS $6,317.69
Location: 39 Prev | Next Part: 60189008 *Qty: 2 Front pin GTS $45.00
Location: 40 Prev | Next Part: 60398104 *Qty: 2 Gasket GTS Call
Location: 41 Prev | Next Part: 60608500 *Qty: 2 Gasket GTS Call
Location: 42 Prev | Next Part: 61202800 *Qty: 1 R.H. covering GTS $137.19
Location: 42 Prev | Next Part: 61202900 *Qty: 1 L.H. covering GTS $137.19
Location: 43 Prev | Next Part: 60325305 *Qty: 2 Grill hinge GTS $146.70
Location: 44 Prev | Next Part: 60872700 *Qty: 1 Framework for windshield GTS $784.46
Location: 45 Prev | Next Part: 60421500 *Qty: 2 Hard top opening handle GTS $538.91
Location: 46 Prev | Next Part: 61203000 *Qty: 1 Covering GTS $283.00
Location: 47 Prev | Next Part: 60500500 *Qty: 2 Rear bracket GTS Call
Location: 48 Prev | Next Part: 60608400 *Qty: 1 L.H. gutter GTS $324.90
Location: 48 Prev | Next Part: 60608300 *Qty: 1 R.H. gutter GTS $324.90
Location: 49 Prev | Next Part: 61818600 *Qty: 1 R.H. grill GTS $359.97
Location: 49 Prev | Next Part: 61818700 *Qty: 1 L.H. grill GTS $359.97
Location: 50 Prev | Next Part: 61819300 *Qty: 2 Block for grill GTS Superseded
Location: 51 Prev | Next Part: 61819400 *Qty: 2 Ring nut for grill GTS $3.57
Location: 52 Prev | Next Part: 60395506 *Qty: 2 Handle portection GTS $8.66
Location: 53 Prev | Next Part: 60892600 *Qty: 4 Grommet GTS $12.40
Location: 54 Prev | Next Part: 20106001 *Qty: 2 Rear gr.ommet GTS Call
Location: 55 Prev | Next Part: 60551400 *Qty: 2 Central grommet GTS $49.95
Location: 56 Prev | Next Part: 60336807 *Qty: 2 Front bracket GTS $58.17
Location: 57 Prev | Next Part: 61290200 *Qty: 1 Rough spoyler $1,551.88
Location: 57 Prev | Next Part: 61024700 *Qty: 1 Sleek spoyler $1,049.34
Location: 58 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 59 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 60 Prev | Next Part: 61741500 *Qty: 2 Braket $76.72
Location: 61 Prev | Next Part: 16104111 *Qty: 4 Nut Superseded
Location: 62 Prev | Next Part: 10902221 *Qty: 10 Screw $1.27
Location: 63 Prev | Next Part: 15896211 *Qty: 10 Nut Superseded
Location: 64 Prev | Next Part: 12643701 *Qty: 20 Washer Superseded
Location: 65 Prev | Next Part: 12646201 *Qty: 4 Washer $0.90
Location: 66 Prev | Next Part: 15688278 *Qty: 9 Screw Superseded
Location: 67 Prev | Next Part: 12642001 *Qty: 2 Washer $0.90
Location: 68 Prev | Next Part: 16043411 *Qty: 2 Screw $1.26
Location: 69 Prev | Next Part: 16104111 *Qty: 4 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
