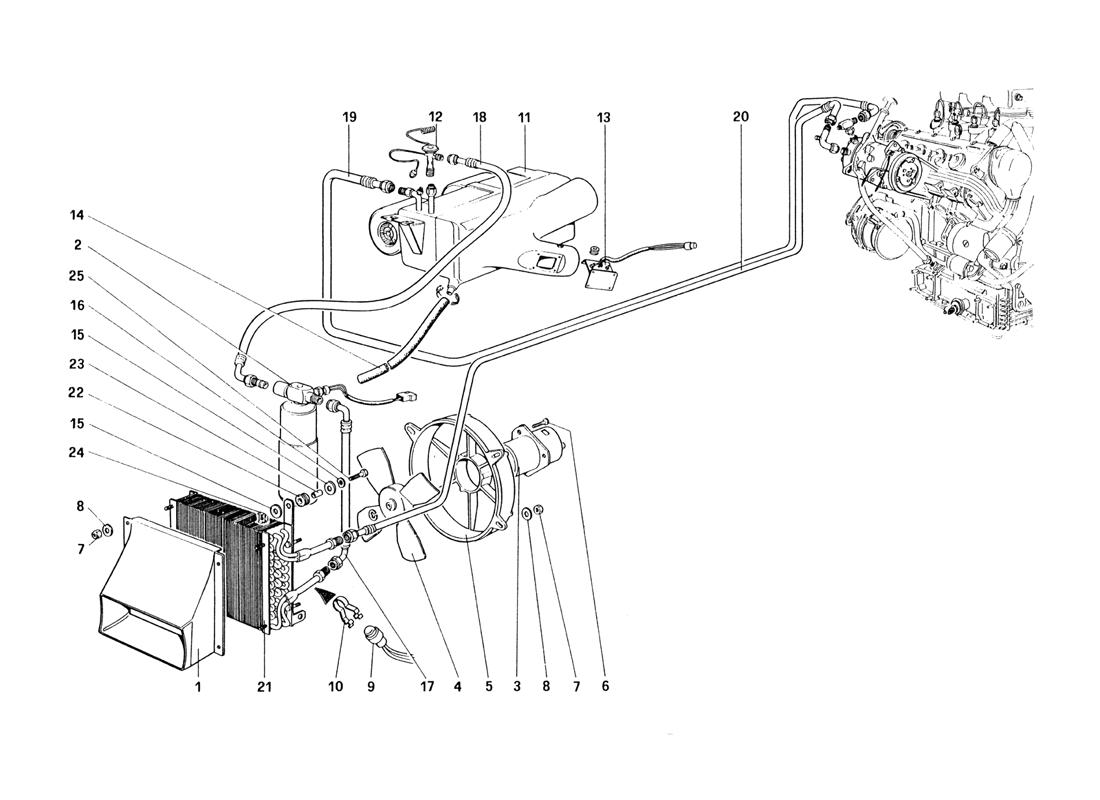

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61761000 *Qty: 1 Air inlet for condenser $508.24
Location: 2 Prev | Next Part: 114730 *Qty: 1 Dryer filter with pressostat
After exhaustion use PN 129101
Superseded
Location: 3 Prev | Next Part: 123136 *Qty: 1 Electro-fan motor Superseded
Location: 4 Prev | Next Part: 122963 *Qty: 1 Fan $109.10
Location: 5 Prev | Next Part: 60870300 *Qty: 1 Conveyor Call
Location: 6 Prev | Next Part: 123298 *Qty: 3 Screw $0.90
Location: 7 Prev | Next Part: 12574211 *Qty: 8 Nut Superseded
Location: 8 Prev | Next Part: 12644401 *Qty: 8 Washer Superseded
Location: 9 Prev | Next Part: 61047900 *Qty: 1 Bimetallic termoswitch $232.75
Location: 10 Prev | Next Part: 61942400 *Qty: 1 Clip $11.20
Location: 11 Prev | Next Part: 61859600 *Qty: 1 Evaporator unit R.H.D. Call
Location: 11 Prev | Next Part: 61830500 *Qty: 1 Evaporator unit L.H.D. Superseded
Location: 12 Prev | Next Part: 61742600 *Qty: 1 Expansion valve Call
Location: 13 Prev | Next Part: 126856 *Qty: 1 Power transistor Call
Location: 14 Prev | Next Part: 40166506 *Qty: 1 Condensate drain pipe Call
Location: 15 Prev | Next Part: 12643701 *Qty: 6 Washer Superseded
Location: 16 Prev | Next Part: 106850 *Qty: 3 Washer Superseded
Location: 17 Prev | Next Part: 61798100 *Qty: 1 Hose from condenser to dryer filter $248.65
Location: 18 Prev | Next Part: 114733 *Qty: 1 Hose from dryer filter to evaporator $138.68
Location: 19 Prev | Next Part: 110964 *Qty: 1 Hose from evaporator to compressor, L.H.D. $205.22
Location: 19 Prev | Next Part: 619142 *Qty: 1 Hose from evaporator to compressor, R.H.D. Call
Location: 20 Prev | Next Part: 106695 *Qty: 1 Hose - compressor to condensar Call
Location: 21 Prev | Next Part: 11739200 *Qty: 1 Condenser Call
Location: 22 Prev | Next Part: 103549 *Qty: 3 Busbing $0.42
Location: 23 Prev | Next Part: 103550 *Qty: 3 Spacer $2.55
Location: 24 Prev | Next Part: 60659100 *Qty: 3 Nut Superseded
Location: 25 Prev | Next Part: 10902521 *Qty: 3 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
