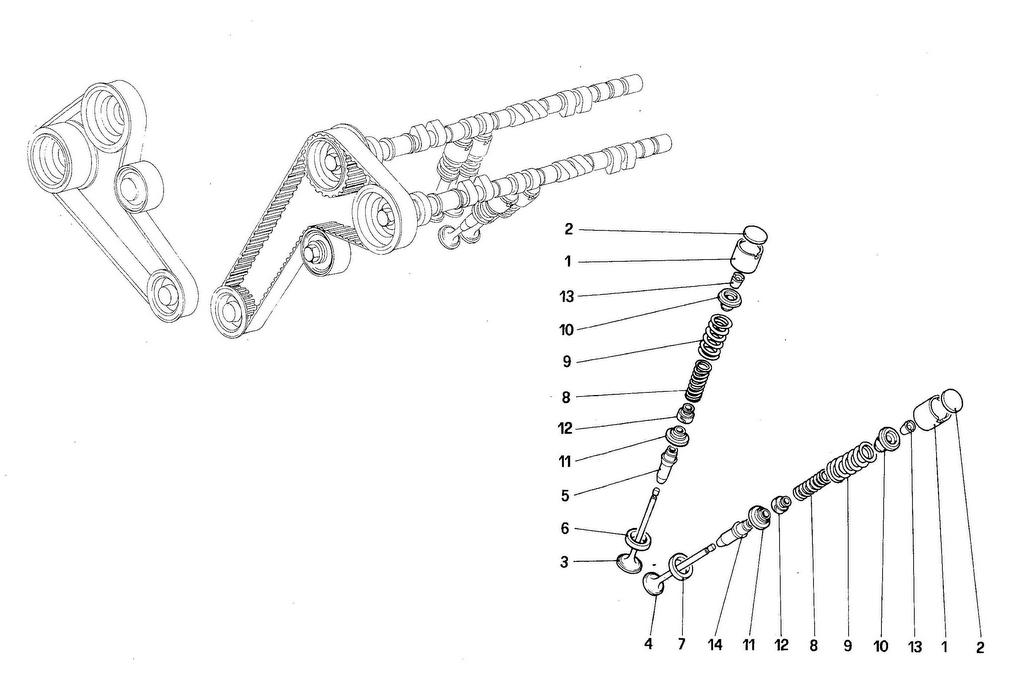

TIMING SYSTEM – TAPPETS

Go to Split View

TIMING SYSTEM – TAPPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117562 *Qty: 32 Tappet for valve control $132.68
Location: 2 Prev | Next Part: 117569 *Qty: 32 Shim for value adjusting. thickness 3.25 mm. $21.32
Location: - Prev | Next Part: 117570 *Qty: 32 Ditto thickness mm. 3.30 $21.32
Location: - Prev | Next Part: 117571 *Qty: 32 Ditto thickness mm. 3.35 $21.32
Location: - Prev | Next Part: 117572 *Qty: 32 Ditto thickness mm. 3.40 $21.32
Location: - Prev | Next Part: 117573 *Qty: 32 Ditto thickness mm. 3.45 $21.32
Location: - Prev | Next Part: 117574 *Qty: 32 Ditto thickness mm. 3.50 $21.32
Location: - Prev | Next Part: 117575 *Qty: 32 Ditto thickness mm. 3.55 $21.32
Location: - Prev | Next Part: 117576 *Qty: 32 Ditto thickness mm. 3.60 $21.32
Location: - Prev | Next Part: 117577 *Qty: 32 Ditto thickness mm. 3.65 $21.32
Location: - Prev | Next Part: 117578 *Qty: 32 Ditto thickness mm. 3.70 $21.32
Location: - Prev | Next Part: 117579 *Qty: 32 Ditto thickness mm. 3.75 $21.32
Location: - Prev | Next Part: 117580 *Qty: 32 Ditto thickness mm. 3.80 $21.32
Location: - Prev | Next Part: 117581 *Qty: 32 Ditto thickness mm. 3.85 $21.32
Location: - Prev | Next Part: 117582 *Qty: 32 Ditto thickness mm. 3.90 $21.32
Location: - Prev | Next Part: 117583 *Qty: 32 Ditto thickness mm. 3.95 $21.32
Location: - Prev | Next Part: 117584 *Qty: 32 Ditto thickness mm. 4.00 $21.32
Location: - Prev | Next Part: 117585 *Qty: 32 Ditto thickness mm. 4.05 $21.32
Location: - Prev | Next Part: 117586 *Qty: 32 Ditto thickness mm. 4.10 $21.32
Location: - Prev | Next Part: 117587 *Qty: 32 Ditto thickness mm. 4.15 $21.32
Location: - Prev | Next Part: 117588 *Qty: 32 Ditto. thickness 4.20 mm. $21.32
Location: - Prev | Next Part: 117589 *Qty: 32 Ditto. thickness 4.25 mm. $21.32
Location: - Prev | Next Part: 117590 *Qty: 32 Ditto. thickness 4.30 mm. $21.32
Location: - Prev | Next Part: 117591 *Qty: 32 Ditto. thickness 4.35 mm. $21.32
Location: - Prev | Next Part: 117592 *Qty: 32 Ditto. thickness 4.40 mm. $21.32
Location: - Prev | Next Part: 117593 *Qty: 32 Ditto. thickness 4.45 mm. $21.32
Location: - Prev | Next Part: 117594 *Qty: 32 Ditto. thickness 4.50 mm. $21.32
Location: - Prev | Next Part: 117595 *Qty: 32 Ditto. thickness 4.55 mm. $20.11
Location: - Prev | Next Part: 117596 *Qty: 32 Ditto. thickness 4.60 mm. $20.11
Location: 3 Prev | Next Part: 117363 *Qty: 16 Intake valve Superseded
Location: 4 Prev | Next Part: 117364 *Qty: 16 Exhaust valve Superseded
Location: 5 Prev | Next Part: 117563 *Qty: 16 Intake valve guide $102.21
Location: 6 Prev | Next Part: 111294 *Qty: 16 Intake valve seat $33.05
Location: 7 Prev | Next Part: 119171 *Qty: 16 Exhaust valve seat $31.02
Location: 8 Prev | Next Part: 117558 *Qty: 32 Inner spring for valve return $87.02
Location: 9 Prev | Next Part: 117559 *Qty: 32 Outer spring for valve return $36.93
Location: 10 Prev | Next Part: 117567 *Qty: 32 Upper cup for retaining spring $47.47
Location: 11 Prev | Next Part: 117568 *Qty: 32 Lower cup for retaining spring $7.32
Location: 12 Prev | Next Part: 119051 *Qty: 32 Oil retainer on valve guide Superseded
Location: 13 Prev | Next Part: 117283 *Qty: 64 Keeper $2.74
Location: 14 Prev | Next Part: 117565 *Qty: 16 Exhaust valve guide $104.10

* Quantity shown indicates the number of pieces used in the diagram.
