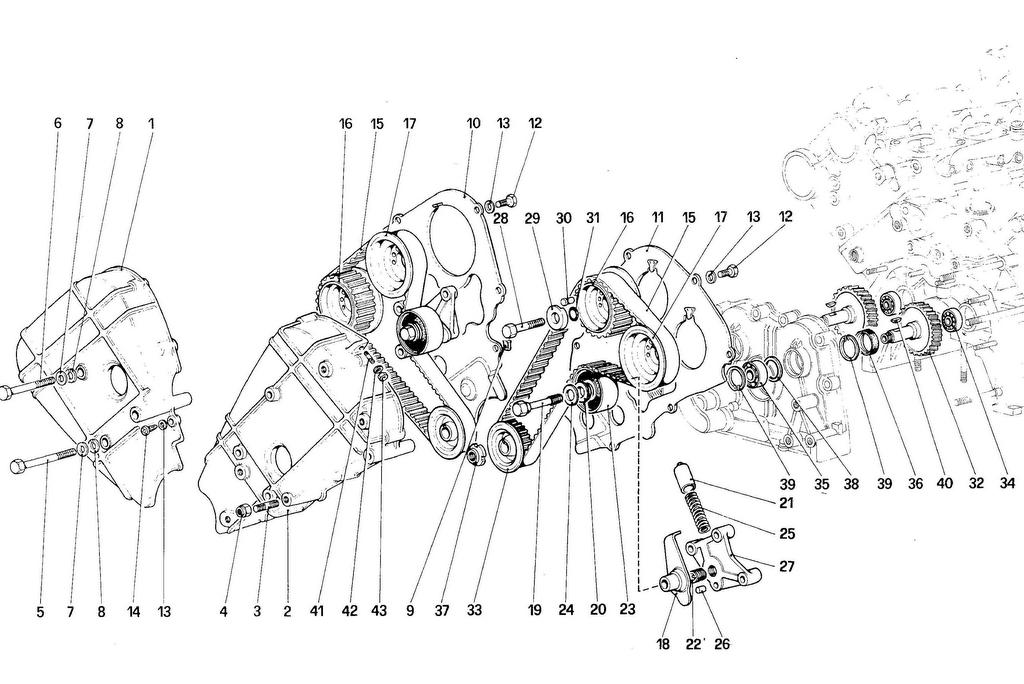

TIMING SYSTEM- CONTROLS

Go to Split View

TIMING SYSTEM- CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121653 *Qty: 1 Right cover $211.28
Location: - Prev | Next Part: 117438 *Qty: 0 Left cover. complete $399.24
Location: 2 Prev | Next Part: 117351 *Qty: 1 Left cover - With assembly no. 117438 Call
Location: 3 Prev | Next Part: 13546221 *Qty: 1 Stud Superseded
Location: 4 Prev | Next Part: 13598021 *Qty: 1 Nut $4.65
Location: 5 Prev | Next Part: 15972021 *Qty: 2 Screw - Assembly with single belt $1.36
Location: 5 Prev | Next Part: 121660 *Qty: 1 Screw - Assembly with 2 individual belts $70.19
Location: 6 Prev | Next Part: 109013 *Qty: 1 Screw $64.42
Location: 7 Prev | Next Part: 12638601 *Qty: 3 Washer $0.90
Location: 8 Prev | Next Part: 106853 *Qty: 3 Washer Superseded
Location: 9 Prev | Next Part: 60793500 *Qty: 1 Spring clip $1.01
Location: 10 Prev | Next Part: 117628 *Qty: 1 Protection right belt $302.07
Location: 11 Prev | Next Part: 117627 *Qty: 1 Protection left belt $302.07
Location: 12 Prev | Next Part: 10977711 *Qty: 12 Screw Superseded
Location: 13 Prev | Next Part: 12601171 *Qty: 13 Washer Superseded
Location: 14 Prev | Next Part: 15688502 *Qty: 1 Screw $1.34
Location: 15 Prev | Next Part: 111334 *Qty: 2 Timing belt $18.12
Location: 16 Prev | Next Part: 113097 *Qty: 2 Driver gear $465.62
Location: 17 Prev | Next Part: 113098 *Qty: 2 Driver gear $362.15
Location: 18 Prev | Next Part: 117256 *Qty: 2 Belt stretcher plate $417.62
Location: 19 Prev | Next Part: 111458 *Qty: 2 Screw $54.23
Location: 20 Prev | Next Part: 111460 *Qty: 2 Spacer Call
Location: 21 Prev | Next Part: 102819 *Qty: 2 Pin $123.45
Location: 22 Prev | Next Part: 13524670 *Qty: 2 Heli - coil $0.97
Location: 23 Prev | Next Part: 105206 *Qty: 2 Belt idler ring Superseded
Location: 24 Prev | Next Part: 102824 *Qty: 2 Washer $4.59
Location: 25 Prev | Next Part: 104148 *Qty: 2 Spring $39.75
Location: 26 Prev | Next Part: 10839610 *Qty: 2 Dowel pin Superseded
Location: 27 Prev | Next Part: 118153 *Qty: 1 Support for left belt stretcher Call
Location: - Prev | Next Part: 118152 *Qty: 1 Support for right belt stretcher $241.03
Location: 28 Prev | Next Part: 16326431 *Qty: 4 Screw Call
Location: 29 Prev | Next Part: 117274 *Qty: 4 Washer $4.36
Location: 30 Prev | Next Part: 106203 *Qty: 4 Dowel pin $8.86
Location: 31 Prev | Next Part: 114808 *Qty: 4 Sealing ring $5.67
Location: 32 Prev | Next Part: 121272 *Qty: 2 Drive gear for distributing shafts $372.10
Location: 33 Prev | Next Part: 121273 *Qty: 2 Driving pulley $370.81
Location: 34 Prev | Next Part: 121275 *Qty: 2 Bearing of crankcase $8.48
Location: 35 Prev | Next Part: 121274 *Qty: 2 Bearing on front cover $151.04
Location: 36 Prev | Next Part: 121276 *Qty: 2 Oil retaining $19.42
Location: 37 Prev | Next Part: 104919 *Qty: 2 Lock nut $7.00
Location: 38 Prev | Next Part: 121279 *Qty: 2 Washer $21.36
Location: 39 Prev | Next Part: 121277 *Qty: 4 Seeger $0.90
Location: 40 Prev | Next Part: 10206320 *Qty: 2 Tongue $1.96
Location: 41 Prev | Next Part: 11500121 *Qty: 1 Stud Superseded
Location: 42 Prev | Next Part: 12644421 *Qty: 1 Washer Superseded
Location: 43 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
