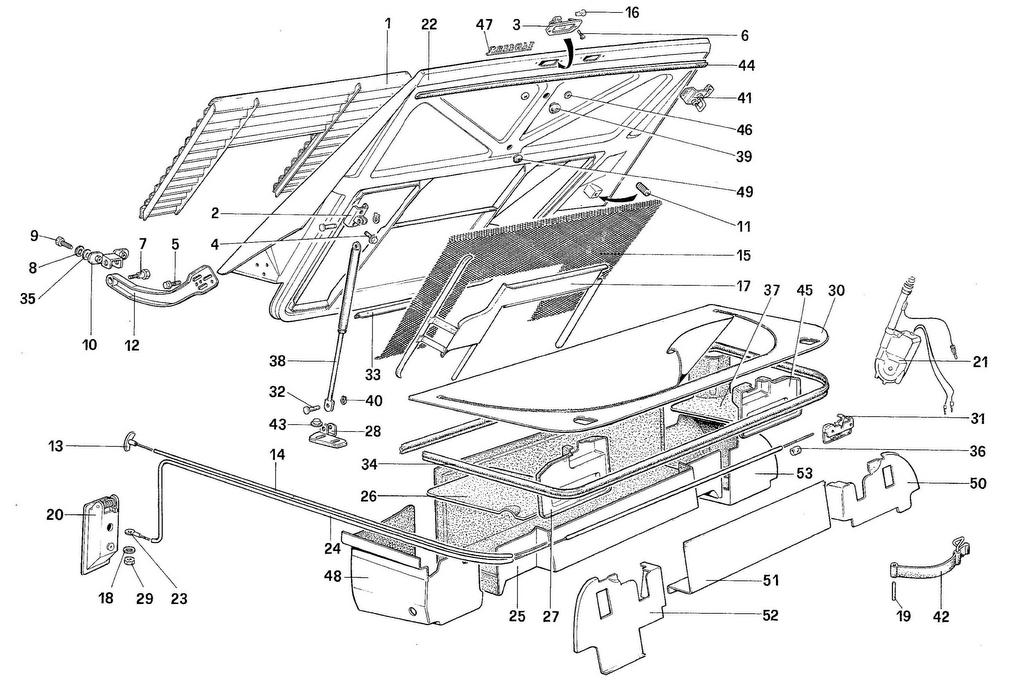

REAR BONNET AND LUGGAGE COMPARTMENT COVERKING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60427408 *Qty: 1 Bonnet grill Superseded
Location: 2 Prev | Next Part: 60597700 *Qty: 1 R.H. bracket $155.53
Location: - Prev | Next Part: 60597800 *Qty: 1 L.H. bracket Call
Location: 3 Prev | Next Part: 60044906 *Qty: 2 Number plate lamps Superseded
Location: 4 Prev | Next Part: 13835871 *Qty: 4 Screw $1.87
Location: 5 Prev | Next Part: 13838971 *Qty: 6 Screw Superseded
Location: 6 Prev | Next Part: 20297800 *Qty: 4 Screw $0.95
Location: 7 Prev | Next Part: 60017506 *Qty: 2 Pin. fulcrum $9.05
Location: 8 Prev | Next Part: 12646701 *Qty: 4 Washer Superseded
Location: 9 Prev | Next Part: 16043321 *Qty: 4 Screw $0.90
Location: 10 Prev | Next Part: 60257706 *Qty: 1 Fixed hinge. R.H. $41.43
Location: - Prev | Next Part: 60257805 *Qty: 1 Fixed hinge. L.H. $41.43
Location: 11 Prev | Next Part: 60568000 *Qty: 2 Rubber piece $2.88
Location: 12 Prev | Next Part: 60256807 *Qty: 1 Mobile hinge. R.H. $40.25
Location: - Prev | Next Part: 60256906 *Qty: 1 Mobile hinge. L.H. $44.67
Location: 13 Prev | Next Part: 60510500 *Qty: 1 Safety cable Call
Location: 14 Prev | Next Part: 60024502 *Qty: 1 Sheath. safety cable Call
Location: 15 Prev | Next Part: 60434603 *Qty: 1 Net under the grill Superseded
Location: 16 Prev | Next Part: 14145990 *Qty: 2 Lamp Call
Location: 17 Prev | Next Part: 60735800 *Qty: 1 Water shield panel Call
Location: 18 Prev | Next Part: 10615371 *Qty: 1 Washer $0.90
Location: 19 Prev | Next Part: 20103107 *Qty: 1 Pin $3.02
Location: 20 Prev | Next Part: 60086105 *Qty: 1 Bonnet handle Superseded
Location: 21 Prev | Next Part: 60871800 *Qty: 1 Radio aerial Superseded
Location: 22 Prev | Next Part: 61021100 *Qty: 1 Bonnet for spoiler Superseded
Location: - Prev | Next Part: 60525400 *Qty: 1 Bonnet standard $5,866.70
Location: 23 Prev | Next Part: 60277001 *Qty: 1 Emergency cable. opening bonnet $42.32
Location: 24 Prev | Next Part: 60024601 *Qty: 1 Sheath. bonnet cable Call
Location: 25 Prev | Next Part: 61422400 *Qty: 1 Carpet $378.98
Location: 26 Prev | Next Part: 61422600 *Qty: 1 Carpet $65.21
Location: 27 Prev | Next Part: 61138000 *Qty: 1 Carpet. L.H. $89.88
Location: 28 Prev | Next Part: 60597900 *Qty: 1 R.H. bracket $25.81
Location: - Prev | Next Part: 60598000 *Qty: 1 L.H. bracket $29.66
Location: 29 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 30 Prev | Next Part: 60114808 *Qty: 1 Trunk covering Call
Location: 31 Prev | Next Part: 60277407 *Qty: 2 Bonnet catch Call
Location: 32 Prev | Next Part: 60599500 *Qty: 4 Pin $17.71
Location: 33 Prev | Next Part: 60218906 *Qty: 1 Drip $31.24
Location: 34 Prev | Next Part: 60286200 *Qty: 1 Gasket Superseded
Location: 35 Prev | Next Part: 10615671 *Qty: 4 Washer $0.90
Location: 36 Prev | Next Part: 60276607 *Qty: 2 Clamp $41.57
Location: 37 Prev | Next Part: 61422500 *Qty: 1 Carpet R.H. $65.21
Location: 38 Prev | Next Part: 605928Q0 *Qty: 2 Support rod. bonnet Call
Location: 38 Prev | Next Part: 40134108 *Qty: 1 Plug $3.63
Location: 40 Prev | Next Part: 11087876 *Qty: 2 Seeger ring $0.90
Location: 41 Prev | Next Part: 60894000 *Qty: 2 Hook $70.64
Location: 42 Prev | Next Part: 20171005 *Qty: 1 Belt. fastening tool - kit $44.84
Location: 43 Prev | Next Part: 13832101 *Qty: 4 Nut $0.90
Location: 44 Prev | Next Part: 60564600 *Qty: 1 Gasket Call
Location: 45 Prev | Next Part: 61137900 *Qty: 1 Carpet. R.H. $22.34
Location: 46 Prev | Next Part: 60324506 *Qty: 3 Clip Superseded
Location: 47 Prev | Next Part: 61025000 *Qty: 1 Ferrari mark $72.52
Location: 48 Prev | Next Part: 61599900 *Qty: 1 Left carpet $152.14
Location: 49 Prev | Next Part: 14567487 *Qty: 1 Plug $0.90
Location: 50 Prev | Next Part: 61426000 *Qty: 1 Shieldpanel R.H. rear trunk $172.98
Location: 51 Prev | Next Part: 60432600 *Qty: 1 Central shieldpanel rear trunk Superseded
Location: 52 Prev | Next Part: 60766400 *Qty: 1 Sheldpanel L.H. rear trunk $148.51
Location: 53 Prev | Next Part: 61599800 *Qty: 1 Right carpet $169.12

* Quantity shown indicates the number of pieces used in the diagram.
