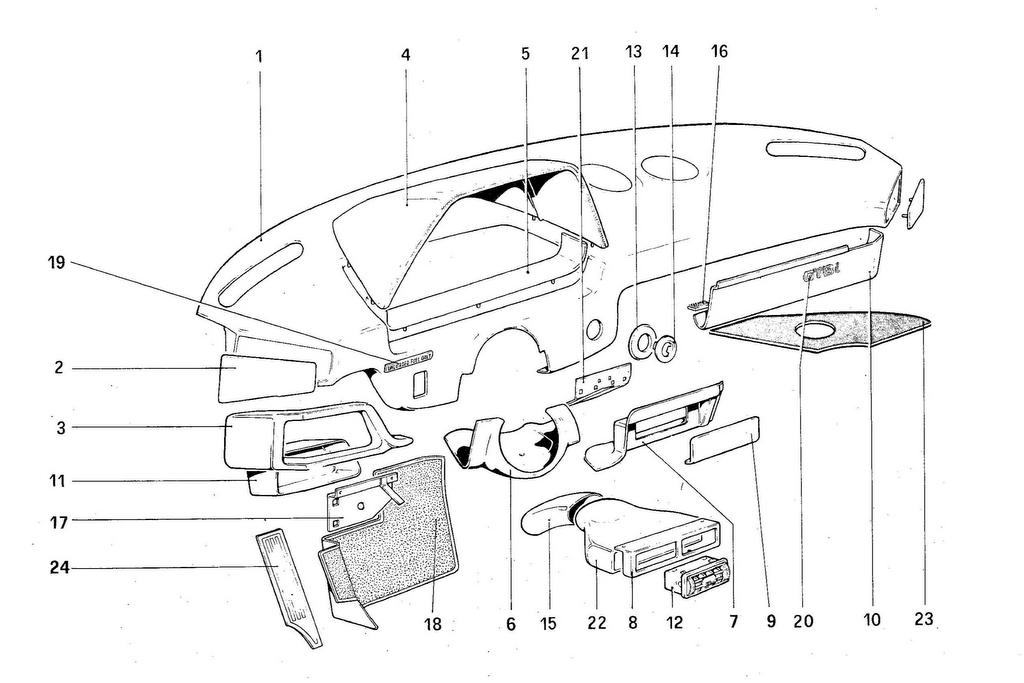

INSTRUMENT PANEL

Go to Split View

INSTRUMENT PANEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61421200 *Qty: 1 Instrument panel with covering $1,709.00
Location: - Prev | Next Part: 60068806 *Qty: 1 Covering $172.77
Location: 2 Prev | Next Part: 60069408 *Qty: 1 Moulding. R.H. with covering $106.00
Location: - Prev | Next Part: 60069507 *Qty: 1 Moulding. L.H. with covering $106.69
Location: - Prev | Next Part: 60069606 *Qty: 1 Covering $17.04
Location: 3 Prev | Next Part: 60752300 *Qty: 1 Glove box with covering $322.20
Location: 4 Prev | Next Part: 60066909 *Qty: 1 Dashboard visor with covering $505.67
Location: - Prev | Next Part: 60066800 *Qty: 1 Covering $145.46
Location: 5 Prev | Next Part: 60069804 *Qty: 1 Moulding with covering $211.39
Location: 6 Prev | Next Part: 60092103 *Qty: 1 Cover for steering column with covering $212.92
Location: 7 Prev | Next Part: 60068707 *Qty: 1 Radio board with covering $471.60
Location: - Prev | Next Part: 60068608 *Qty: 1 Covering $147.10
Location: 8 Prev | Next Part: 60375409 *Qty: 1 Conveyor A.C. Superseded
Location: 9 Prev | Next Part: 60146206 *Qty: 1 Shield for radio seat with covering Call
Location: 10 Prev | Next Part: 61133700 *Qty: 1 Lid for valves with covering GTB $187.01
Location: - Prev | Next Part: 61136000 *Qty: 1 Lid for valves with covering GTS $240.47
Location: - Prev | Next Part: 60078706 *Qty: 1 Outsider covering $69.58
Location: 11 Prev | Next Part: 60752600 *Qty: 1 Glove box L.H. with covering $52.99
Location: 12 Prev | Next Part: 60124302 *Qty: 2 Air outlet A.C. $88.02
Location: 13 Prev | Next Part: 60164100 *Qty: 1 Ring nut Call
Location: 14 Prev | Next Part: 60164009 *Qty: 1 Moulding for ignition key opening Superseded
Location: 15 Prev | Next Part: 60133204 *Qty: 1 Duct A.C. Call
Location: 16 Prev | Next Part: 50101708 *Qty: 4 Securing block Call
Location: 17 Prev | Next Part: 61106700 *Qty: 1 Support for blocks of mainswitch and wiper time $24.06
Location: 18 Prev | Next Part: 61352400 *Qty: 1 Carpet. under pedais GTB $54.86
Location: - Prev | Next Part: 61361300 *Qty: 1 Carpet. under pedals GTS $58.14
Location: 19 Prev | Next Part: 60406600 *Qty: 1 Fuel data plate without lead $17.52
Location: 20 Prev | Next Part: 61133300 *Qty: 1 GTB i mark $54.39
Location: - Prev | Next Part: 61136500 *Qty: 1 GTS i mark $48.80
Location: 21 Prev | Next Part: 60094109 *Qty: 1 Support for blocks of fuel system and instruments $19.85
Location: 22 Prev | Next Part: 60375201 *Qty: 1 Conveyor A.C. Call
Location: 23 Prev | Next Part: 60143609 *Qty: 1 Carpet. R.H. Call
Location: - Prev | Next Part: 60143708 *Qty: 1 Carpet. L.H. Call
Location: 24 Prev | Next Part: 61352500 *Qty: 1 Toeboard. GTB $145.46
Location: - Prev | Next Part: 61331400 *Qty: 1 Toeboard. GTS Call

* Quantity shown indicates the number of pieces used in the diagram.
