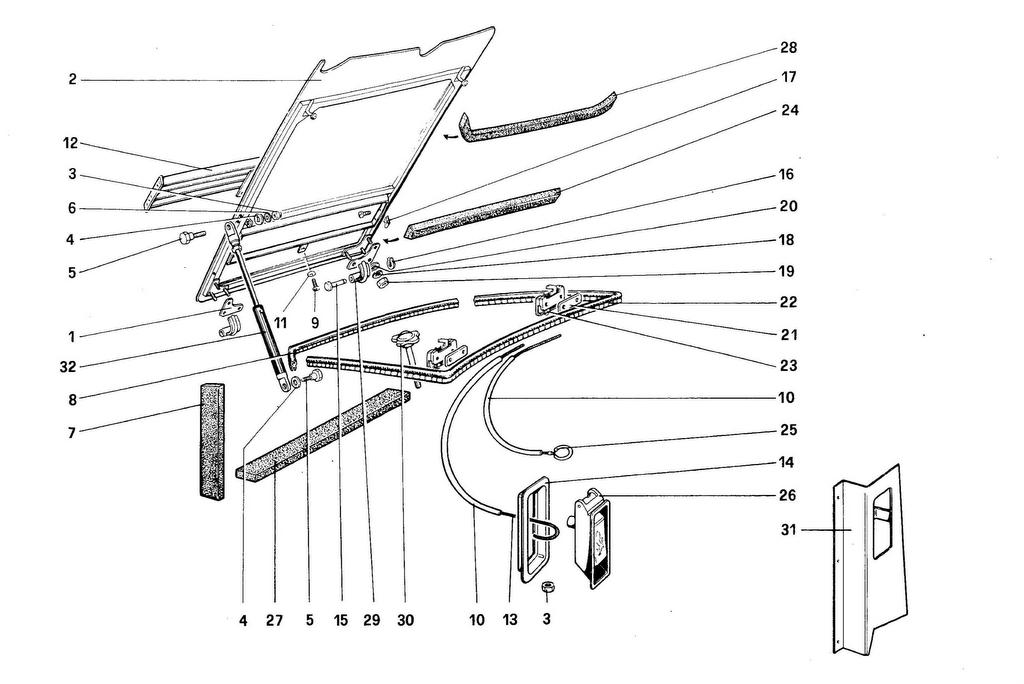

FRONT COMPARTMENT LID

Go to Split View

FRONT COMPARTMENT LID

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60275401 *Qty: 2 Hinge plate Superseded
Location: 2 Prev | Next Part: 61159900 *Qty: 1 Bonnet $536.87
Location: 3 Prev | Next Part: 15896411 *Qty: 2 Nut Superseded
Location: 4 Prev | Next Part: 12638101 *Qty: 2 Washer Superseded
Location: 5 Prev | Next Part: 40161903 *Qty: 2 Pin $18.00
Location: 6 Prev | Next Part: 10615371 *Qty: 1 Washer $0.90
Location: 7 Prev | Next Part: 60773500 *Qty: 2 Side gasket radiator $72.43
Location: 8 Prev | Next Part: 60428901 *Qty: 1 Gasket wheel carrier Call
Location: 9 Prev | Next Part: 20297800 *Qty: 5 Screw $0.97
Location: 10 Prev | Next Part: 60277209 *Qty: 2 Sheath. bonnet cables $8.89
Location: 11 Prev | Next Part: 60700900 *Qty: 1 Washer Superseded
Location: 12 Prev | Next Part: 60846400 *Qty: 1 Grill (on exhaustion use no. 612725) Superseded
Location: 13 Prev | Next Part: 60276904 *Qty: 1 Cable. bonnet handle Call
Location: 14 Prev | Next Part: 60765500 *Qty: 1 Flange bonnet handle GTB Call
Location: 15 Prev | Next Part: 60061504 *Qty: 2 Pin Superseded
Location: 16 Prev | Next Part: 60962400 *Qty: 2 Seeger Superseded
Location: 17 Prev | Next Part: 60679600 *Qty: 5 Strap $1.01
Location: 18 Prev | Next Part: 10516673 *Qty: 6 Screw Superseded
Location: 19 Prev | Next Part: 16100811 *Qty: 6 Nut Superseded
Location: 20 Prev | Next Part: 12646701 *Qty: 6 Screw Superseded
Location: 21 Prev | Next Part: 60276508 *Qty: 2 Place with threaded holes $12.84
Location: 22 Prev | Next Part: 60388204 *Qty: 1 Rear gasket bonnet Call
Location: 23 Prev | Next Part: 60277407 *Qty: 2 Bonnet catch Call
Location: 24 Prev | Next Part: 40150104 *Qty: 1 Upper gasket radiator Call
Location: 25 Prev | Next Part: 60277100 *Qty: 1 Safety cable $6.54
Location: 26 Prev | Next Part: 60297207 *Qty: 1 Handle bonnet Superseded
Location: 27 Prev | Next Part: 60773400 *Qty: 1 Lower gasket radiator $74.54
Location: 28 Prev | Next Part: 60422904 *Qty: 1 Gasket Call
Location: 29 Prev | Next Part: 60275302 *Qty: 2 Hinge arm $27.79
Location: 30 Prev | Next Part: 61609400 *Qty: 1 Wind nut $97.00
Location: 31 Prev | Next Part: 60640200 *Qty: 1 Handle support GTS $41.32
Location: 32 Prev | Next Part: 60118007 *Qty: 1 Support rod bonnet Superseded

* Quantity shown indicates the number of pieces used in the diagram.
