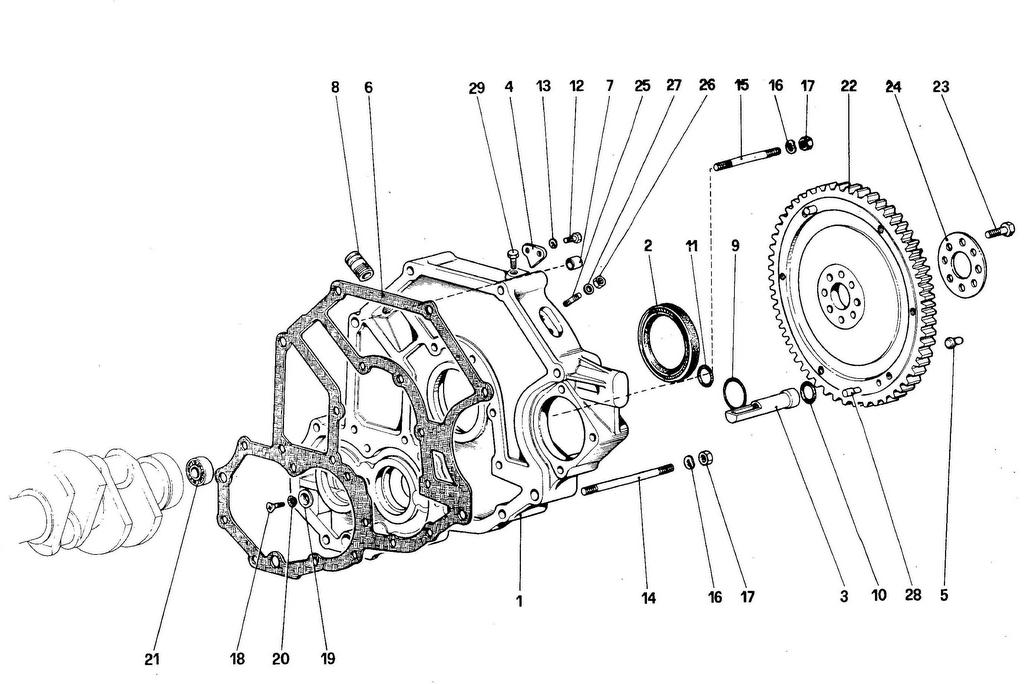

FLYWHEEL AND CLUTCH HOUSING SPACER

Go to Split View

FLYWHEEL AND CLUTCH HOUSING SPACER

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 120951 *Qty: 1 Intermediate body. complete $1,036.88
Location: 1 Prev | Next Part: 118687 *Qty: 1 Intermediate body With assembly n. 120951 Call
Location: 2 Prev | Next Part: 106244 *Qty: 1 Sealing ring As option to n. 40000230 Call
Location: 3 Prev | Next Part: 104035 *Qty: 1 Oil tube $43.24
Location: 4 Prev | Next Part: 114603 *Qty: 1 Plate. timing refer. $14.11
Location: 5 Prev | Next Part: 101535 *Qty: 3 Dowel $29.67
Location: 6 Prev | Next Part: 104202 *Qty: 1 Gasket Superseded
Location: 7 Prev | Next Part: 102692 *Qty: 1 Dowel $6.45
Location: 8 Prev | Next Part: 102705 *Qty: 1 Union $32.94
Location: 9 Prev | Next Part: 114947 *Qty: 1 Sealing ring $2.81
Location: 10 Prev | Next Part: 103775 *Qty: 1 Sealing ring $2.11
Location: 11 Prev | Next Part: 104214 *Qty: 1 Sealing ring $3.04
Location: 12 Prev | Next Part: 10977621 *Qty: 2 Screw Superseded
Location: 13 Prev | Next Part: 106849 *Qty: 2 Spring washer Superseded
Location: 14 Prev | Next Part: 104217 *Qty: 1 Long stud Call
Location: 15 Prev | Next Part: 13952421 *Qty: 1 Short stud $1.18
Location: 16 Prev | Next Part: 11198071 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 18 Prev | Next Part: 111213 *Qty: 1 Screw $0.90
Location: 19 Prev | Next Part: 108039 *Qty: 1 Washer $4.08
Location: 20 Prev | Next Part: 108041 *Qty: 1 Washer $0.90
Location: 21 Prev | Next Part: 103877 *Qty: 1 Bearing $33.34
Location: 22 Prev | Next Part: 118910 *Qty: 1 Engine flywheel $1,707.03
Location: 23 Prev | Next Part: 103875 *Qty: 8 Bolt Superseded
Location: 24 Prev | Next Part: 103876 *Qty: 1 Washer $12.53
Location: 25 Prev | Next Part: 13539021 *Qty: 6 Stud fixing sensor Superseded
Location: 26 Prev | Next Part: 15896411 *Qty: 6 Nut Superseded
Location: 27 Prev | Next Part: 106849 *Qty: 6 Washer Superseded
Location: 28 Prev | Next Part: 114769 *Qty: 2 Dowel $18.17
Location: 29 Prev | Next Part: 13825821 *Qty: 1 Screw Superseded

* Quantity shown indicates the number of pieces used in the diagram.
