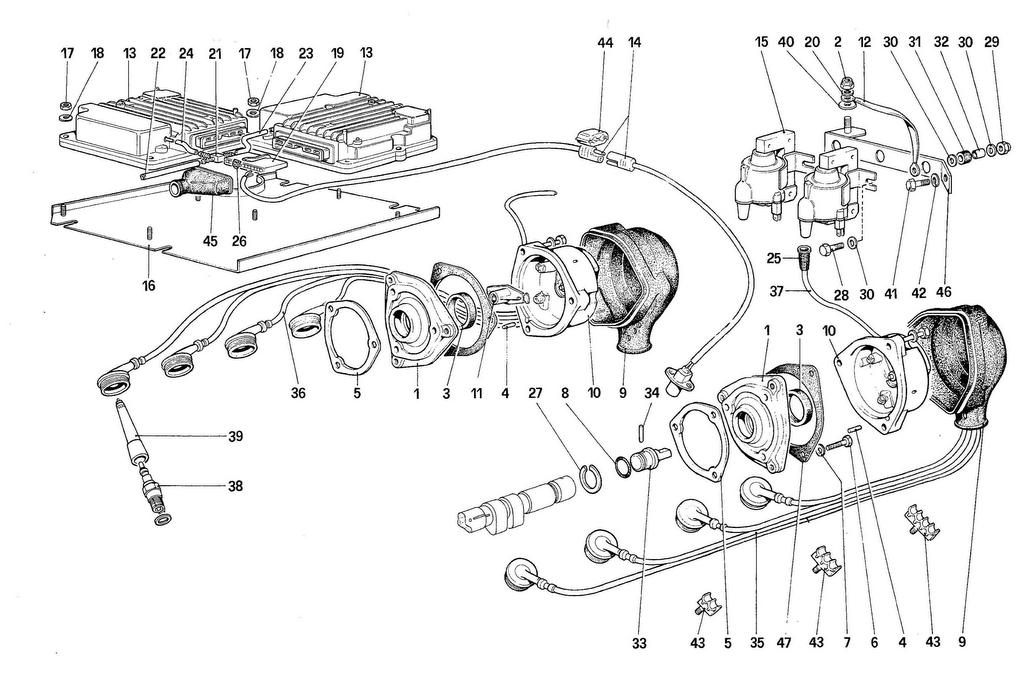

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119399 *Qty: 1 Cap distributor support $291.84
Location: 2 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 3 Prev | Next Part: 117293 *Qty: 2 Sealing ring $18.18
Location: 4 Prev | Next Part: 10331111 *Qty: 2 Dowel $0.90
Location: 5 Prev | Next Part: 117261 *Qty: 2 Gasket Superseded
Location: 6 Prev | Next Part: 10902321 *Qty: 2 Screw Superseded
Location: 7 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 8 Prev | Next Part: 109478 *Qty: 2 Sealing ring $6.42
Location: 9 Prev | Next Part: 118889 *Qty: 2 Distributor boot $42.74
Location: 10 Prev | Next Part: 115518 *Qty: 2 Distributor cap Call
Location: 11 Prev | Next Part: 124288 *Qty: 2 Rotor arm $46.12
Location: 12 Prev | Next Part: 115648 *Qty: 1 Copper braid for ignition coil earth $5.85
Location: 13 Prev | Next Part: 118961 *Qty: 2 Electronic ignition module $1,700.00
Location: 14 Prev | Next Part: 119052 *Qty: 3 Electromagnetic sensor $145.00
Location: 15 Prev | Next Part: 115013 *Qty: 2 Coils $245.78
Location: 16 Prev | Next Part: 115597 *Qty: 1 Plate $105.52
Location: 17 Prev | Next Part: 12574211 *Qty: 6 Nut Superseded
Location: 18 Prev | Next Part: 12639701 *Qty: 6 Washer Call
Location: 19 Prev | Next Part: 115598 *Qty: 2 11 way block $25.91
Location: 20 Prev | Next Part: 10615471 *Qty: 1 Washer $0.90
Location: 21 Prev | Next Part: 107440 *Qty: 1 3 way union $3.73
Location: 22 Prev | Next Part: 115665 *Qty: 1 Tube from 3 way union to air delivery body $46.44
Location: 23 Prev | Next Part: 115666 *Qty: 1 Rubber hose $22.31
Location: 24 Prev | Next Part: 115149 *Qty: 1 Rubber hose $41.16
Location: 25 Prev | Next Part: 12056986 *Qty: 2 Boot $1.17
Location: 26 Prev | Next Part: 60909700 *Qty: 2 Small clip of security $1.32
Location: 27 Prev | Next Part: 119484 *Qty: 2 Centrifuger ring $0.90
Location: 28 Prev | Next Part: 10902621 *Qty: 3 Screw Superseded
Location: 29 Prev | Next Part: 12575411 *Qty: 3 Nut Superseded
Location: 30 Prev | Next Part: 12643701 *Qty: 9 Washer Superseded
Location: 31 Prev | Next Part: 103549 *Qty: 2 Bush. vibration-damping $1.61
Location: 32 Prev | Next Part: 103550 *Qty: 3 Spacer $2.55
Location: 33 Prev | Next Part: 117934 *Qty: 2 Coupling Call
Location: 34 Prev | Next Part: 13899970 *Qty: 2 Pin $0.90
Location: 35 Prev | Next Part: 118826 *Qty: 1 Cables. left spark plugs $325.95
Location: 36 Prev | Next Part: 118827 *Qty: 1 Cables. right spark plugs $325.95
Location: 37 Prev | Next Part: 119356 *Qty: 2 Cable. distributor - coil $56.81
Location: 38 Prev | Next Part: 119492 *Qty: 8 Spark plug CHAMPION N 6 GY Superseded
Location: 38 Prev | Next Part: 117599 *Qty: 8 Spark plug BOSCH W 6 0S Superseded
Location: 39 Prev | Next Part: 115647 *Qty: 8 Extension $29.50
Location: 40 Prev | Next Part: 12644401 *Qty: 1 Washer Superseded
Location: 41 Prev | Next Part: 10902021 *Qty: 1 Bolt Superseded
Location: 42 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 43 Prev | Next Part: 121788 *Qty: 5 Small clip for cables support $11.24
Location: - Prev | Next Part: 121789 *Qty: 2 Small clip for cables support $7.42
Location: - Prev | Next Part: 121790 *Qty: 2 Small clip for cables support $11.57
Location: 44 Prev | Next Part: 117429 *Qty: 1 Cover (red) for sensor P.M. 5-8 $1.29
Location: - Prev | Next Part: 117430 *Qty: 1 Cover (white) for sensor P.M. 1-4 $8.93
Location: 45 Prev | Next Part: 115550 *Qty: 2 Protection cover for small block $13.31
Location: 46 Prev | Next Part: 119169 *Qty: 1 Bracket for coil $49.49
Location: 47 Prev | Next Part: 119409 *Qty: 2 Gasket $5.32

* Quantity shown indicates the number of pieces used in the diagram.
