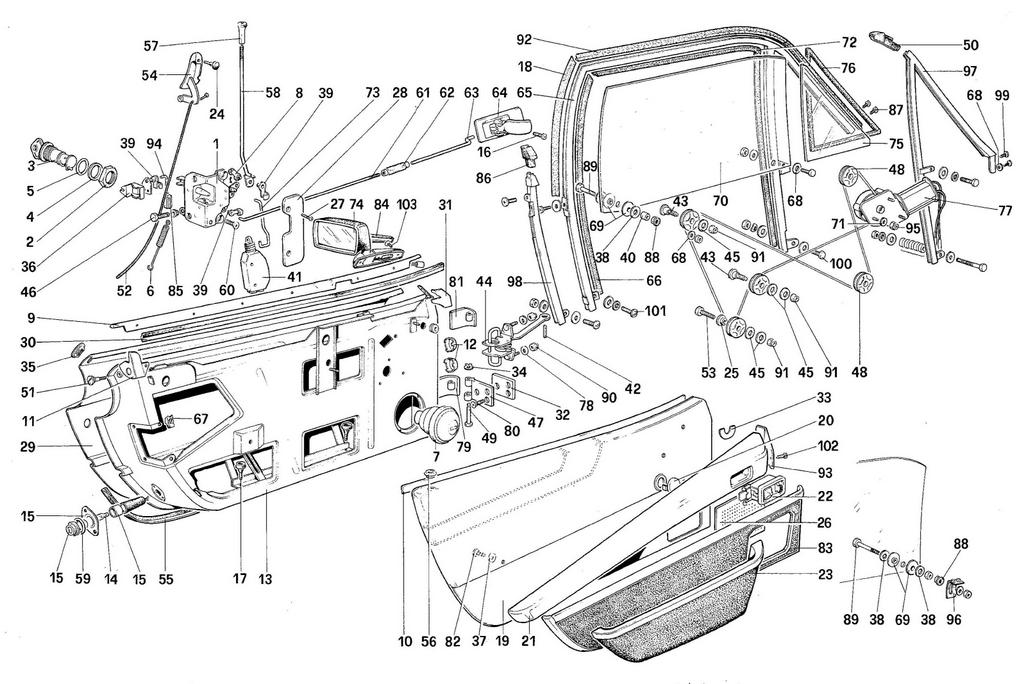

DOORS

Go to Split View

DOORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 20170809 *Qty: 1 Door lock. R.H. Call
Location: - Prev | Next Part: 20170908 *Qty: 1 Door lock. L.H. Call
Location: 2 Prev | Next Part: 20063202 *Qty: 2 Ring nut $10.27
Location: 3 Prev | Next Part: 20035606 *Qty: 1 Block. R.H. door lock Superseded
Location: - Prev | Next Part: 20035705 *Qty: 1 Block. L.H. door lock Superseded
Location: 4 Prev | Next Part: 20035804 *Qty: 2 Spacer $4.21
Location: 5 Prev | Next Part: 20181103 *Qty: 2 Gasket $4.55
Location: 6 Prev | Next Part: 60046000 *Qty: 2 Return spring. handle $3.86
Location: 7 Prev | Next Part: 60870900 *Qty: 2 Loud - speaker Call
Location: 8 Prev | Next Part: 60813500 *Qty: 2 Clip Superseded
Location: 9 Prev | Next Part: 60415106 *Qty: 1 R.H. moulding Superseded
Location: - Prev | Next Part: 60415205 *Qty: 1 L.H. moulding Superseded
Location: 10 Prev | Next Part: 60136207 *Qty: 2 Inner gasket Superseded
Location: 11 Prev | Next Part: 60269206 *Qty: 1 Rear R.H. moulding. GTB $27.55
Location: - Prev | Next Part: 60601900 *Qty: 1 Rear R.H. moulding. GTS $56.12
Location: - Prev | Next Part: 60269305 *Qty: 1 Rear L.H. moulding. GTB $27.55
Location: - Prev | Next Part: 60602000 *Qty: 1 Rear L.H. moulding. GTS $18.45
Location: 12 Prev | Next Part: 40127409 *Qty: 3 Plug $6.30
Location: 13 Prev | Next Part: 61420000 *Qty: 1 R.H. door with items 29-79-81 GTB $3,195.02
Location: - Prev | Next Part: 61420200 *Qty: 1 R.H. door with items 29-79-81 GTS $3,195.02
Location: - Prev | Next Part: 61420100 *Qty: 1 L.H. door with items 29-79-81 GTB $3,195.02
Location: - Prev | Next Part: 61420300 *Qty: 1 L.H. door with items 29-79-81 GTS $3,195.02
Location: 14 Prev | Next Part: 101525 *Qty: 2 Lamp Call
Location: 15 Prev | Next Part: 60291200 *Qty: 2 Open - door marker light Call
Location: 16 Prev | Next Part: 15903902 *Qty: 2 Screw $0.90
Location: 17 Prev | Next Part: 40195703 *Qty: 4 Limit block for glass Call
Location: 18 Prev | Next Part: 60278405 *Qty: 2 Gasket GTB $101.40
Location: 19 Prev | Next Part: 61428400 *Qty: 1 Inner panel. R.H. with covering $1,030.30
Location: - Prev | Next Part: 60746600 *Qty: 1 Covering. R.H. $776.28
Location: - Prev | Next Part: 61428500 *Qty: 1 Inner panel. L.H. with covering $1,030.30
Location: - Prev | Next Part: 60746700 *Qty: 1 Covering. L.H. $776.30
Location: 20 Prev | Next Part: 30063101 *Qty: 2 Plug Call
Location: 21 Prev | Next Part: 61269400 *Qty: 1 Armrest. R.H. with covering $635.03
Location: - Prev | Next Part: 60067402 *Qty: 1 Covering. R.H. $91.99
Location: - Prev | Next Part: 61269500 *Qty: 1 Armrest. L.H. with covering $635.03
Location: - Prev | Next Part: 60067501 *Qty: 1 Covering. L.H. $95.96
Location: 22 Prev | Next Part: 61111300 *Qty: 1 Control switch for outside mirror Call
Location: 23 Prev | Next Part: 60803800 *Qty: 1 Pocket. R.H. with covering $678.22
Location: - Prev | Next Part: 60753000 *Qty: 1 Covering. R.H. $84.06
Location: - Prev | Next Part: 60803900 *Qty: 1 Pocket. L.H. with covering $678.22
Location: - Prev | Next Part: 60753100 *Qty: 1 Covering L.H. $84.06
Location: 24 Prev | Next Part: 20043808 *Qty: 2 Rubber GTB Superseded
Location: - Prev | Next Part: 61083900 *Qty: 2 Rubber GTS $0.90
Location: 25 Prev | Next Part: 60441607 *Qty: 4 Bushing $20.30
Location: 26 Prev | Next Part: 61173600 *Qty: 1 Moulding. R.H. loud speaker Superseded
Location: - Prev | Next Part: 61430600 *Qty: 1 Moulding. L.H. loud speaker Superseded
Location: 27 Prev | Next Part: 15908502 *Qty: 4 Screw for lock moulding $0.90
Location: 28 Prev | Next Part: 60304805 *Qty: 1 Moulding on R.H. lock Call
Location: - Prev | Next Part: 60304904 *Qty: 1 Moulding on L.H. lock Call
Location: 29 Prev | Next Part: 60214004 *Qty: 1 Outer covering. R.H. GTB $875.50
Location: - Prev | Next Part: 60649200 *Qty: 1 Outer covering. R.H. GTS Call
Location: - Prev | Next Part: 60214103 *Qty: 1 Outer covering. L.H. GTB $874.34
Location: - Prev | Next Part: 60649300 *Qty: 1 Outer covering. L.H. GTS $873.17
Location: 30 Prev | Next Part: 60827500 *Qty: 1 Outsider gasket. R.H. Call
Location: - Prev | Next Part: 60827600 *Qty: 1 Outsider gasket. L.H. Call
Location: 31 Prev | Next Part: 60269008 *Qty: 1 Front R.H. moulding GTB Call
Location: - Prev | Next Part: 60602100 *Qty: 1 Front R.H. moulding GTS $15.40
Location: - Prev | Next Part: 60269107 *Qty: 1 Front L.H. moulding GTB $22.42
Location: - Prev | Next Part: 60602200 *Qty: 1 Front L.H. moulding GTS $17.97
Location: 32 Prev | Next Part: 60269404 *Qty: 4 Fixing plate for fixed hinge $21.01
Location: 33 Prev | Next Part: 60138807 *Qty: 1 R.H. moulding for inner handle $75.19
Location: - Prev | Next Part: 60138906 *Qty: 1 L.H. moulding for inner handle $75.19
Location: 34 Prev | Next Part: 11065775 *Qty: 2 Seeger ring Call
Location: 35 Prev | Next Part: 60567000 *Qty: 2 Gasket. handle seat Superseded
Location: 36 Prev | Next Part: 60606500 *Qty: 1 R.H. block $2.80
Location: - Prev | Next Part: 60606600 *Qty: 1 L.H. block $3.04
Location: 37 Prev | Next Part: 106849 *Qty: 2 Washer Superseded
Location: 38 Prev | Next Part: 12640601 *Qty: 8 Washer Superseded
Location: 39 Prev | Next Part: 40063208 *Qty: 8 Clip. lower safety rod Call
Location: 40 Prev | Next Part: 60441409 *Qty: 4 Spacer $4.66
Location: 41 Prev | Next Part: 61329400 *Qty: 1 Locking device. R.H. door Call
Location: - Prev | Next Part: 61329500 *Qty: 1 Locking device. L.H. door Call
Location: 42 Prev | Next Part: 60730200 *Qty: 2 Pin Superseded
Location: 43 Prev | Next Part: 60078805 *Qty: 6 Pin for upper pulleys $6.54
Location: 44 Prev | Next Part: 61260800 *Qty: 2 Tie rod Superseded
Location: 45 Prev | Next Part: 12644401 *Qty: 16 Washer Superseded
Location: 46 Prev | Next Part: 60088705 *Qty: 2 Special screw for cable $2.46
Location: 47 Prev | Next Part: 60251204 *Qty: 4 Fixed hinge Superseded
Location: 48 Prev | Next Part: 60056306 *Qty: 10 Pulley GTB Call
Location: - Prev | Next Part: 60398807 *Qty: 10 Pulley GTS Call
Location: 49 Prev | Next Part: 20074100 *Qty: 4 Pin for hinge Superseded
Location: 50 Prev | Next Part: 60265808 *Qty: 1 Upper R.H. terminal GTS $50.00
Location: - Prev | Next Part: 60265907 *Qty: 1 Upper L.H. terminal GTS $48.07
Location: 51 Prev | Next Part: 60273901 *Qty: 2 Pin $18.41
Location: 52 Prev | Next Part: 60116803 *Qty: 2 Cable for door handle Call
Location: 53 Prev | Next Part: 14141410 *Qty: 4 Pin for lower fixed pulleys GTB $0.90
Location: - Prev | Next Part: 10902421 *Qty: 4 Pin for lower fixed pulleys GTS Superseded
Location: 54 Prev | Next Part: 60271004 *Qty: 1 Outsider handle. R.H. $134.48
Location: - Prev | Next Part: 60271103 *Qty: 1 Outsider handle. L.H. Call
Location: 55 Prev | Next Part: 60159605 *Qty: 2 Lower gasket $21.49
Location: 56 Prev | Next Part: 40162307 *Qty: 2 Bushing for safety rod Call
Location: 57 Prev | Next Part: 20170403 *Qty: 2 Knob for safety rod Call
Location: 58 Prev | Next Part: 60803000 *Qty: 1 Safety rod. upper. R.H. $28.95
Location: - Prev | Next Part: 61384800 *Qty: 1 Safety rod. upper. L.H. $22.18
Location: 59 Prev | Next Part: 60591000 *Qty: 2 Gasket Call
Location: 60 Prev | Next Part: 20298303 *Qty: 8 Screw $1.51
Location: 61 Prev | Next Part: 40132706 *Qty: 2 Rear half rod $43.19
Location: 62 Prev | Next Part: 60088606 *Qty: 2 Sleeve $3.00
Location: 63 Prev | Next Part: 60305208 *Qty: 2 Front half rod $7.01
Location: 64 Prev | Next Part: 60035607 *Qty: 2 Door handle. inside $140.42
Location: 65 Prev | Next Part: 61443500 *Qty: 1 R.H. glass frame. GTB $1,684.49
Location: - Prev | Next Part: 61443600 *Qty: 1 L.H. glass frame. GTB $1,535.06

* Quantity shown indicates the number of pieces used in the diagram.
