CRANKCASE

Go to Split View

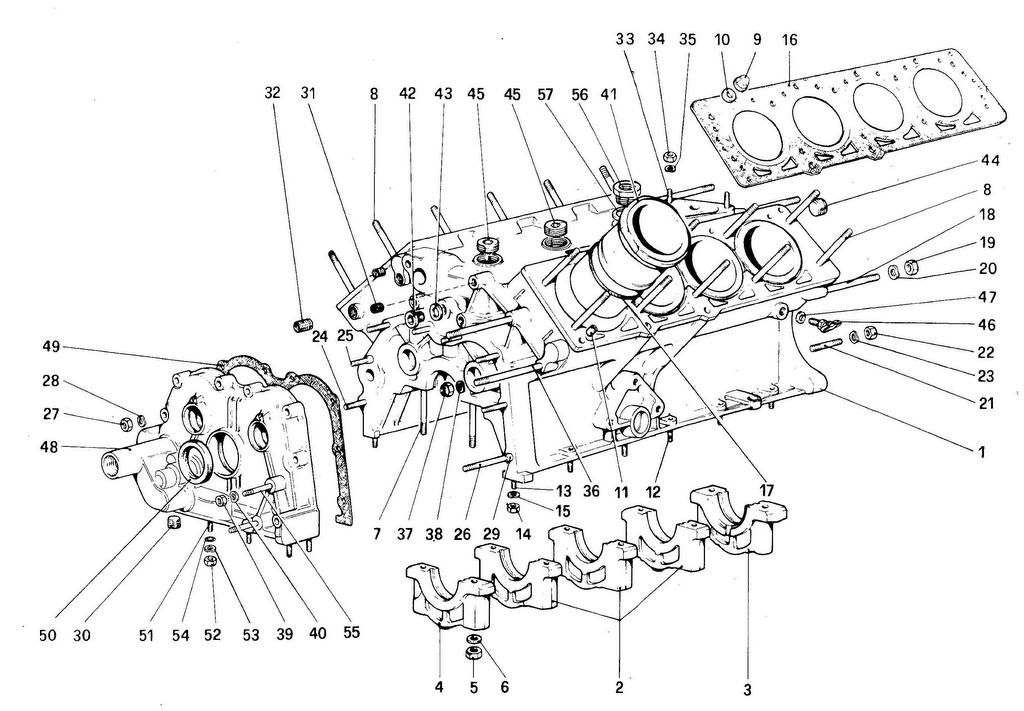

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 121706 *Qty: 1 Crankcase . complete $5,722.33
Location: 1 Prev | Next Part: 121707 *Qty: 0 Crankcase (with assembly no. 121706) Call
Location: 2 Prev | Next Part: 103764 *Qty: 3 Cap for intermediate support With crankcase complete Call
Location: 3 Prev | Next Part: 103765 *Qty: 1 Cap for rear support With Crankcase complete Call
Location: 4 Prev | Next Part: 103766 *Qty: 1 Cap for front support With Crankcase complete Call
Location: 5 Prev | Next Part: 103841 *Qty: 10 Nut Superseded
Location: 6 Prev | Next Part: 103842 *Qty: 10 Washer $3.84
Location: 7 Prev | Next Part: 104075 *Qty: 10 Stud $14.86
Location: 8 Prev | Next Part: 111591 *Qty: 20 Stud Superseded
Location: 9 Prev | Next Part: 100101 *Qty: 20 Cap nut $75.08
Location: 10 Prev | Next Part: 100100 *Qty: 20 Washer $2.11
Location: 11 Prev | Next Part: 118317 *Qty: 4 Dowel $11.20
Location: 12 Prev | Next Part: 13543621 *Qty: 6 Stud Superseded
Location: 13 Prev | Next Part: 12354521 *Qty: 2 Stud Superseded
Location: - Prev | Next Part: 13543321 *Qty: 1 Right rear stud securing gearbox Superseded
Location: 14 Prev | Next Part: 16100811 *Qty: 9 Nut Superseded
Location: 15 Prev | Next Part: 11190871 *Qty: 9 Washer Call
Location: 16 Prev | Next Part: 117515 *Qty: 2 Gasket Superseded
Location: 17 Prev | Next Part: 110021 *Qty: 8 Sealing ring $9.46
Location: 18 Prev | Next Part: 13953521 *Qty: 5 Stud $9.45
Location: 19 Prev | Next Part: 12164711 *Qty: 5 Nut Superseded
Location: 20 Prev | Next Part: 12601471 *Qty: 5 Washer Superseded
Location: 21 Prev | Next Part: 11500621 *Qty: 6 Stud $0.90
Location: 22 Prev | Next Part: 15896211 *Qty: 6 Nut Superseded
Location: 23 Prev | Next Part: 11197771 *Qty: 6 Washer Superseded
Location: 24 Prev | Next Part: 13517321 *Qty: 6 Stud Superseded
Location: 25 Prev | Next Part: 13517421 *Qty: 1 Stud $41.97
Location: 26 Prev | Next Part: 13952521 *Qty: 1 Stud $0.90
Location: 27 Prev | Next Part: 16104411 *Qty: 8 Nut $0.90
Location: 28 Prev | Next Part: 12601371 *Qty: 8 Washer Superseded
Location: 29 Prev | Next Part: 102704 *Qty: 2 Dowel $2.24
Location: 30 Prev | Next Part: 14326150 *Qty: 1 Plug $0.90
Location: 31 Prev | Next Part: 13525770 *Qty: 4 Heli - coil securing water pump $1.11
Location: 32 Prev | Next Part: 13526070 *Qty: 2 Heli - coil securing cover $4.58
Location: 33 Prev | Next Part: 13517221 *Qty: 3 Stud for oil filter base Superseded
Location: 34 Prev | Next Part: 16104411 *Qty: 3 Self locking nut $0.90
Location: 35 Prev | Next Part: 12601371 *Qty: 3 Washer Superseded
Location: 36 Prev | Next Part: 115237 *Qty: 2 Stud securing left cover and compressor support Call
Location: 37 Prev | Next Part: 12575621 *Qty: 2 Selflocking nut Superseded
Location: 38 Prev | Next Part: 107993 *Qty: 2 Washer $1.94
Location: 39 Prev | Next Part: 16104411 *Qty: 2 Nut $0.90
Location: 40 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 41 Prev | Next Part: 119536 *Qty: 8 Cylinder barrel Call
Location: 42 Prev | Next Part: 10275001 *Qty: 2 Plug Superseded
Location: 43 Prev | Next Part: 10263460 *Qty: 2 Gasket Superseded
Location: 44 Prev | Next Part: 10269850 *Qty: 2 Rear plug $2.37
Location: 45 Prev | Next Part: 10269950 *Qty: 2 Upper plug Call
Location: 46 Prev | Next Part: 103948 *Qty: 1 Cock. water drain $123.06
Location: 46 Prev | Next Part: 10300640 *Qty: 1 Plug. water drain (on exhaustion no. 103948) Call
Location: 47 Prev | Next Part: 10280060 *Qty: 1 Gasket $0.90
Location: - Prev | Next Part: 121289 *Qty: 1 Front cover complete (with complete crankcase) Call
Location: 48 Prev | Next Part: 121271 *Qty: 1 Front cover (With complete cover) Call
Location: 49 Prev | Next Part: 103791 *Qty: 1 Gasket Superseded
Location: 50 Prev | Next Part: 108224 *Qty: 1 Sealing ring $24.35
Location: 51 Prev | Next Part: 12354521 *Qty: 6 Stud Superseded
Location: 52 Prev | Next Part: 16100811 *Qty: 6 Nut Superseded
Location: 53 Prev | Next Part: 11198071 *Qty: 6 Washer Superseded
Location: 54 Prev | Next Part: 103039 *Qty: 1 Sealing ring $1.18
Location: 55 Prev | Next Part: 13543621 *Qty: 2 Stud Superseded
Location: 56 Prev | Next Part: 115245 *Qty: 1 Union for thermal switch $32.21
Location: 57 Prev | Next Part: 10296260 *Qty: 1 Gasket $0.90

* Quantity shown indicates the number of pieces used in the diagram.
